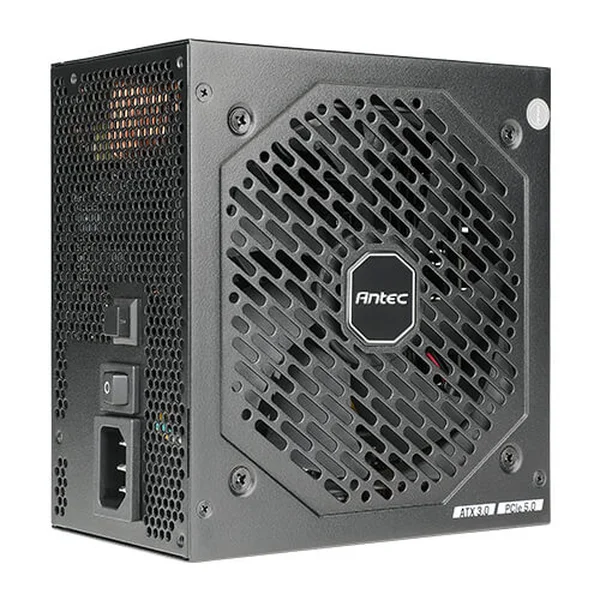

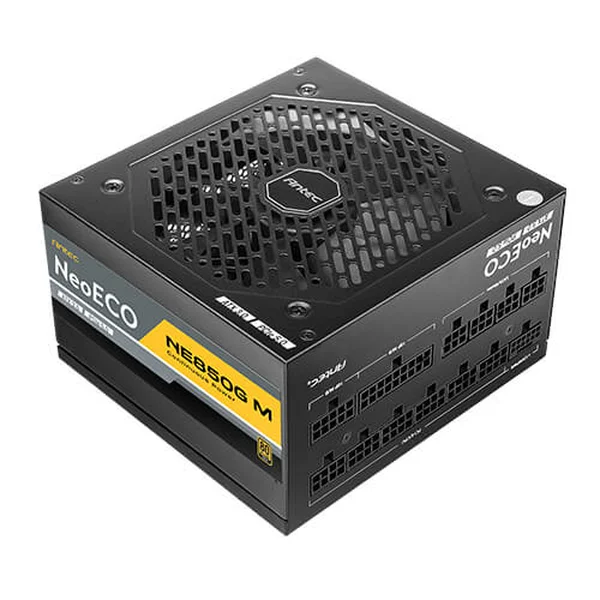

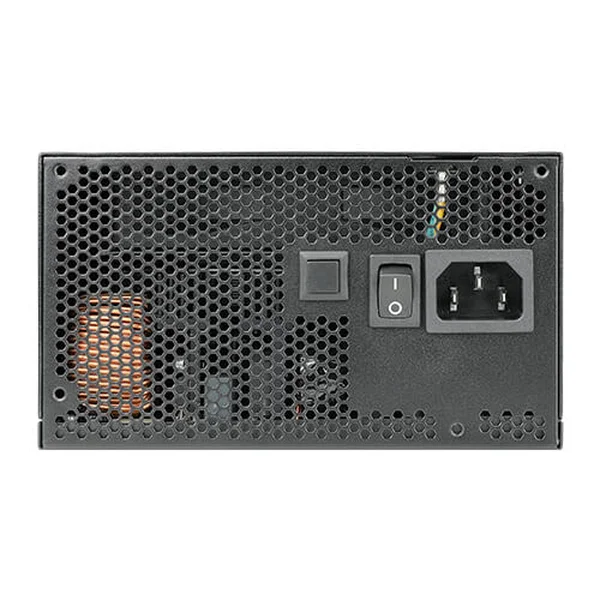

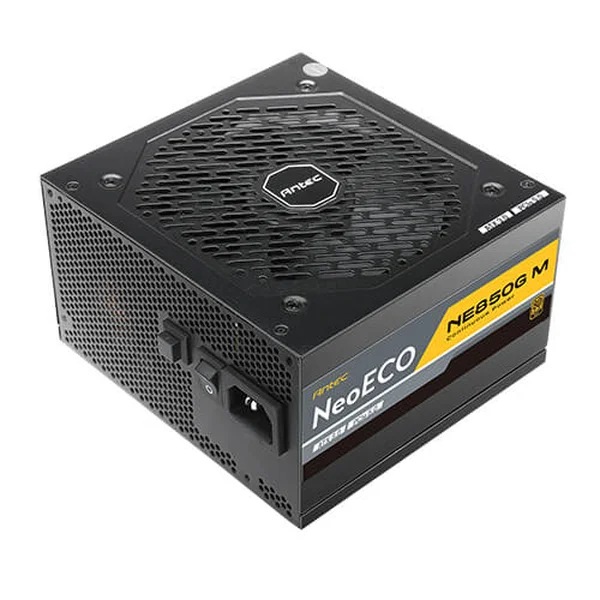

Antec NE850G M 850 Watt 80 Plus Gold
Highlights:
- Wattage 850 Watt
- Series NEO ECO
- Certification 80+ GOLD
- PCIe Connector (6+2) 6
- SATA Connector 10
Only 5 items left!
Don't miss it
Description
NE850G M ATX 3.0
Unleash the Power
The NE850G M ATX 3.0 power supply is engineered for gamers and enthusiasts who demand top-tier performance and stability. Designed with advanced ATX 3.0 compatibility and high-quality JP capacitors, this 80 PLUS® Gold-certified power supply delivers exceptional efficiency and reliability. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silent Fan offers quiet and effective cooling. With a 100% modular design, cable management is effortless, and the Zero RPM Manager enables precise thermal control for optimal silence and cooling. Backed by the CircuitShield™ suite of industrial-grade protections, the NE850G M ATX 3.0 is perfect for building a powerful and efficient PC system.
ATX 3.0 & PCIe 5.0 Compatible
The NE850G M ATX 3.0 Series meets the rigorous standards of the ATX 3.0 specification, ensuring top-notch quality and performance. It includes a PCIe 5.0 12VHPWR GPU cable, enabling compatibility with the latest graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
High-Quality JP Capacitors
Equipped with premium JP capacitors, the NE850G M ATX 3.0 delivers tight voltage regulation and minimal ripple, maximizing your system's performance and longevity.
PhaseWave™ Design
The PhaseWave™ Design, a server-class LLC topology featuring synchronous rectification, ensures exceptional power delivery efficiency and stability for your system.
CircuitShield™ Protection
CircuitShield™ provides a full suite of industrial-grade protections, ensuring the safety and reliability of your power supply in any situation.
10-Year Warranty
Antec’s NE850G M ATX 3.0 power supply is backed by a 10-year warranty, offering long-term reliability and peace of mind.
Zero RPM Manager
The Zero RPM Manager activates the fan only when necessary, ensuring a longer lifespan and quieter operation by providing optimal cooling while minimizing noise levels.
120mm FDB Silent Fan
The 120mm fluid-dynamic bearing (FDB) fan delivers high airflow and whisper-quiet operation, enhancing cooling performance with the durability and longevity Antec is known for.

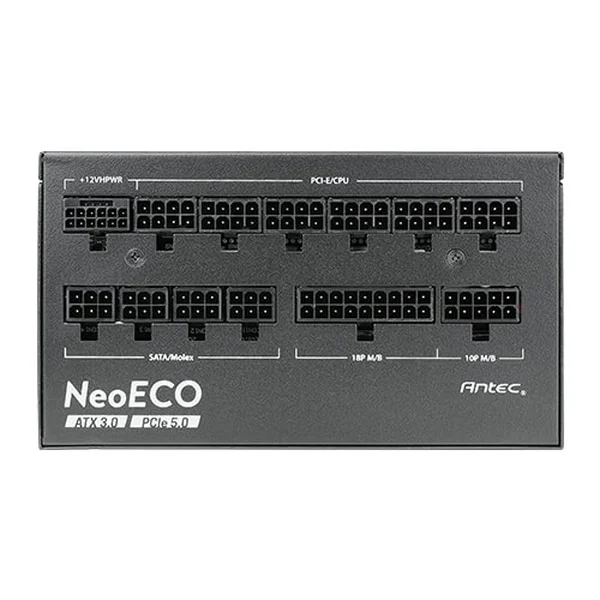

Full Modular Cable Management
The 100% modular design allows you to use only the necessary cables, reducing clutter and improving airflow for better cooling performance.
Compact Size
The NE850G M ATX 3.0 is smaller than typical power supplies, making it compatible with a wider range of computer cases while still delivering powerful performance.
| Attribute | Value |
|---|---|
| Model | NE850G M ATX3.0 |
| Type | ATX 12V 3.0 |
| Dimension | 140(L)*150(W)*86(H) |
| Modular | Full-Modular |
| Input Voltage | 100V-240V |
| Input Current | 10A-5A |
| Input Frequency Range | 60Hz-50Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 850W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Fan | 120mm FDB Silent Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x 24(20+4)pin MB |
| 1 x 16(12+4)pin PCIE 5.0 12VHPWR | |
| 2 x 8(4+4)pin CPU | |
| 4 x 8(6+2) Pin PCI-E | |
| 12 x SATA | |
| 4 x Molex | |
| Net Weight | 1.6 Kgs |
| Gross Weight | 4.62 Kgs |
| Warranty | 7 years |
