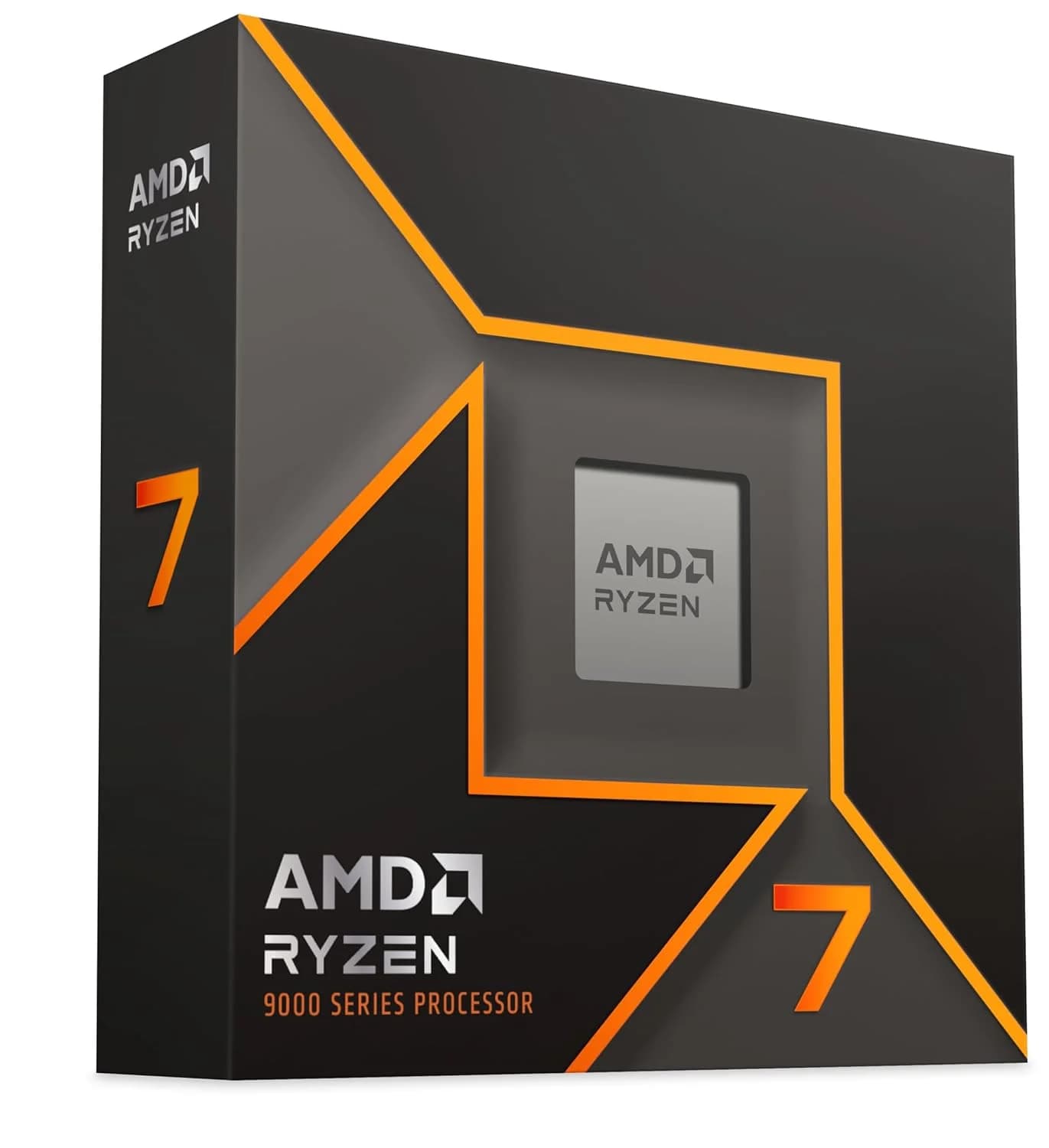

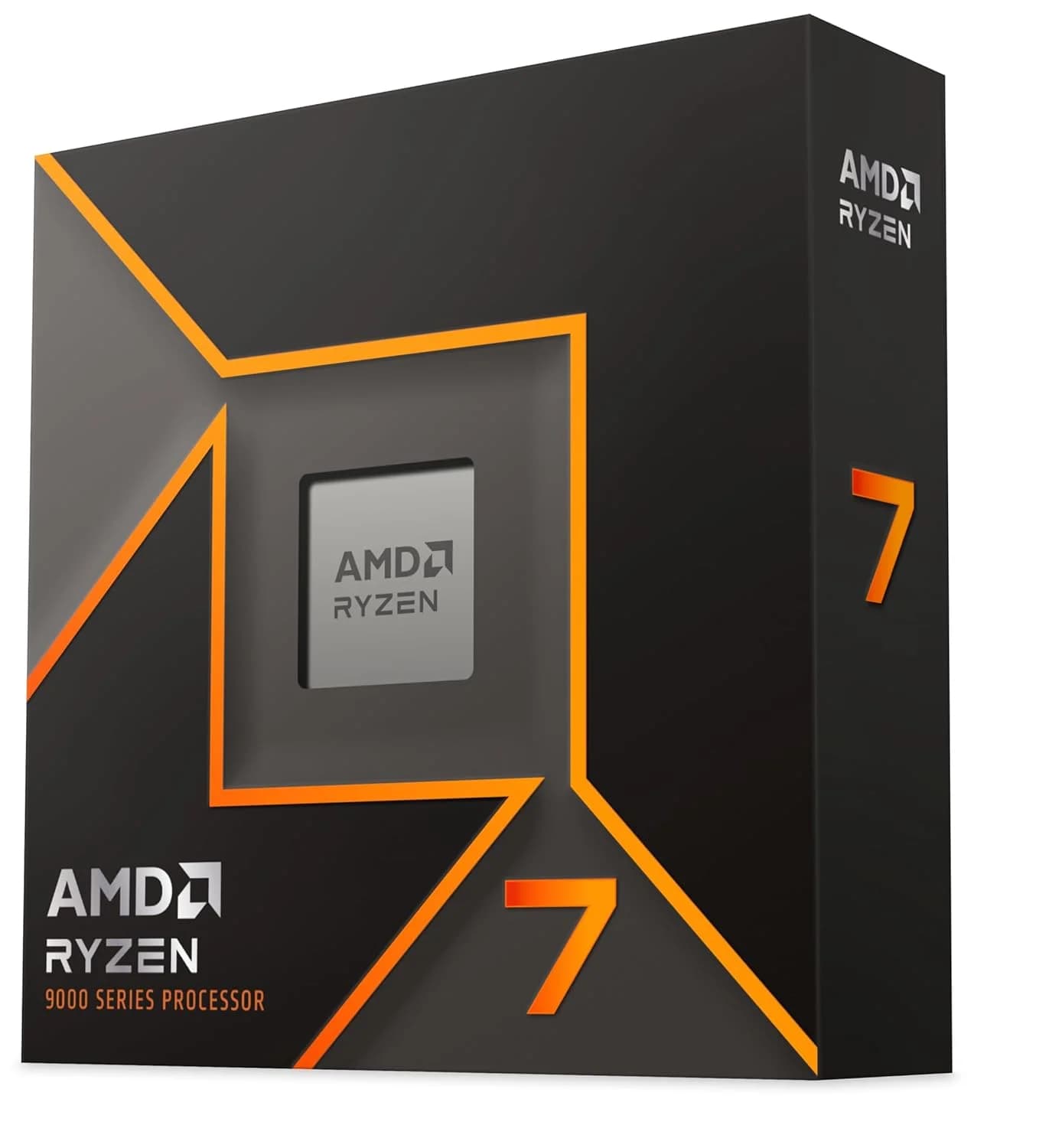

AMD Ryzen™ 7 9700X is an enthusiast-grade desktop processor built on the cutting-edge Zen 5 architecture. Featuring 8 cores and 16 threads, it delivers exceptional performance with boost clocks up to 5.5 GHz. Equipped with 32MB L3 cache and supported by DDR5 memory, this unlocked processor offers unparalleled responsiveness for gaming, content creation, and demanding applications. AMD EXPO™ memory overclocking technology and Precision Boost Overdrive push performance to new heights. Designed for AM5 socket motherboards, it ensures compatibility with the latest technologies. With integrated Radeon Graphics, it's ready for basic display output. Experience the future of computing with the Ryzen 7 9700X.
Features
Core Performance: 8 cores, 16 threads, up to 5.5 GHz boost clock for exceptional single-threaded and multi-threaded performance.
Advanced Architecture: Built on Zen 5 architecture with TSMC 4nm process for increased efficiency and speed.
High-Speed Memory: Supports DDR5 memory up to 5600MHz for faster data transfer and improved system responsiveness.
Integrated Graphics: Includes AMD Radeon Graphics for basic display output and multimedia capabilities.
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870
Specifications
Name | AMD Ryzen™ 7 9700X |
Family | Ryzen |
Series | Ryzen 9000 Series |
Form Factor | Desktops, Boxed Processor |
Market Segment | Enthusiast Desktop |
AMD PRO Technologies | No |
Regional Availability | Global |
Former Codename | Granite Ridge AM5 |
Processor Architecture | Zen 5 |
# of CPU Cores | 8 |
Multithreading (SMT) | Yes |
# of Threads | 16 |
Max. Boost Clock | Up to 5.5 GHz |
Base Clock | 3.8 GHz |
L1 Cache | 640 KB |
L2 Cache | 8 MB |
L3 Cache | 32 MB |
Default TDP | 65W |
Processor Technology for CPU Cores | TSMC 4nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
Package Die Count | 2 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) | Not Included |
Recommended Cooler | Premium air cooler recommended for optimal performance |
Max. Operating Temperature (Tjmax) | 95°C |
Launch Date | 08-08-2024 |
OS Support | Windows 11 - 64-Bit, Windows 10 - 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
Native USB 3.2 Gen 2 (10Gbps) | 4 ports |
Native USB 2.0 (480Mbps) | 1 port |
PCI Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 / 24 |
Additional Usable PCIe Lanes from Motherboard | X870E: 8x Gen4, X870: 4x Gen4, X670E: 12x Gen4, X670: 12x Gen4, B650E: 8x Gen4, B650: 8x Gen4 |
NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 192 GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600 |
ECC Support | Yes (Requires motherboard support) |
Graphics Model | AMD Radeon™ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
USB Type-C® DisplayPort™ Alternate Mode | Yes |
Product ID Boxed | 100-100001404WOF |
Product ID Tray | 100-000001404 |
Supported Technologies | AMD EXPO™ Technology, AMD Ryzen™ Technologies |
Warranty | 3 Years |
