Key features

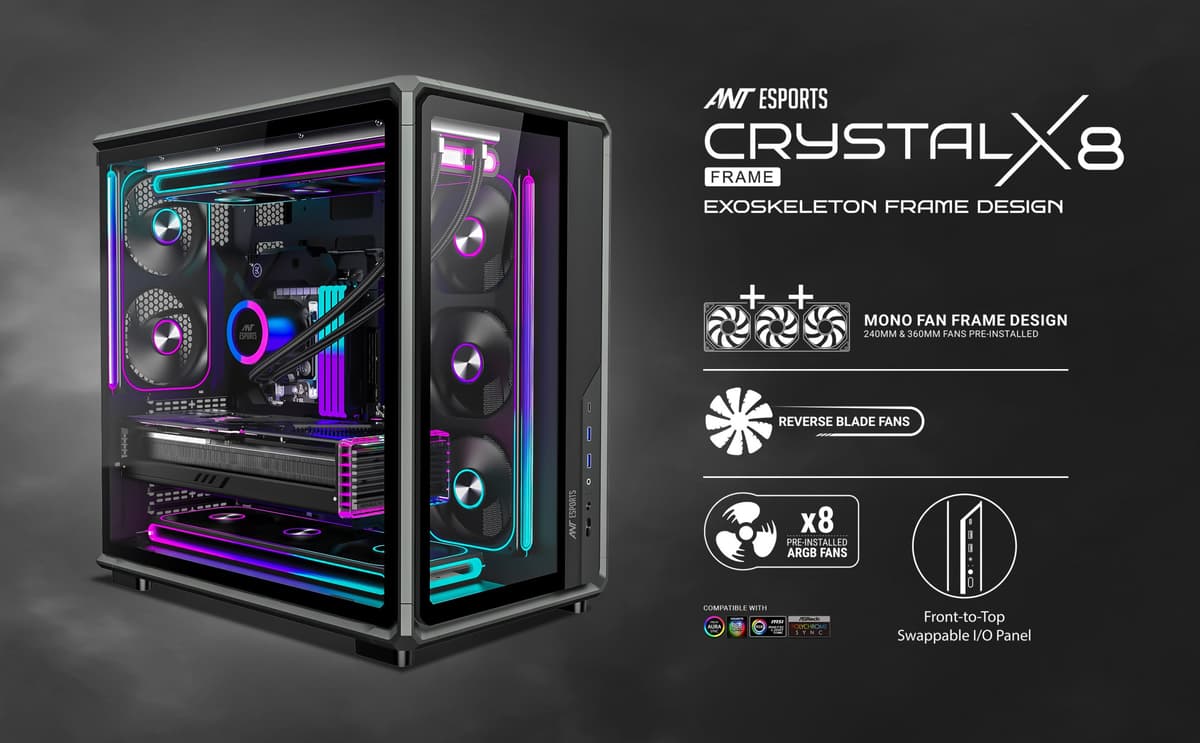

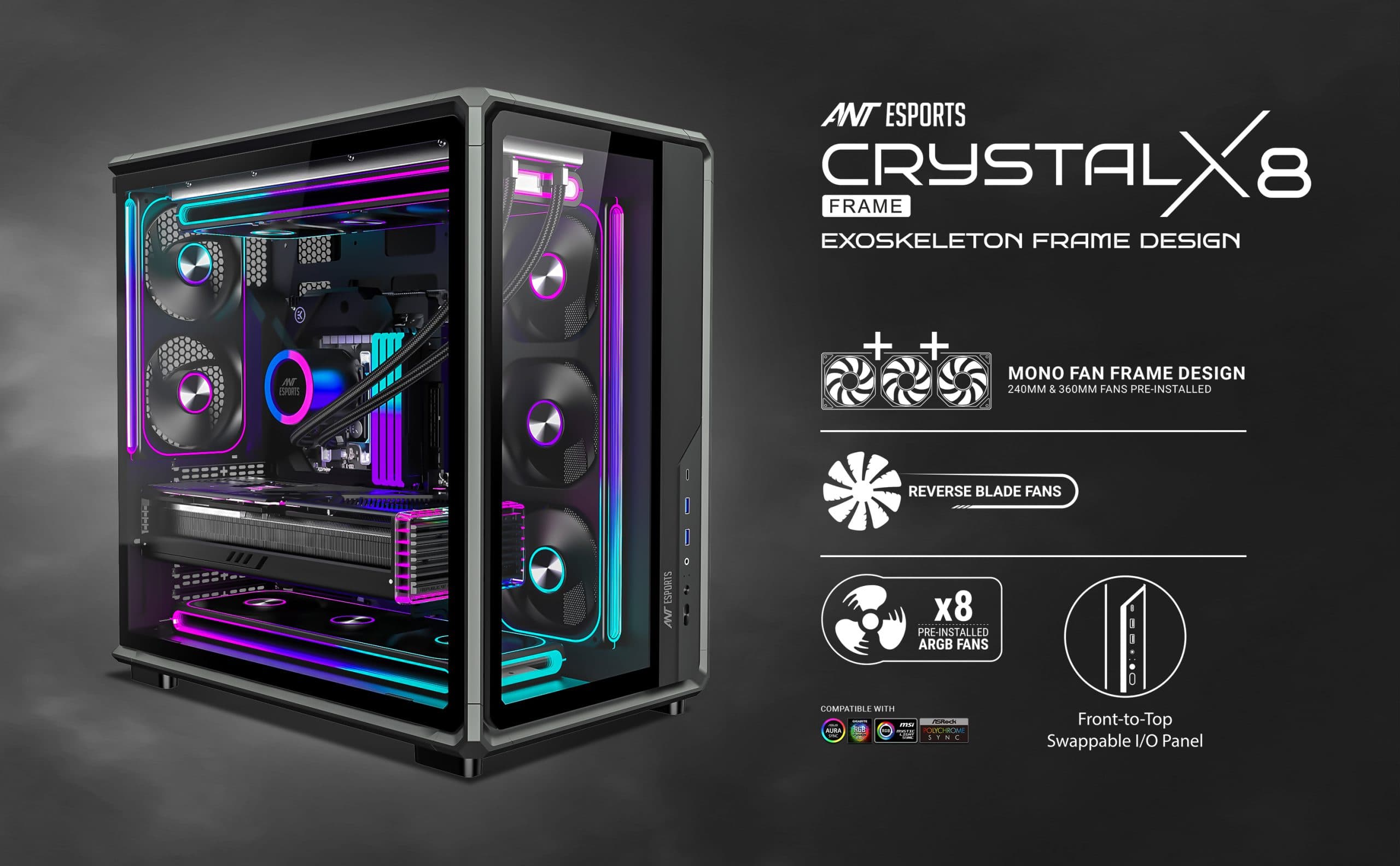

The ANT ESPORTS Crystal X8 FRAME combines premium aesthetics with exceptional airflow in a distinctive exoskeleton frame design. Featuring dual tempered glass panels, 8 pre-installed ARGB fans, reverse-blade airflow optimization, and support for dual 360mm radiators, it is built to showcase and cool high-end gaming hardware effortlessly. With spacious component compatibility and a swappable front-to-top I/O panel, the Crystal X8 FRAME delivers both style and functionality for modern PC enthusiasts.

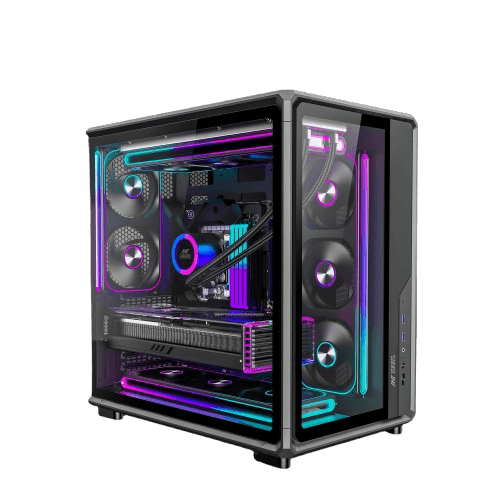

The Crystal X8 FRAME features a bold exoskeleton-inspired chassis that enhances both structural strength and visual appeal. Its unique frame design creates a premium showcase for high-performance gaming systems.
Equipped with reverse-blade ARGB fans, the cabinet maintains clean aesthetics while optimizing airflow. Enjoy efficient cooling performance without compromising the visual presentation of your build.

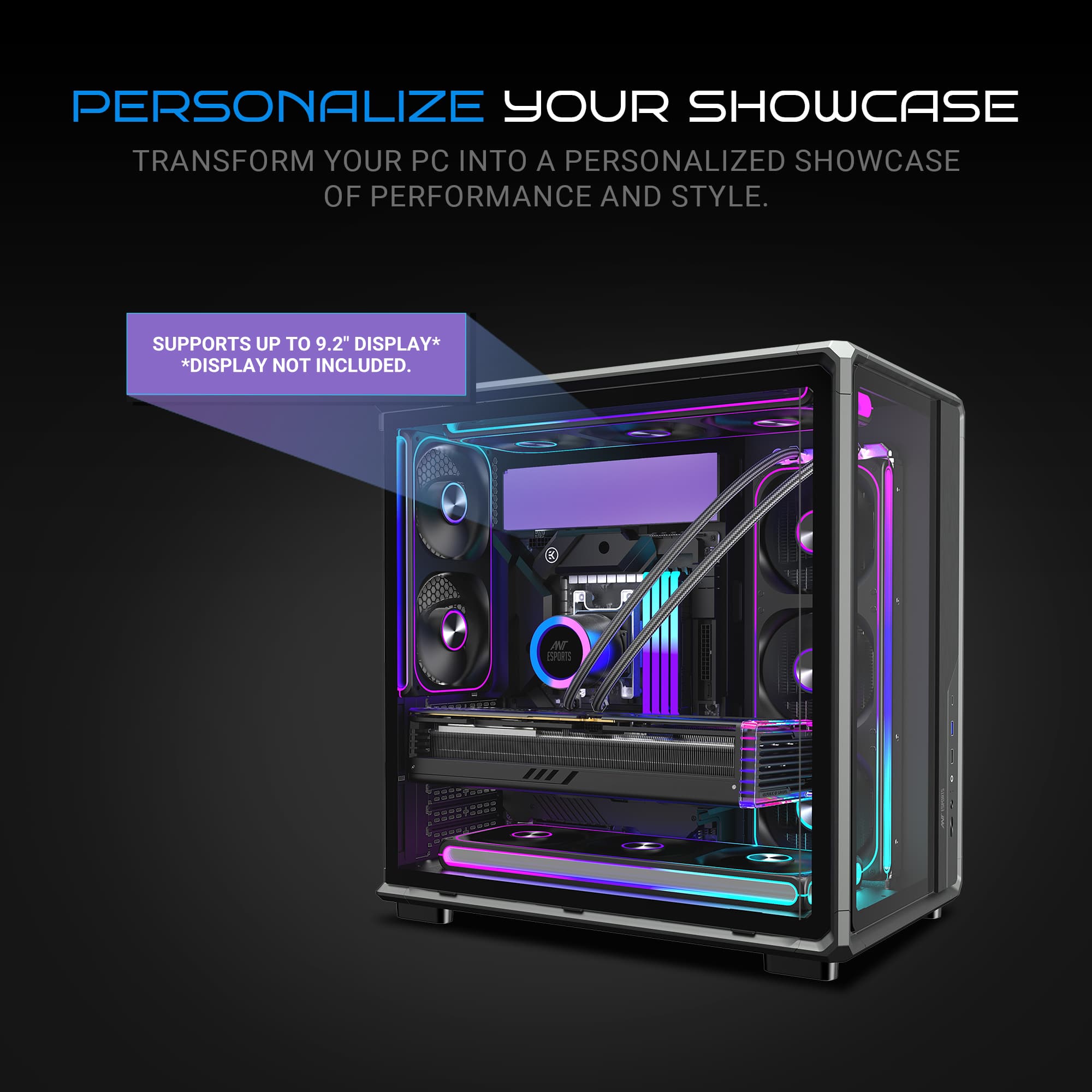

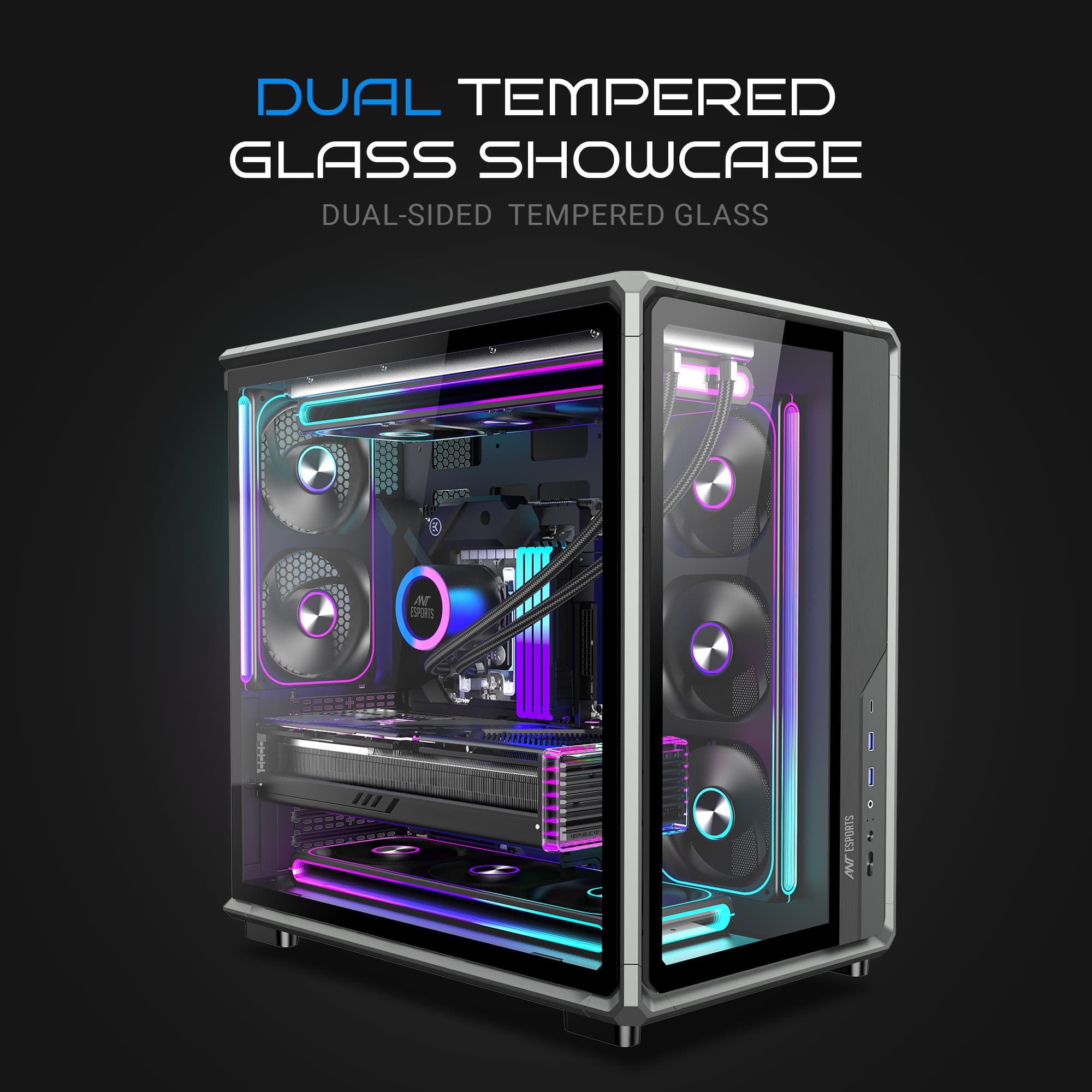

Dual tempered glass panels provide a crystal-clear view of your hardware and RGB lighting. Perfect for showcasing custom cooling loops, premium graphics cards, and synchronized lighting effects.
Support for up to 360mm radiators on both the top and side panels allows advanced liquid cooling configurations. Build high-performance systems with confidence and thermal efficiency.

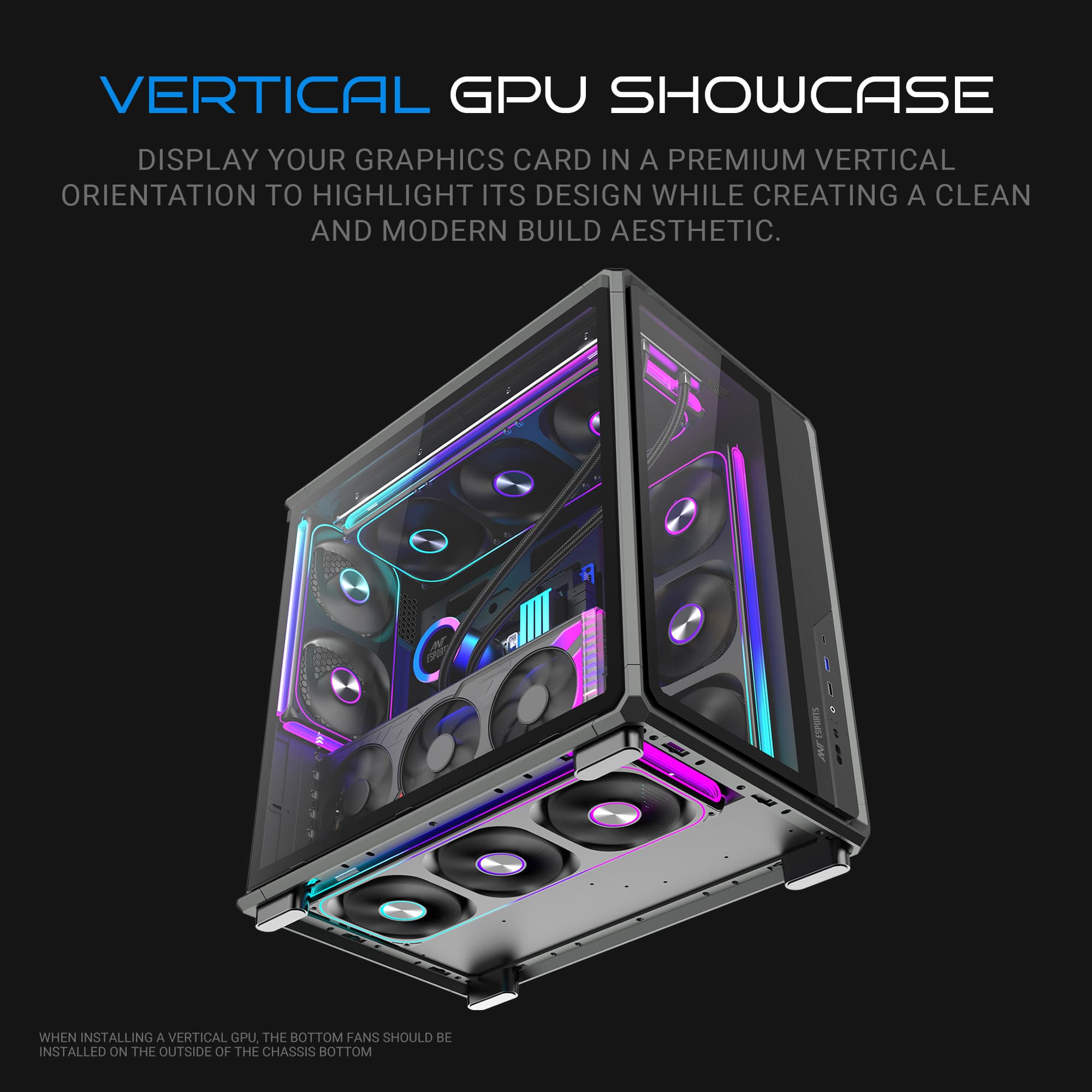

With support for graphics cards up to 420mm in length and multiple motherboard form factors, the Crystal X8 FRAME is designed to accommodate today's most powerful gaming components while leaving room for future upgrades.
Specifications
Specification | Details |
|---|---|
Product Dimensions (L × W × H) | 460 × 290 × 476 mm |
Package Dimensions (L × W × H) | 510 × 355 × 510 mm |
Motherboard Compatibility | ATX, Micro-ATX, Mini-ITX |
Materials | SPCC Steel + Tempered Glass |
Drive Bays | 1 × 3.5" HDD + 3 × 2.5" SSD |
5.25" Drive Bay | None |
Top Fan Support | 3 × 120 mm |
Bottom Fan Support | 3 × 120 mm |
Rear Fan Support | 2 × 120 mm |
Side Fan Support | 3 × 120 mm |
Top Radiator Support | Up to 360 mm |
Rear Radiator Support | Up to 120 mm |
Side Radiator Support | Up to 360 mm |
Pre-Installed Fans | 1 × 360 mm (3 × 120 mm) Mono Frame Bottom Fan (Reverse Blade)1 × 360 mm (3 × 120 mm) Mono Frame Side Fan (Reverse Blade)1 × 240 mm (2 × 120 mm) Mono Frame Rear Fan |
Maximum GPU Length | 420 mm |
Maximum CPU Cooler Height | 165 mm |

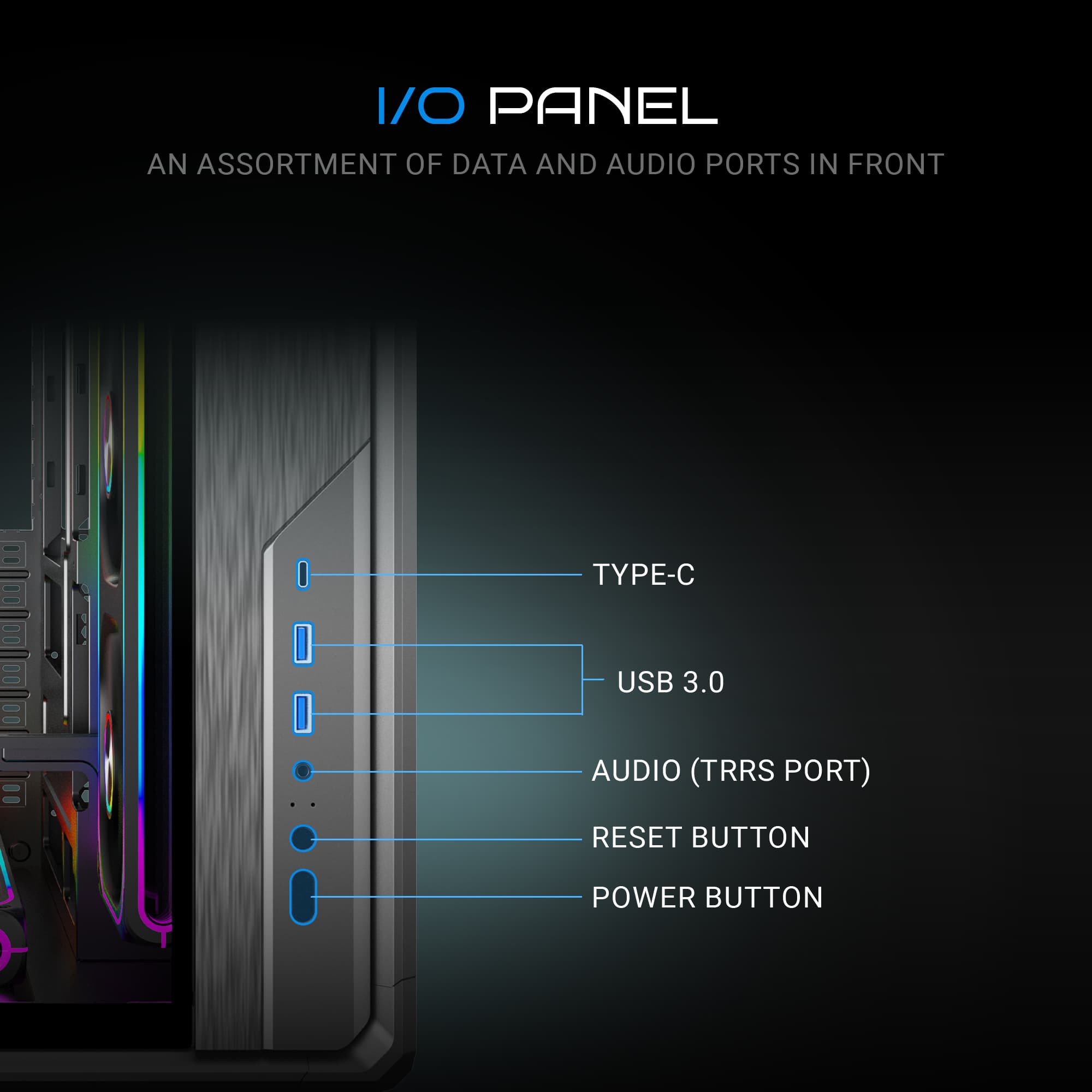

Front I/O Panel | 1 × USB Type-C 3.1, 2 × USB 3.0, HD Audio + Mic (TRRS), 2 × LED Indicators, Power Button, Reset Button |

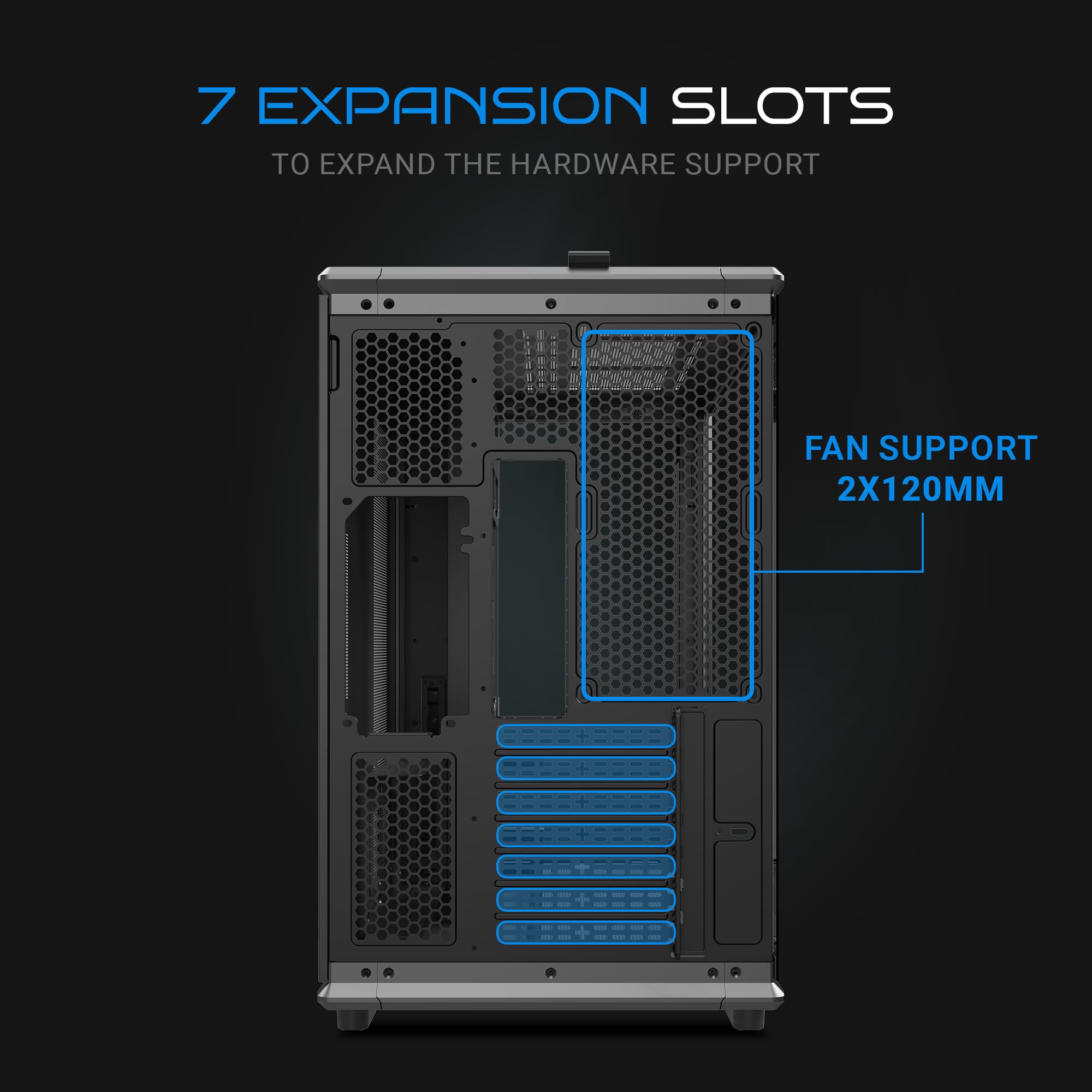

Expansion Slots | 7 |
