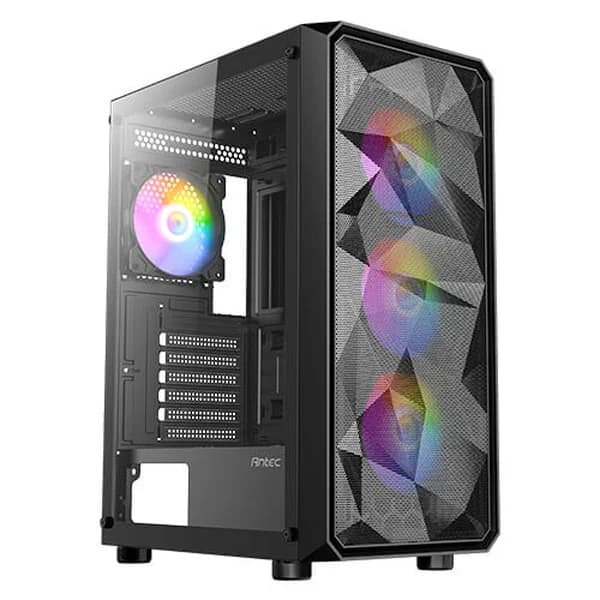

AX83 RGB ELITE features a unique design and excellent cooling performance. The large tempered glass side panel allows you to show off your gaming configurations without any obstacles. 8 x 120mm fans can be installed simultaneously.

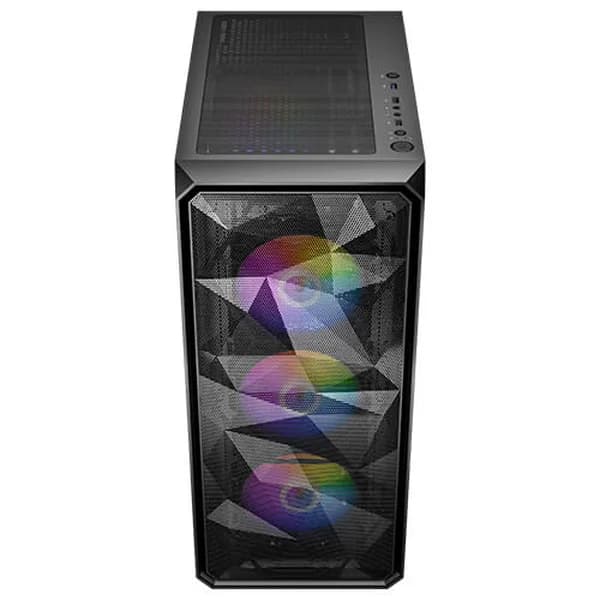

3D angular metal mesh adopted on the front panel ensures massive airflow and maximum cooling performance, while enhancing dust prevention at the same time.
Large-area mesh front panel for massive airflow.
Daisy-chained to the power supply.

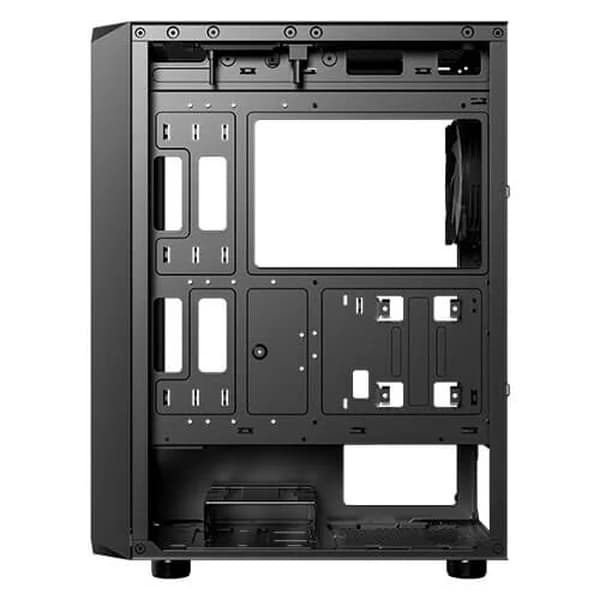

24mm space for cable management ensures your PC build looks neat.
Showcase your custom water-cooling system and fancy components.
Support 360mm radiator in front.
Max. CPU Cooler Height: 165mm. Support most of the high-end air coolers.
Category | Details |
|---|---|
Dimensions (D x W x H) | 380 x 218 x 486 mm |
Form Factor | Mid Tower |
Materials | Steel + Plastic |
Motherboard Support | E-ATX (up to 280 mm), ATX, M-ATX, ITX |
Front I/O & Controls | Power, Reset, LED On/Off Button (RGB), LED Control (ARGB), 2x USB 2.0, 1x USB 3.0, MIC/HD-AUDIO |
Side Panel | Tempered Glass |
Drive Bays | 3.5"/2.5": 1/0 |
Expansion Slots | 7 |
Fan Support | Front: 3x 120mm / 3x 140mm |
Included Fans | AX83 RGB Elite: 3x 120mm front + 1x 120mm rear (fixed RGB) |
Radiator Support | Front: 120/140/240/280/360 mm |
Clearance | Max GPU Length: ≤ 300 mm (with front fan), ≤ 325 mm (without front fan) |
Dust Filters | Top / Bottom |
Net Weight | RGB Elite: 5.62 kg |
Gross Weight | RGB Elite: 6.62 kg |
Warranty | 1 Year |
UPC Codes | RGB Elite: 0-761345-10036-6 |
