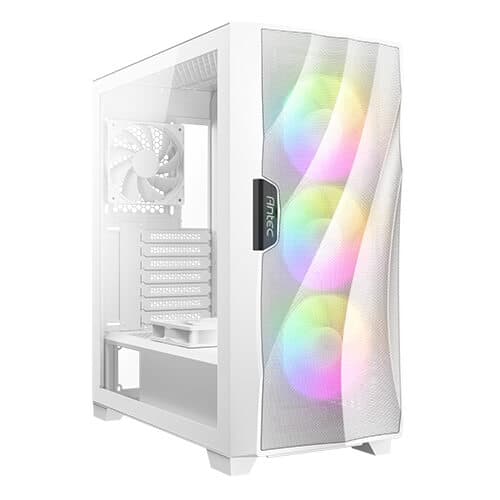

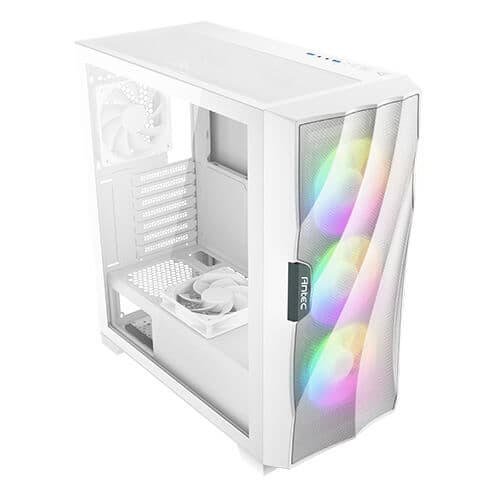

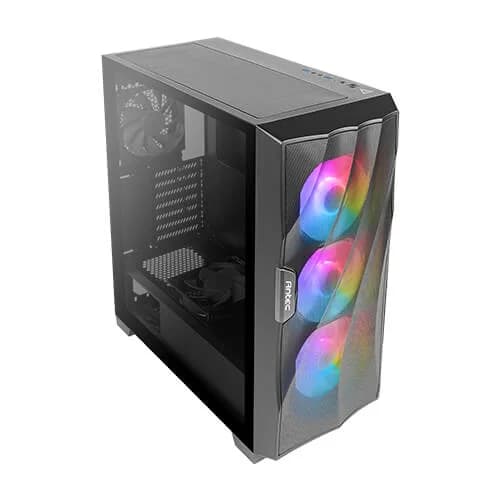

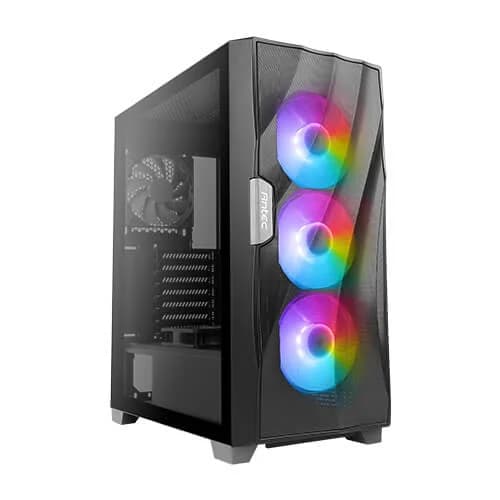

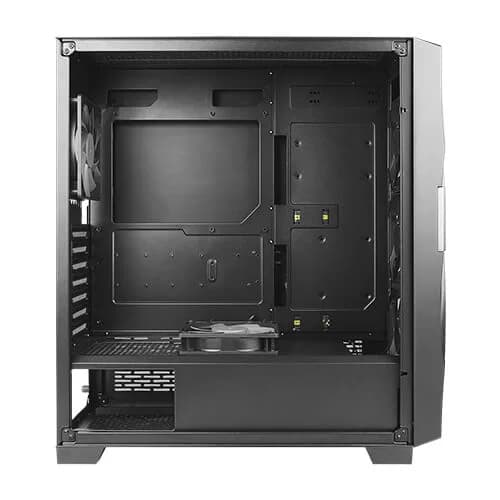

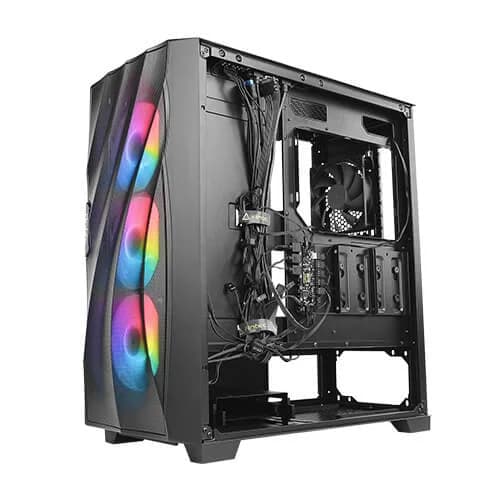

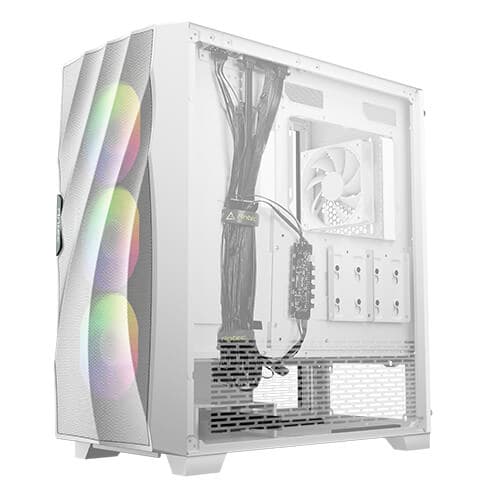

Antec DF700 FLUX ATX Cabinet

Why the New Cooling Solution

When Intel and AMD announced their latest CPUs, they all deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.

Go with the Flow

The front panel is designed by adopting a three-dimensional wave-shaped mesh, presenting a smoothly minimalist looking. With massive ventilation in the front, the DF700 FLUX can easily project attractive light effects and enhance the cooling.

• Specifications:

  Features	Specifications
  Dimensions	467 x 220 x 486 mm(DxWxH)
  Form Factor	Mid tower
  Materials	Steel + Plastic
  Mainboard Support	ATX , Micro-ATX, Mini-ITX
  Front Access & Controls	Power, LED Control Button, 2 x USB3.0, HD-AUDIO
  Side Panel	4 mm Tempered Glass Side Panel
  Expansion Slots	7
  5.25"	－
  3.5"/2.5" (convertible)	03-Feb
  2.5"	3
  Front	3 x 120mm / 3 x 140mm
  Top	3 x 120mm / 2 x 140mm
  Power Supply Shroud	2 x 120mm
  Rear	1 x 120mm
  Included Fan(s)	3 x 120mm ARGB fans in front
  	1 x 120mm fan (Reverse Fan) on PSU shroud
  	& 1 x 120mm fan in rear
  Front	120/240/280/360mm (≤ 55mm thickness when fans are installed outside of front panel)
  	(≤ 30mm thickness when fans are installed inside of front panel)
  Top	120/240/280/360mm
  Rear	120mm
  Max GPU Length	≤ 405mm
  Max CPU Height	≤ 175mm
  PSU Support	≤ 205mm
