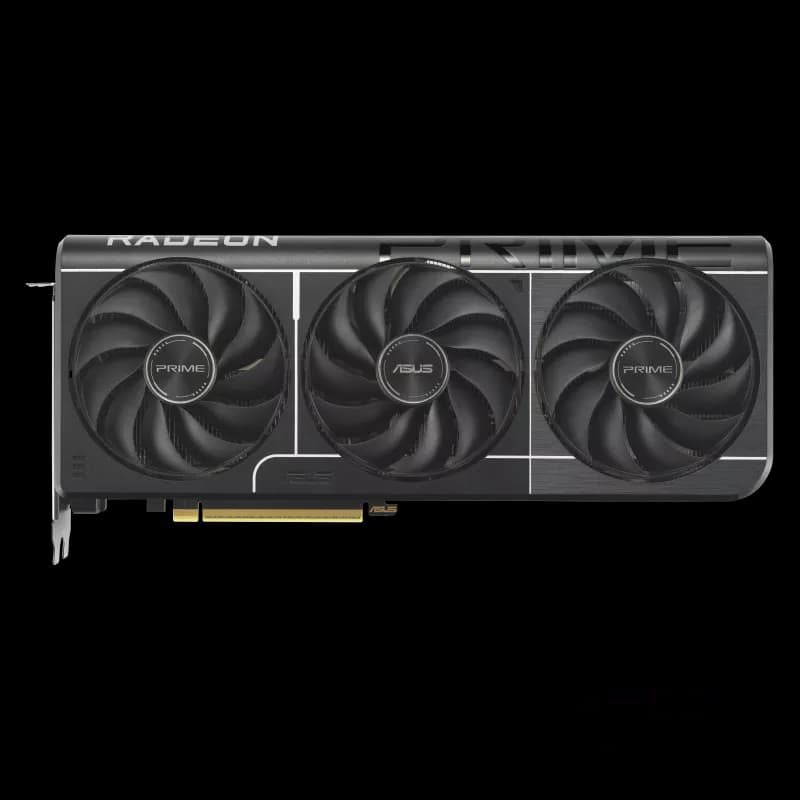

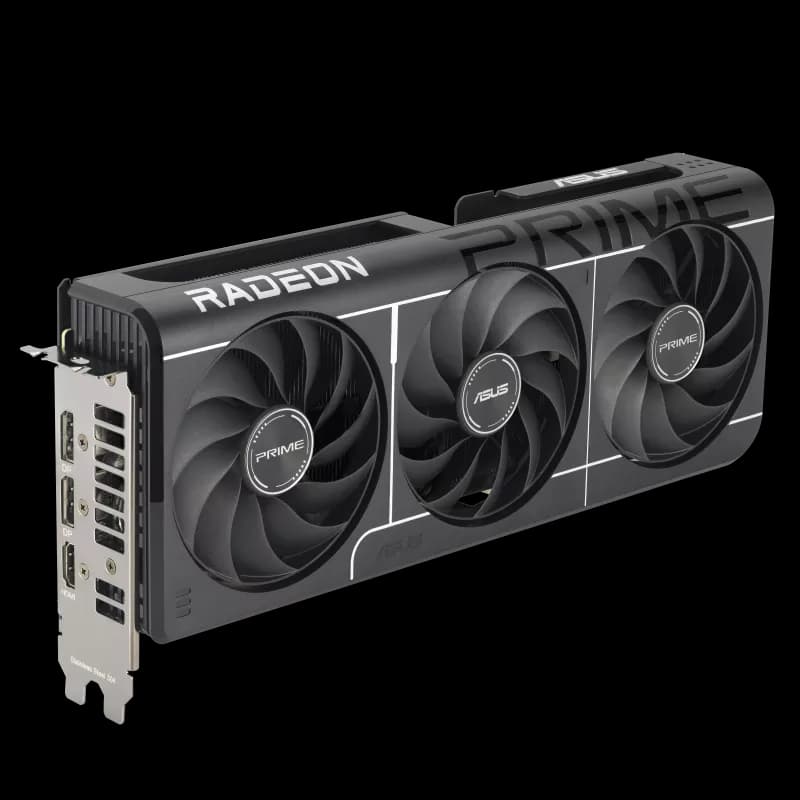

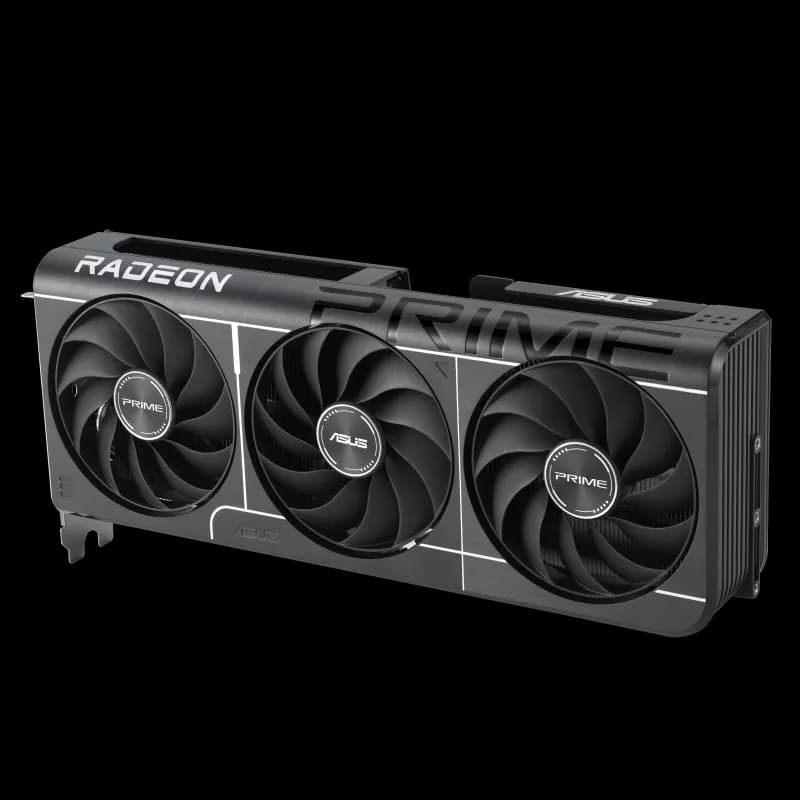

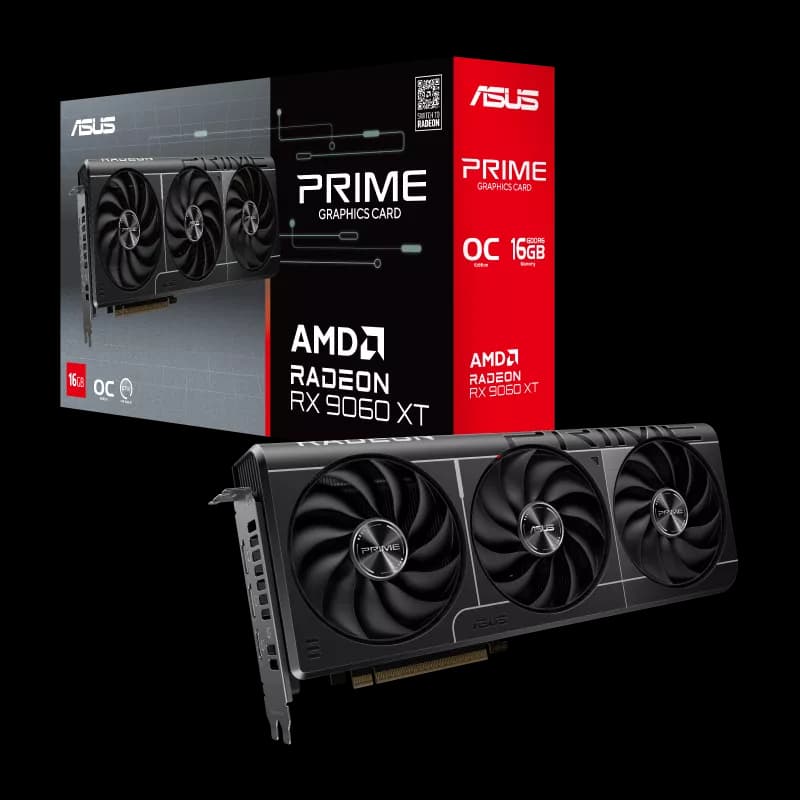

The ASUS Prime Radeon RX 9060 XT OC Edition 16GB GDDR6 Graphics Card delivers powerful 1440p gaming and content creation performance with AMD RDNA 4 architecture. Featuring triple Axial-tech fans, Dual BIOS, 0dB cooling technology and PCIe 5.0 connectivity, it combines efficient cooling with customizable performance.
Experience next-generation gaming and graphics performance with the ASUS Prime Radeon RX 9060 XT OC Edition 16GB GDDR6 Graphics Card. Powered by AMD RDNA 4 architecture, this high-performance GPU is designed for immersive 1440p gaming, content creation and demanding graphics applications.
Featuring 16GB of GDDR6 VRAM, a 128-bit memory interface and PCI Express 5.0 connectivity, this graphics card provides generous video memory for modern games, detailed visuals and compatible creative workloads.
The compact 2.5-slot design features three Axial-tech fans, dual-ball fan bearings and a vented backplate to improve airflow and heat dissipation. ASUS 0dB technology stops the fans at lower GPU temperatures for quieter operation during light workloads, while MaxContact technology enhances heat transfer for effective cooling.
The Dual BIOS switch lets users choose between Performance and Quiet modes according to their cooling and noise preferences. ASUS GPU Tweak III provides tools to adjust GPU clocks, monitor performance and customize fan settings.
Powered by AMD RDNA 4 architecture, the Radeon RX 9060 XT supports advanced ray tracing, AMD FidelityFX Super Resolution 4 and AMD HYPR-RX features in compatible games and applications. DisplayPort 2.1a and HDMI 2.1b connectivity enable support for modern high-resolution displays.
ASUS Auto-Extreme manufacturing technology, a protective backplate, GPU Guard reinforcement and a stainless-steel mounting bracket contribute to durability and structural stability.
The ASUS Prime Radeon RX 9060 XT OC Edition 16GB is an excellent option for gamers and creators looking for a modern Radeon graphics card with substantial VRAM, efficient cooling and customizable performance.
Specification | Details |
Brand | ASUS |
Model | PRIME-RX9060XT-O16G |
Graphics Engine | AMD Radeon RX 9060 XT |
Architecture | AMD RDNA 4 |
Video Memory | 16GB GDDR6 |
Memory Interface | 128-bit |
Memory Speed | 20 Gbps |
Stream Processors | 2048 |
Boost Clock | Up to 3330 MHz (OC Mode) / 3310 MHz (Default Mode) |
Game Clock | Up to 2760 MHz (OC Mode) / 2740 MHz (Default Mode) |
Bus Interface | PCI Express 5.0 |
OpenGL | OpenGL 4.6 |
Cooling | Triple Axial-tech Fans |
Slot Size | 2.5-slot |
BIOS | Dual BIOS (Performance / Quiet) |
Maximum Resolution | 7680 × 4320 |
Maximum Displays | 3 |
HDMI | 1 × HDMI 2.1b |
DisplayPort | 2 × DisplayPort 2.1a |
HDCP Support | HDCP 2.3 |
Crossfire Support | No |
Power Connector | 1 × 8-pin |
Recommended PSU | 550W |
Dimensions | 304 × 126 × 50 mm |
Software | ASUS GPU Tweak III |
Included Accessories | Thank You Card, Speedsetup Manual |
