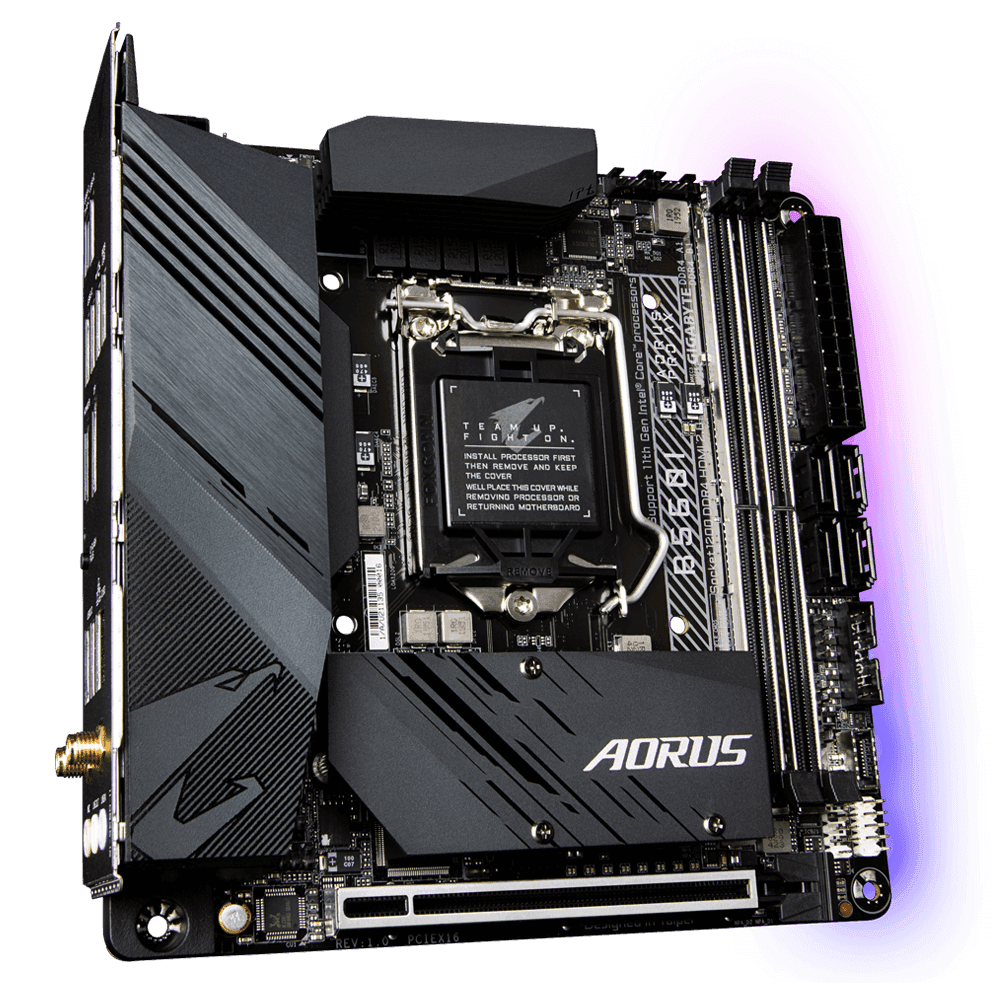

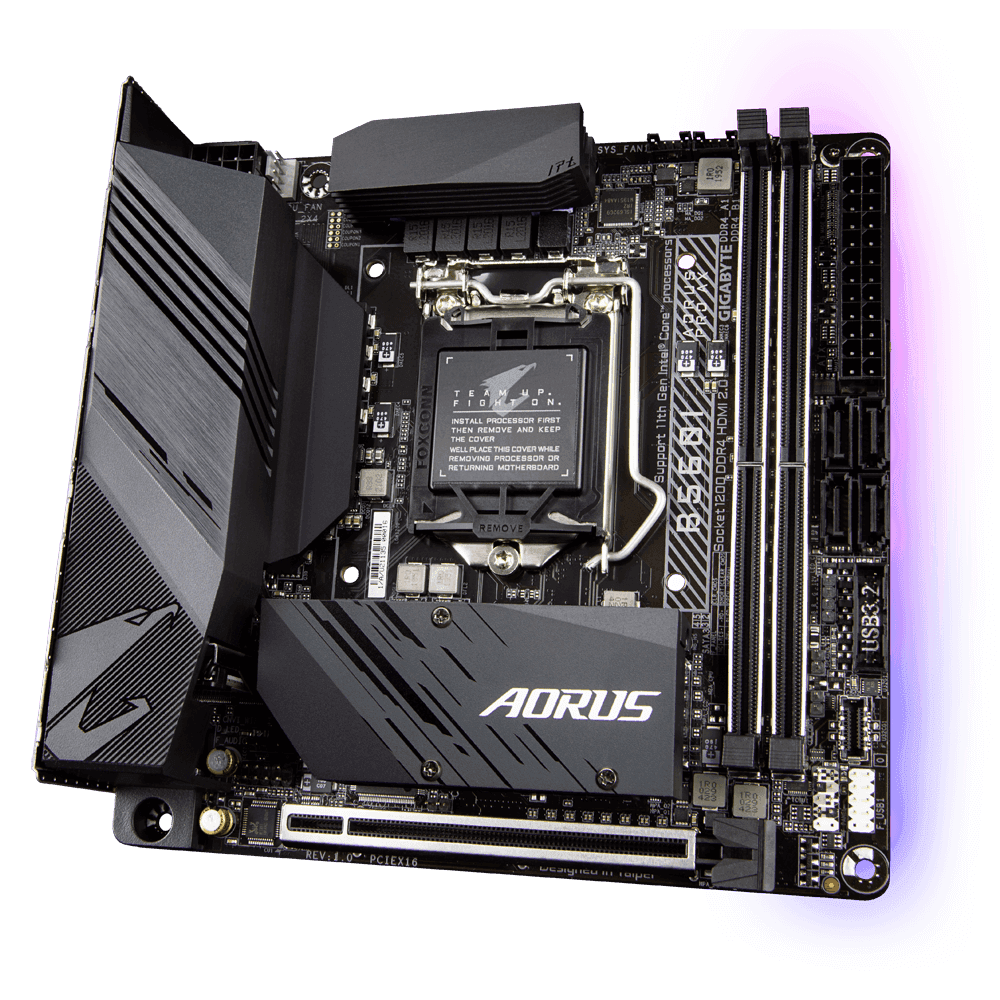

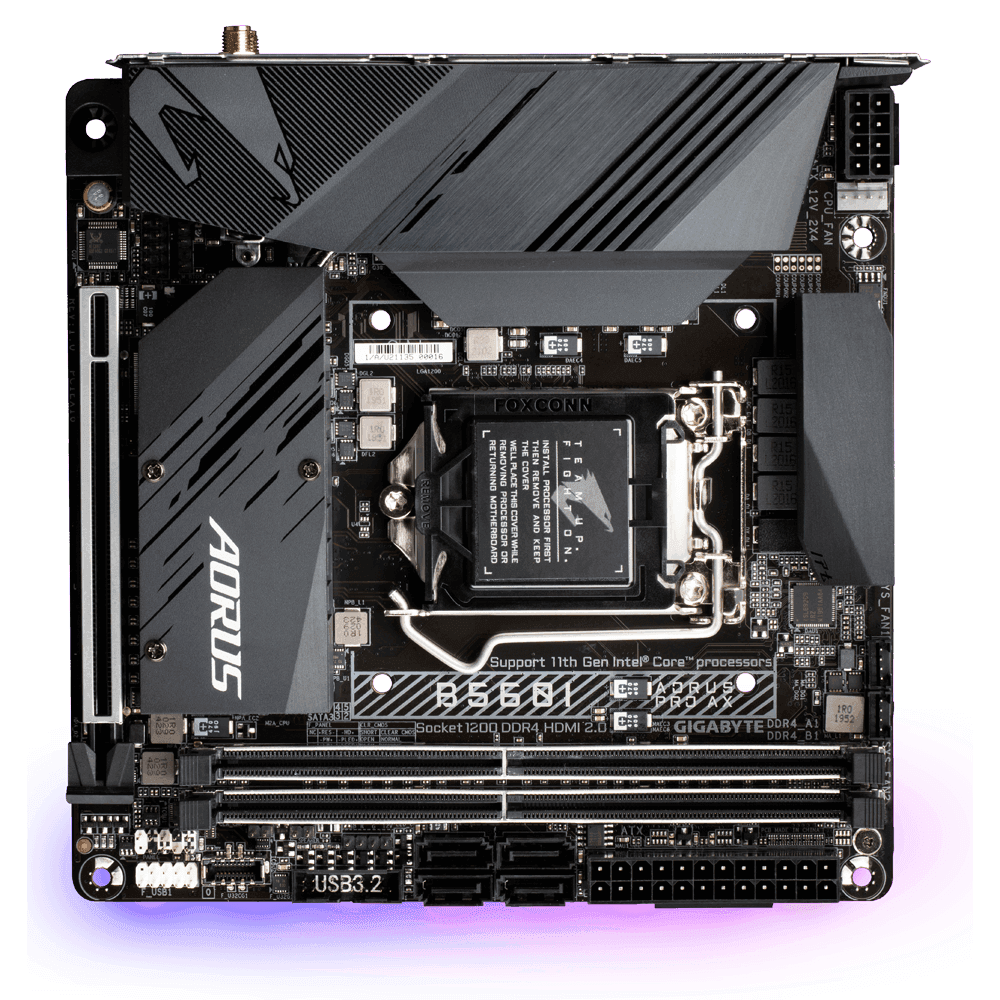

Key Feature
Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 8+1 Phases Digital VRM Solution with 50A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
Blazing Fast Intel® 2.5GbE LAN
Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
Rear USB 3.2 Gen1 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting devices
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
ULTIMATE POWER DESIGN
To fully support the latest 10th Gen ten- cores CPU, the B560I AORUS PRO AX is equipped with the ultimate power solution with the desired features: direct, digital and multiple phases. After countless experiments and tests, GIGABYTE presents the unbeatable B560I AORUS PRO AX for enthusiasts and gamers.
PERFORMANCE
With the best quality components and GIGABYTE R&D design capability, the B560 AORUS is a true beast among motherboards.
ADVANCED THERMAL SOLUTION
The comprehensive solution delivers excellent heat dissipation. The AORUS motherboard stays cool on VRMs and M.2 SSD when heavy loading, making it most suitable for enthusiasts, overclockers and professional gamers.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
DEFINITIVE AESTHETICS
B560I AORUS PRO AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B560 AORUS motherboard and reinforce every slot to make each of them solid and durable.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.
Specification:
CPU | LGA1200 package: |
| 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors |
| 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* |
| * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. |
| L3 cache varies with CPU |
| (Please refer to "CPU Support List" for more information.) |
Chipset | Intel® B560 Express Chipset |
Memory | 11th Generation Intel® Core™ i9/i7/i5 processors: |
| Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
| 10th Generation Intel® Core™ i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules |
| 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: |
| Support for DDR4 2666/2400/2133 MHz memory modules |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer "Memory Support List" for more information.) |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.0 version and HDCP 2.3. |
|
|
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| * Support for DisplayPort 1.2 version and HDCP 2.3 |
| (Graphics specifications may vary depending on CPU support.) |
Audio | Realtek® Audio CODEC |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. |
LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
Wireless Communication module | Intel® Wi-Fi 6 AX200 |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band |
| BLUETOOTH 5.1 |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| * Actual data rate may vary depending on environment and equipment. |
Expansion Slots | 1 x PCI Express x16 slot, running at x16 |
| (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)* |
| * Supported by 11th Generation processors only. |
Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* |
| * Supported by 11th Generation processors only. |
| Chipset: |
| 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) |
| 4 x SATA 6Gb/s connectors |
| Intel® Optane™ Memory Ready |
USB | Chipset: |
| 2 x USB Type-C® ports, with USB 3.2 Gen 1 support (1 port on the back panel, 1 port available through the internal USB header) |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+1 USB 3.2 Gen 1 Hub: |
| 4 x USB 3.2 Gen 1 ports on the back panel |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 2 x system fan headers |
| 1 x addressable LED strip header |
| 1 x RGB LED strip header |
| 4 x SATA 6Gb/s connectors |
| 2 x M.2 Socket 3 connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x speaker header |
| 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| 1 x USB 3.2 Gen 1 header |
| 1 x USB 2.0/1.1 header |
| 1 x Clear CMOS jumper |
| 1 x chassis intrusion header |
| ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |

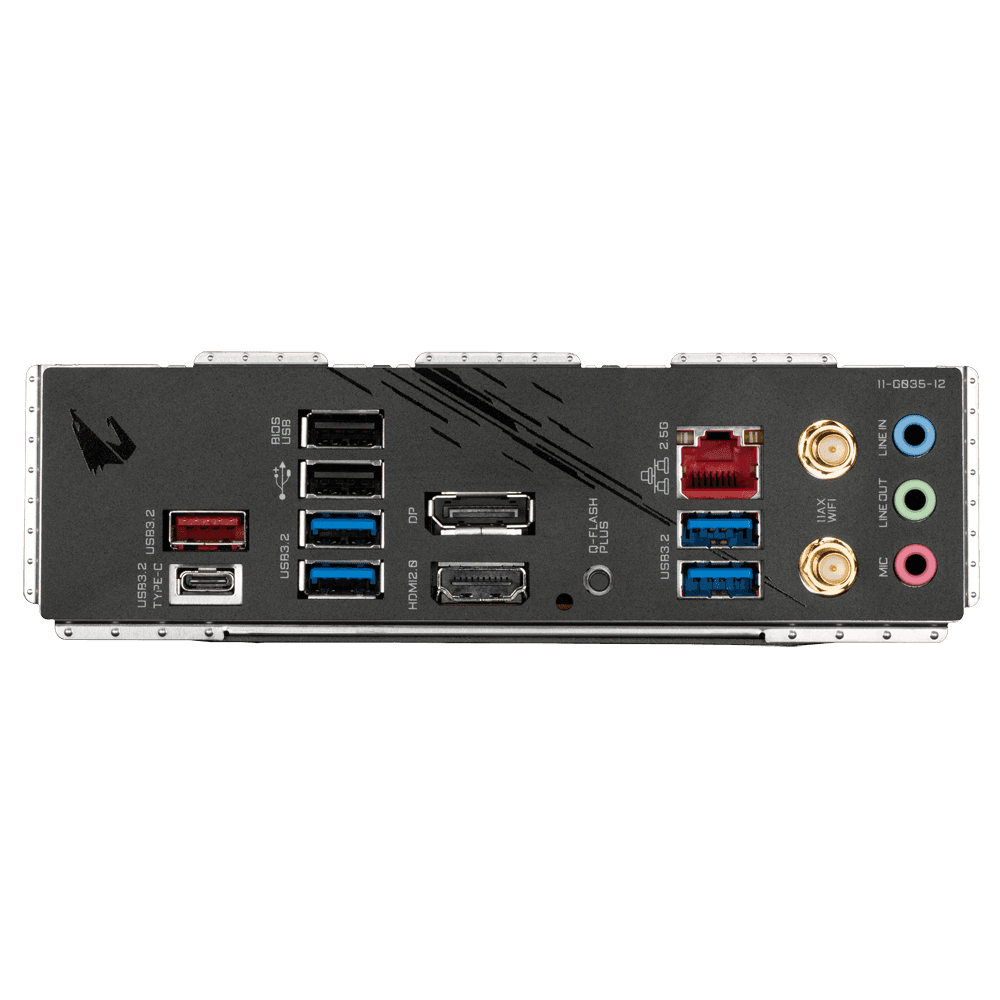

Back Panel Connectors | 1 x DisplayPort |
| 1 x HDMI port |
| 1 x USB Type-C® port, with USB 3.2 Gen 1 support |
| 1 x USB 3.2 Gen 2 Type-A port (red) |
| 4 x USB 3.2 Gen 1 ports |
| 2 x USB 2.0/1.1 ports |
| 1 x Q-Flash Plus button |
| 1 x RJ-45 port |
| 2 x SMA antenna connectors (2T2R) |
| 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
| Temperature detection |
| Fan speed detection |
| Fan fail warning |
| Fan speed control |
| * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| RGB Fusion |
| Smart Backup |
| System Information Viewer |
| Support for Q-Flash Plus |
| Support for Q-Flash |
| Support for Xpress Install |
Bundled Software | Norton® Internet Security (OEM version) |
| cFosSpeed |
Operating System | Support for Windows 10 64-bit |
Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
