DEEPCOOL CL6600

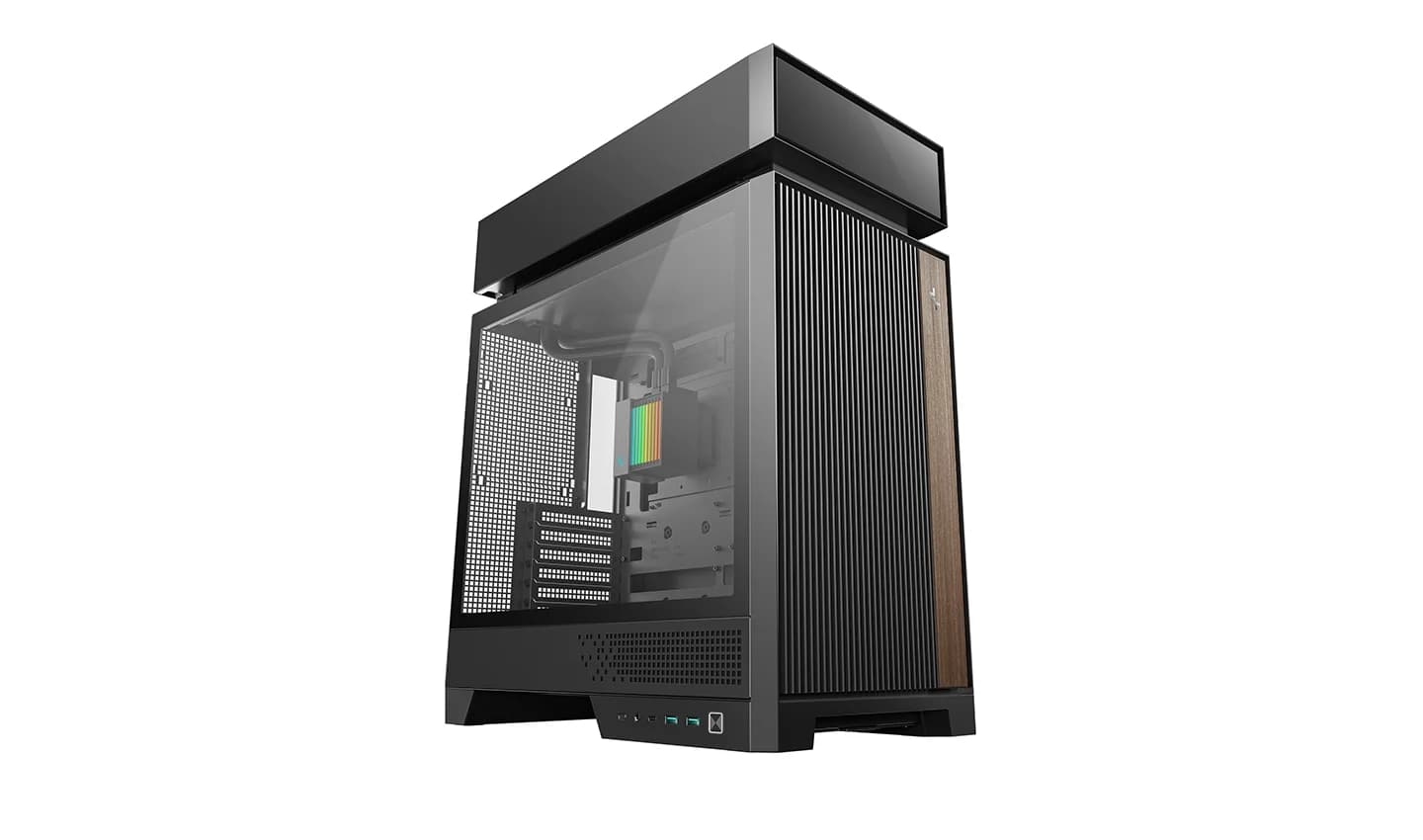

CL6600 rethinks case design for the liquid-cooling era. By physically separating thermal zones and airflow paths, it prevents heat buildup and cross-interference that conventional layouts can’t avoid. It also comes with an advanced 360mm liquid cooler and dual bottom ARGB fans, delivering strong performance and creating a vibrant interior.
SPLIT FOR PERFECT FLOW

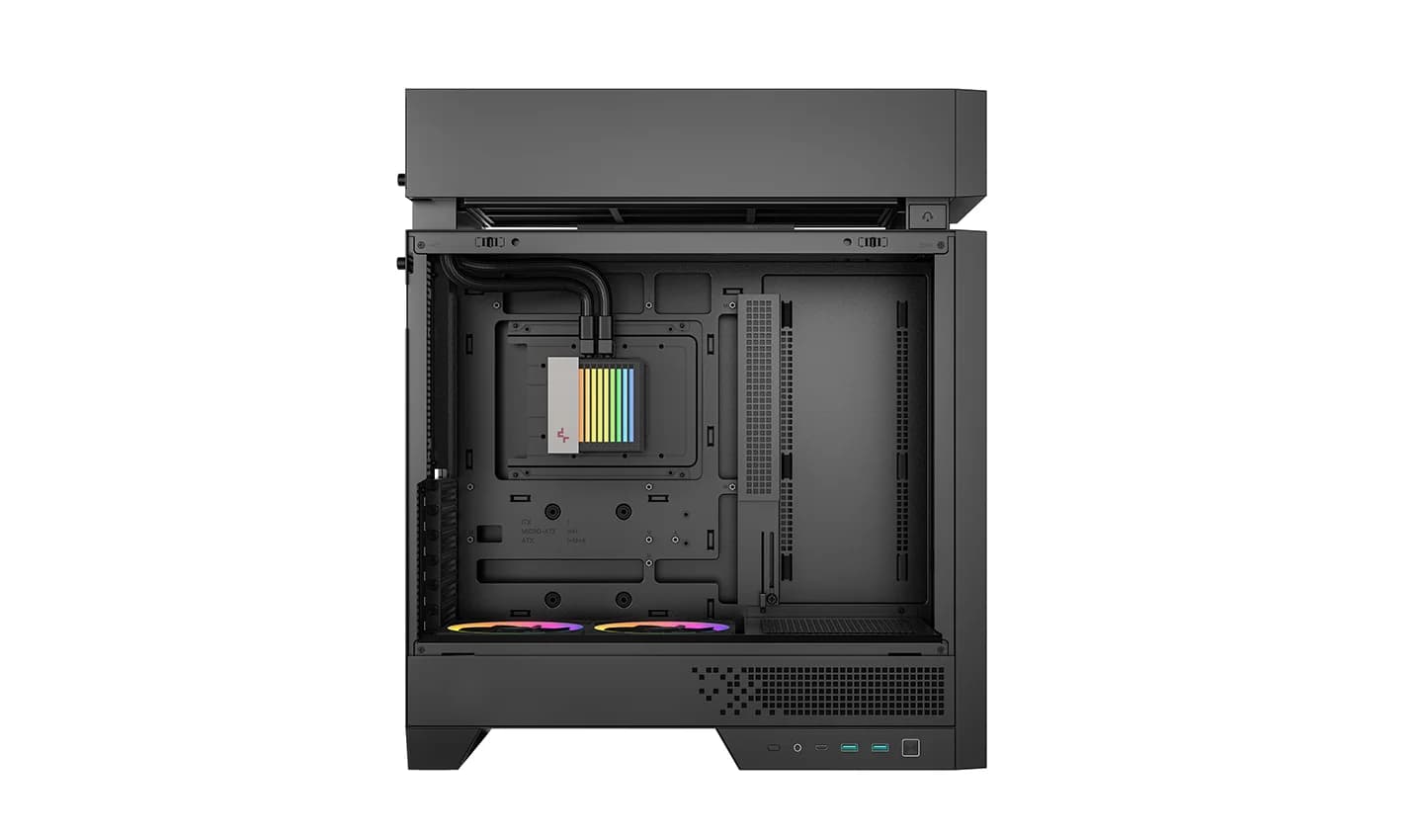

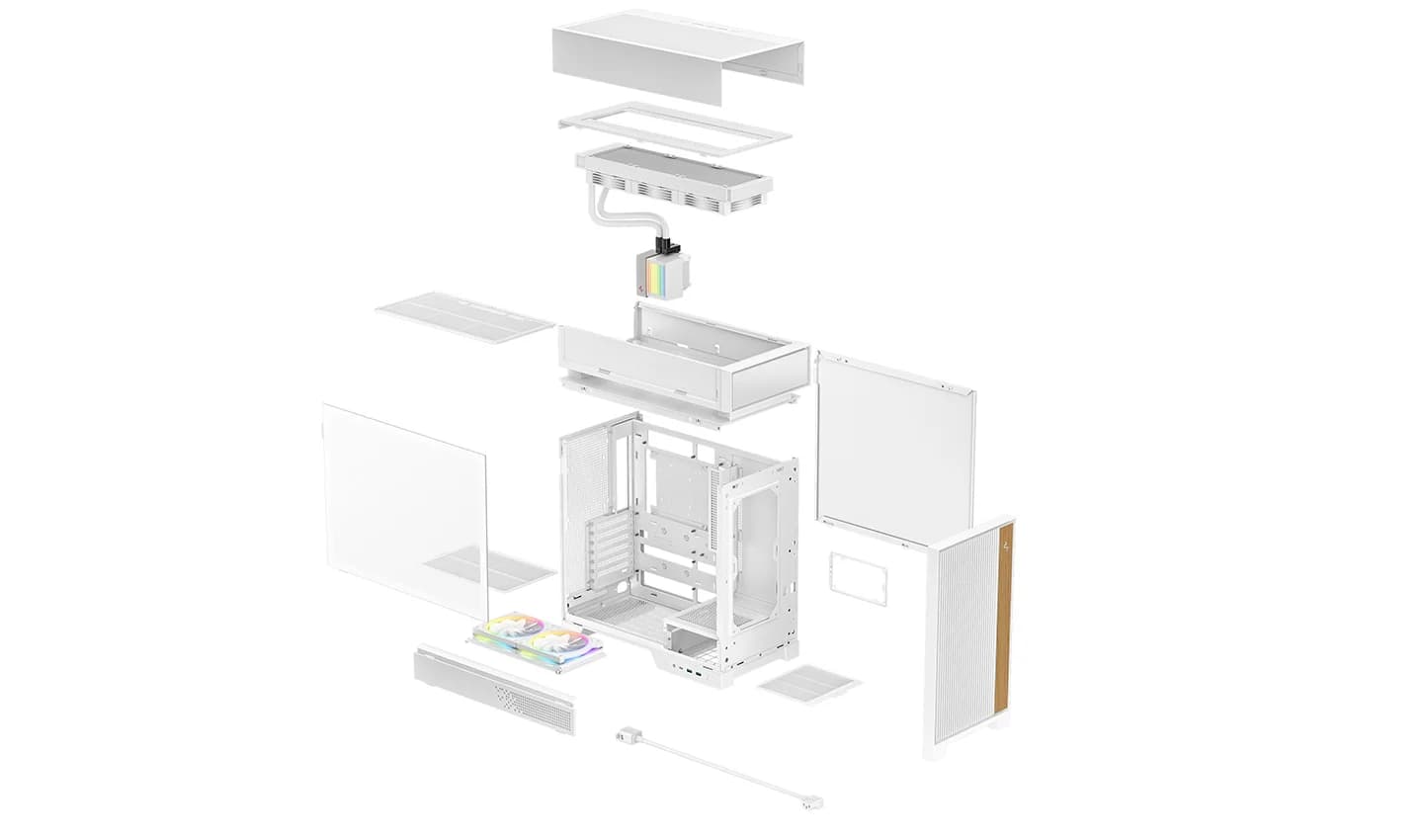

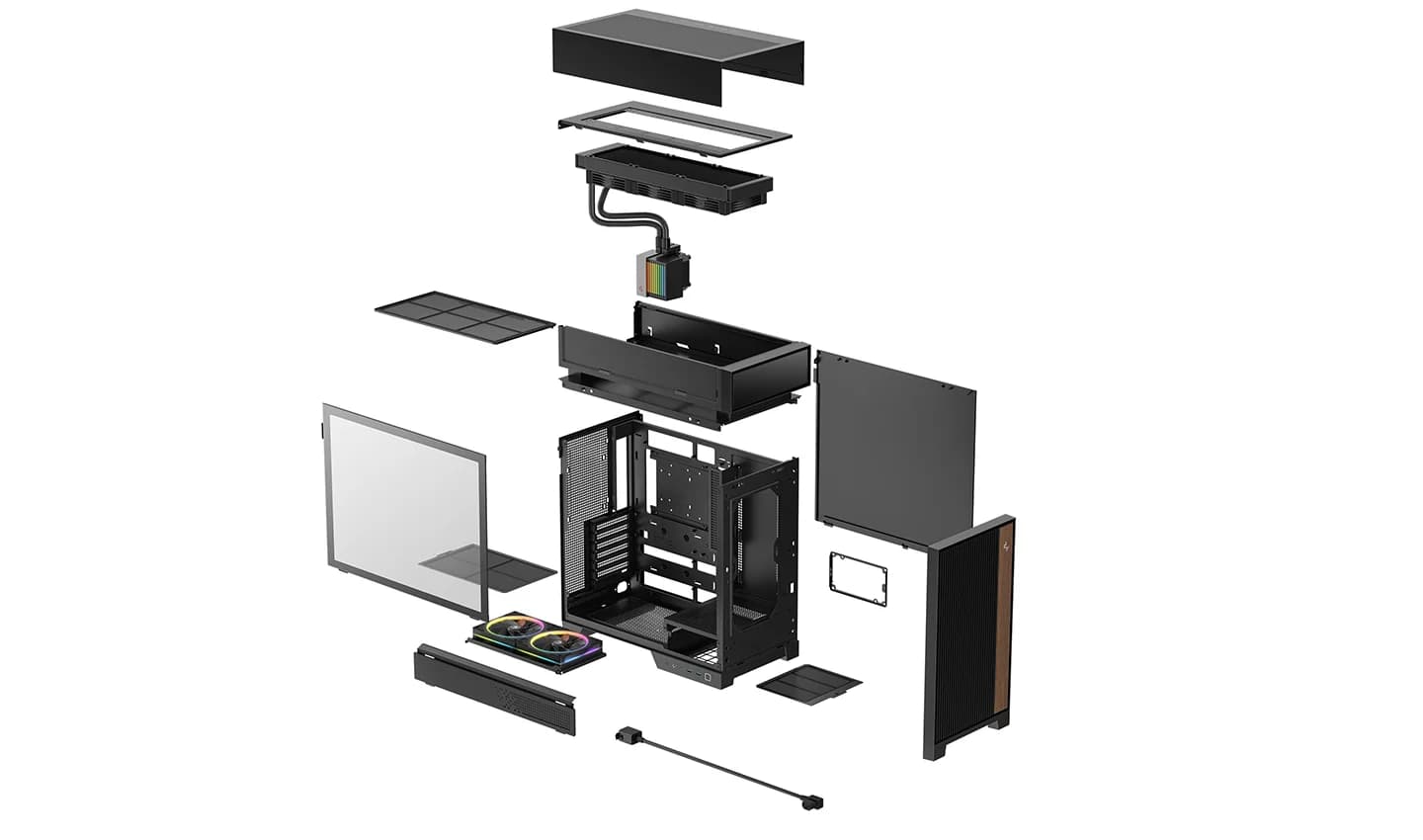

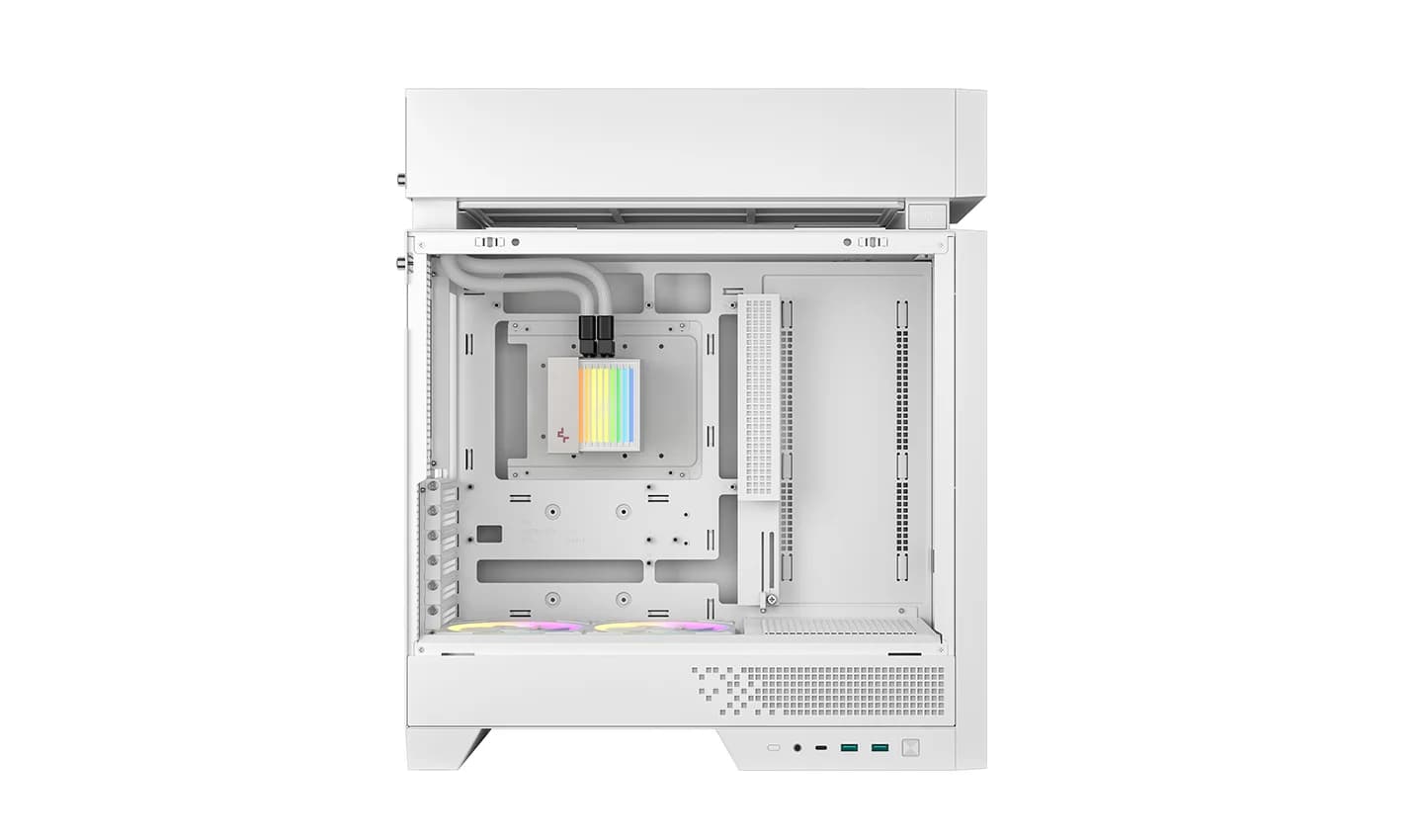

CL6600 keeps things cooler with a modular split-chamber layout. It places the radiator in its own zone, creating separate airflow paths for heat-generating components and letting the whole system run at its best.
BALANCE IN LAYERS

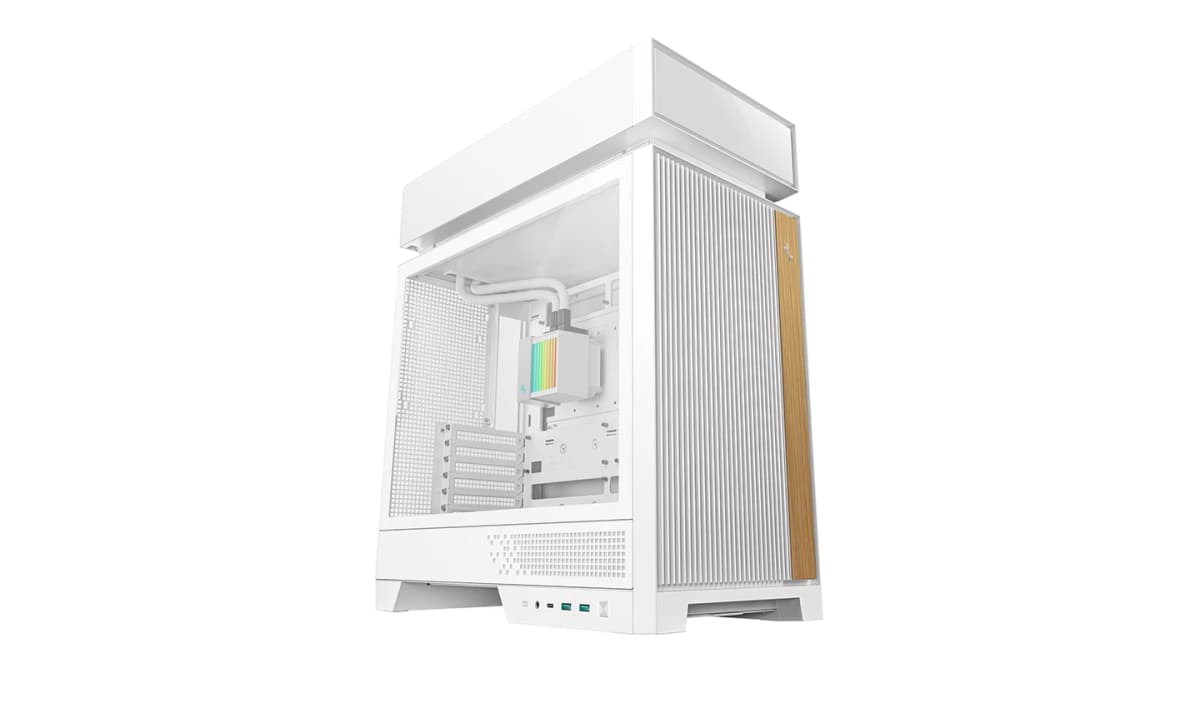

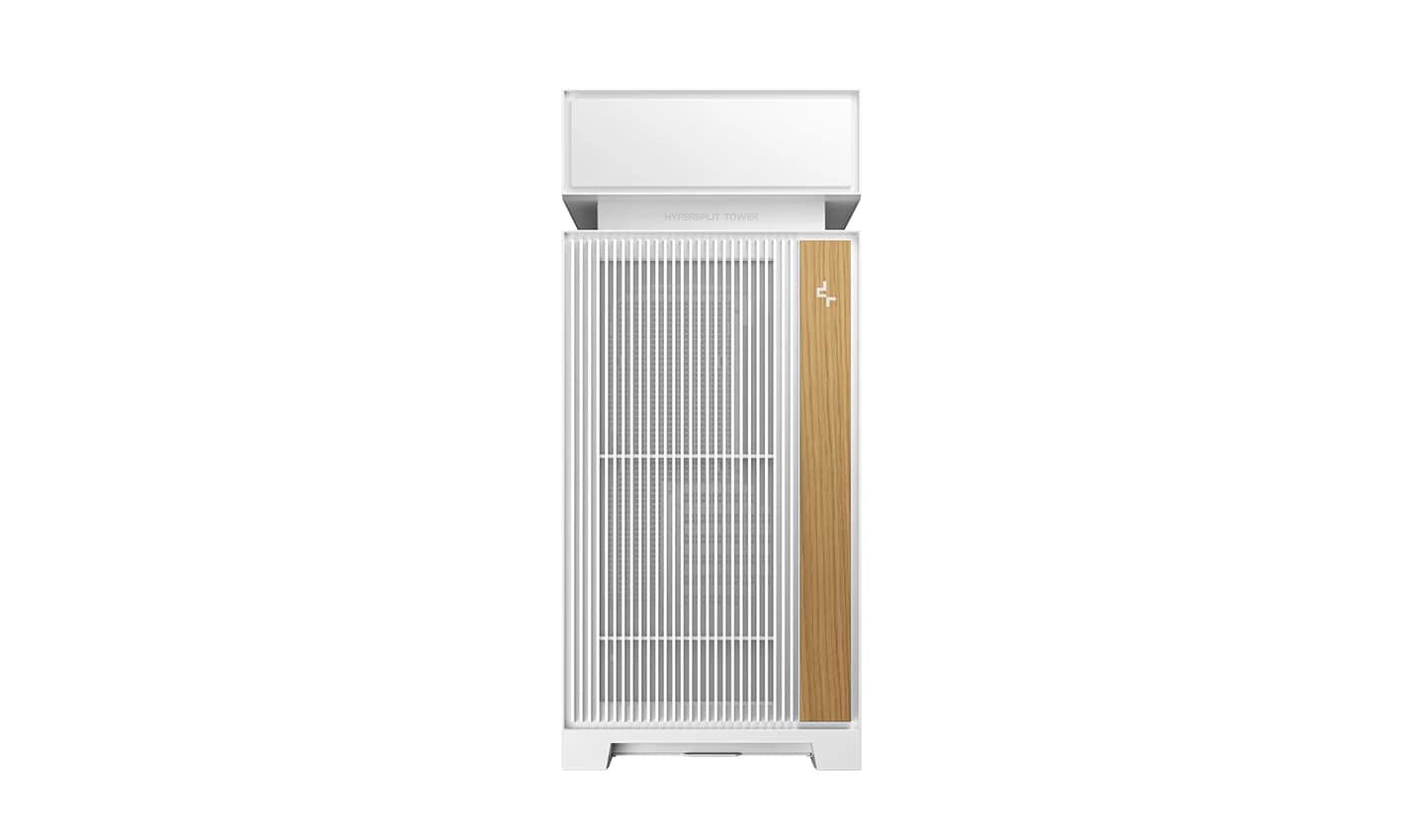

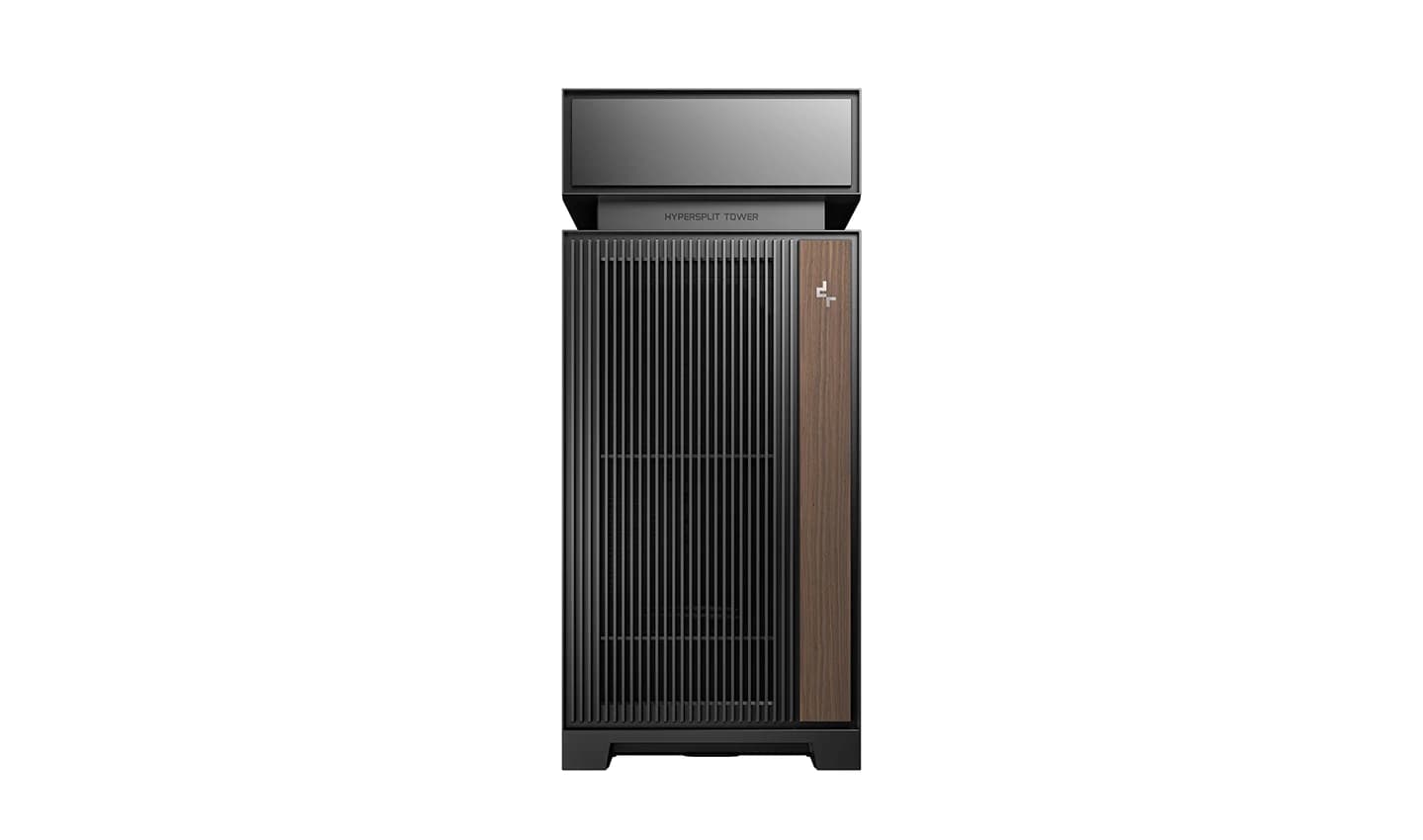

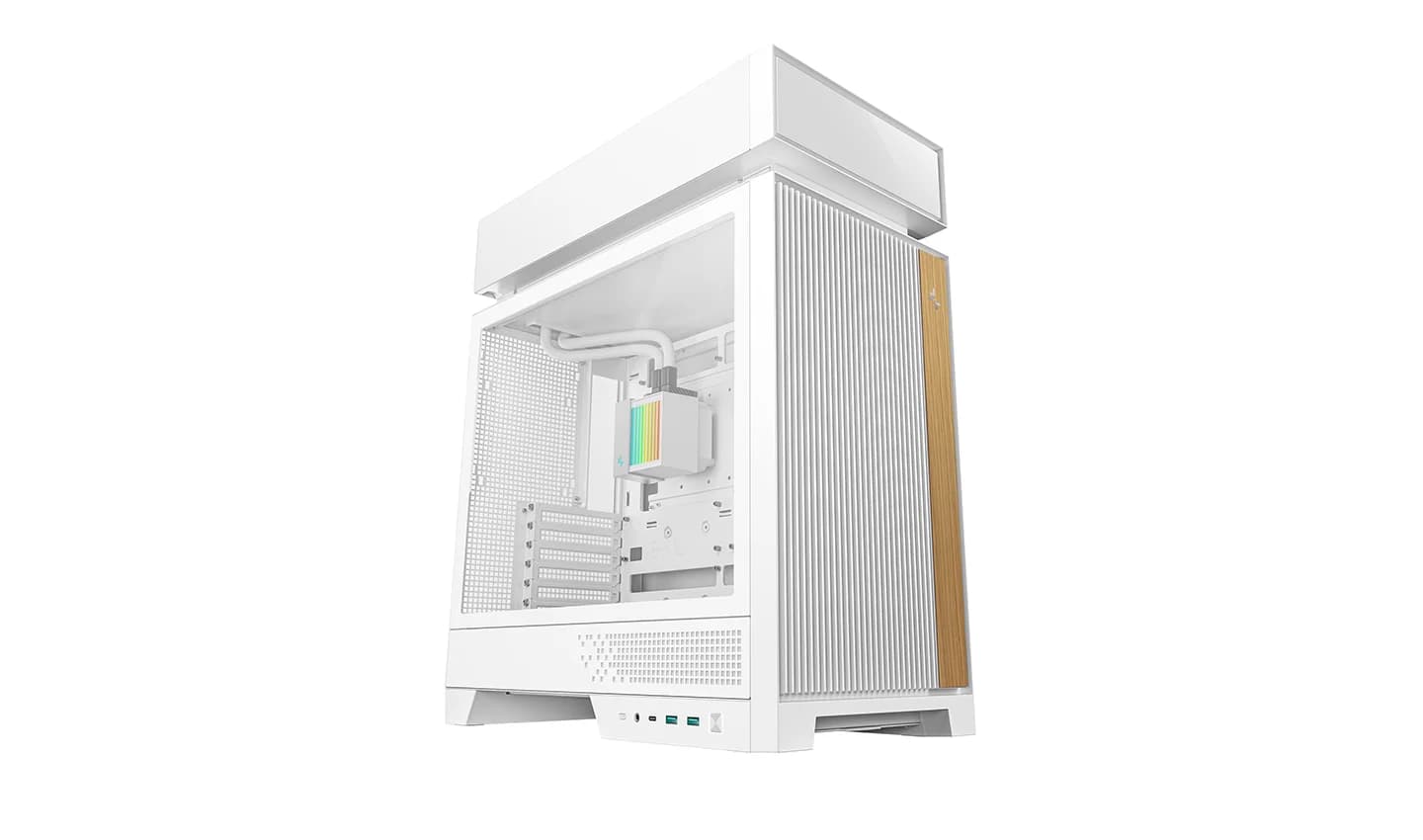

A raised top chamber redefines the overall silhouette while keeping space organized. Vertical grille bars at the front provide natural ventilation and create visual rhythm, with real wood adding an organic finish to the clean, modern aesthetic.
*The wood grain pattern may vary depending on the actual product.
READY TO HANDLE MORE
CL6600 packs premium cooling out of the box — see exactly what’s ready to kick off your build.
Includes 2xFL12R SE ARGB Fans
Dual reverse-blade fans at the bottom nest lower to pull in fresh air without crowding your build.
WIDE COOLING FLEXIBILITY
Maximize your cooling potential with support for 360mm AIOs and up to eight 120mm fans in total. Three 120mm fans or two 140mm fans can be mounted above the radiator in push-pull configuration (fan–radiator–fan).
BUILD WITH CONFIDENCE
CL6600 gives high-end builds plenty of room, fitting GPUs up to 388mm, tall air coolers to 175mm, and standard ATX PSUs up to 160mm. Back-connect motherboard support and 7 expansion slots make future upgrades simple.
Cable Management Made Easy
35mm of routing space, Velcro straps, and tidy covers make cable routing easy for everyone.
Built-In Headset Hook
A hidden pop-out hook in the connecting bridge keeps your desk clear.
Quick-Release Panels
All panels remove without tools for quick, full access anytime.
GPU Support Included
Comes with a sturdy bracket to keep your graphics card secure.
Front-Mounted PSU
The PSU mounted horizontally at the front, with cable connections face the back of the motherboard.
Accessible I/O Ports
2xUSB 3.0 ports, a Gen 2 Type-C port, and an audio jack, all placed within easy reach.
SPECIFICATIONS
Product Dimensions | 457.5×235×533.5mm(L×W×H) |
Net Weight | 11.82Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX / ATX |
ATX(Rear Connector)/Micro-ATX(Rear Connector) | |
Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
3.5" Drive Bays | 2+1 |
2.5" Drive Bays | 1+1 |
Expansion Slots | 7 Slots |
Pre-Installed Fans | Bottom: 2×120mm ARGB（Reverse Blade） |
Fan Support | Top: 3×120mm/2×140mm |
Front: 2×140mm | |
Rear: 1×140/1×120mm | |
Bottom: 2×120mm | |
Radiator Support | Top: Pre-Installed 360mm |
Front: NA | |
Rear: 120mm | |
CPU Cooler Height Limit | 175mm |
GPU Size Limit | 413mm/388mm(With Front Fan) |
Power Supply Type | ATX PS2（maximum length: 160mm）/SFX/SFX-L |
Radiator Dimensions | 402×120×27 mm |
Radiator Material | Aluminum |
Tube length | 250 mm |
Pump Dimensions | 118×80×76 mm |
Pump Speed | 2500~3400 RPM±10% |
Pump Connector | 4-pin PWM |
Pump Rated Voltage | 12 VDC |
Pump Rated Current | 0.29 A |
Pump Power Consumption | 3.48 W |
Fan Dimensions | 120×120×25 mm |
Fan Speed | 500~2500 RPM±10% |
0 rpm<5 % PWM | |
Fan Airflow | 73.41 CFM |
Fan Air Pressure | 4.69 mmAq |
Fan Noise | ≤35.63 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Fluid Dynamic Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.3 A |
Fan Power Consumption | 3.6 W |
LED Type | Addressable RGB LED |
LED Connector | 3-pin(+5V-D-G) |
LED Rated Voltage | 5 VDC |
LED Power Consumption | 1.7 W（PUMP） |
EAN | 6.93341E+12 |
P/N | R-CL6600-BKNNA0-G-1 R-CL6600-WHNNA0-G |
