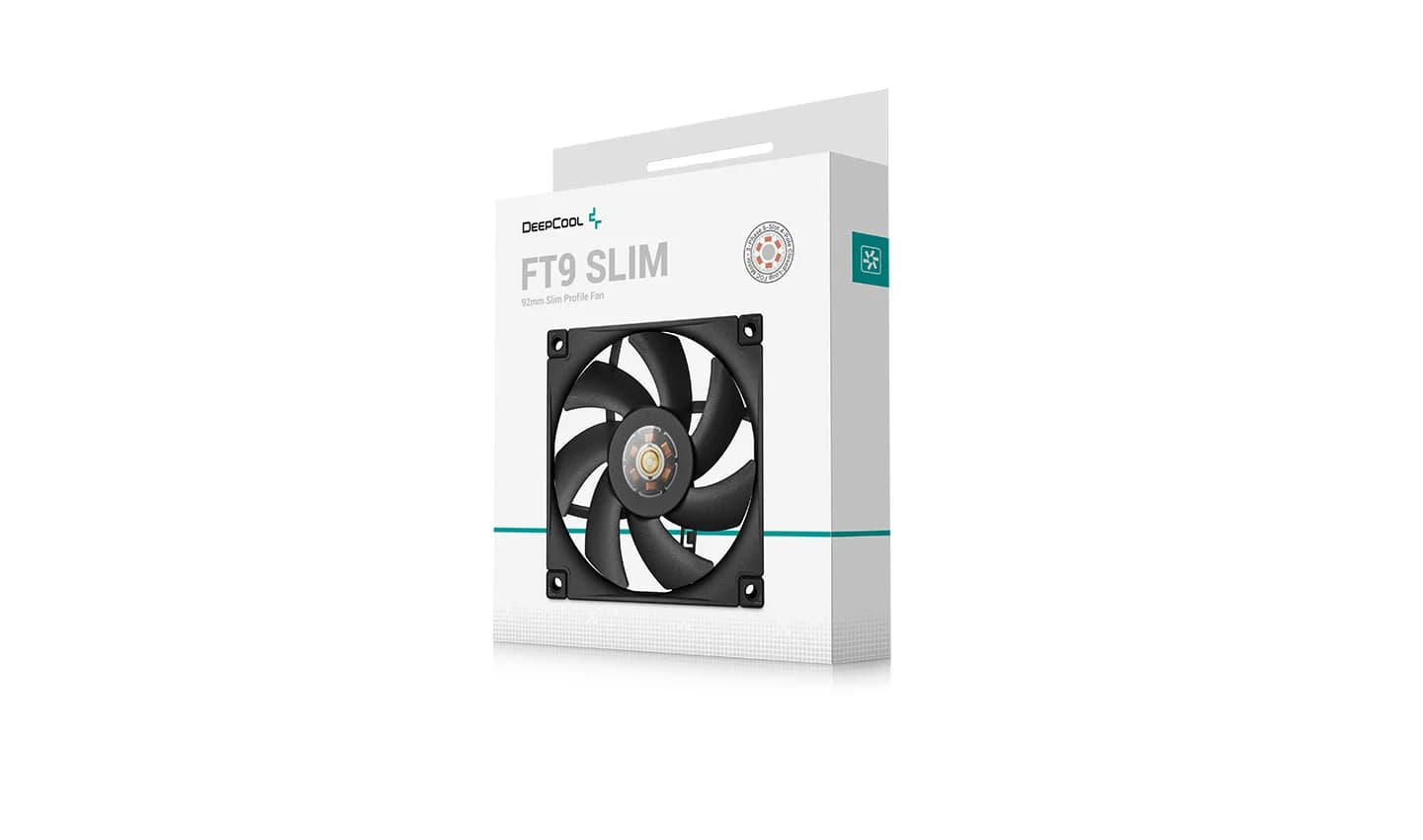

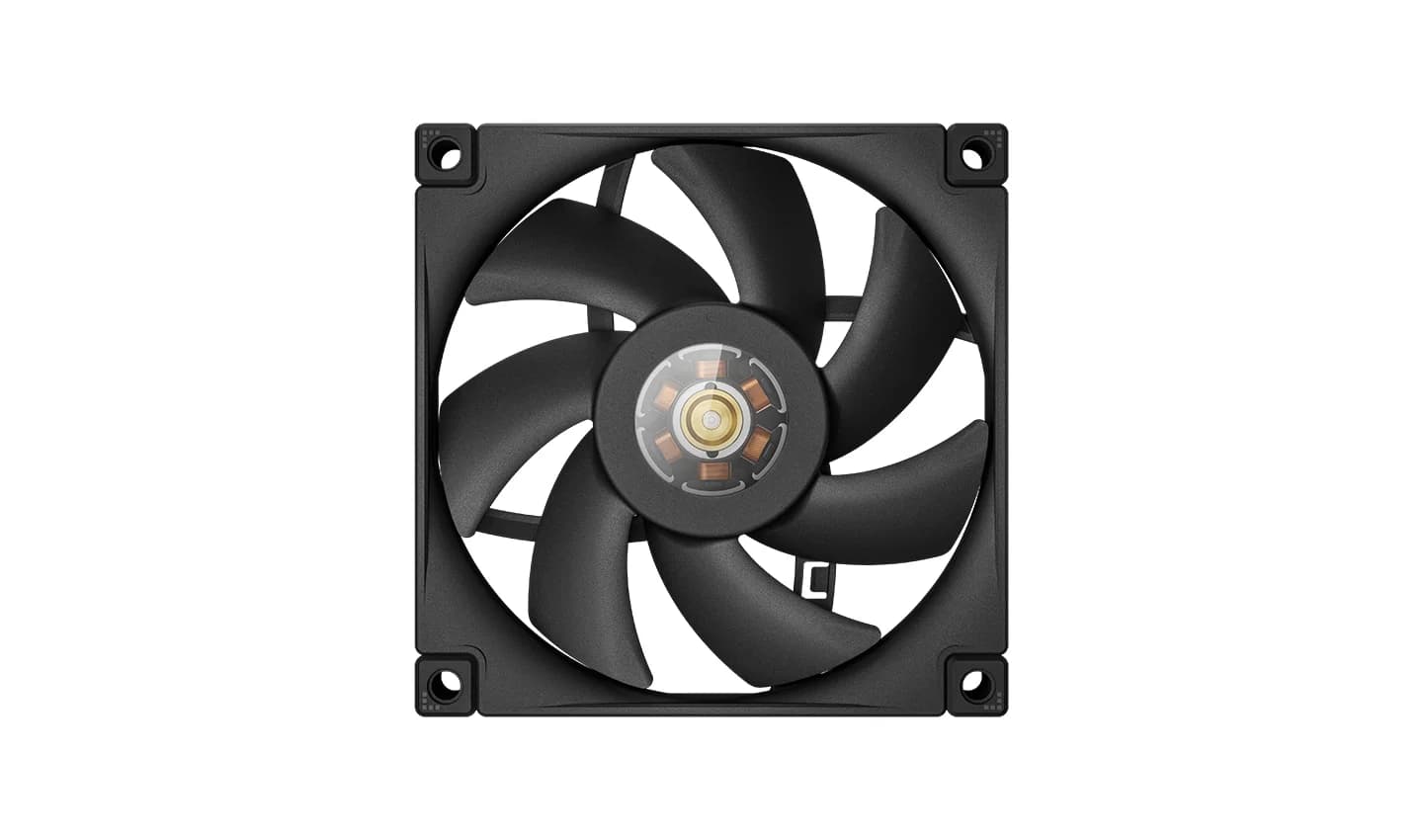

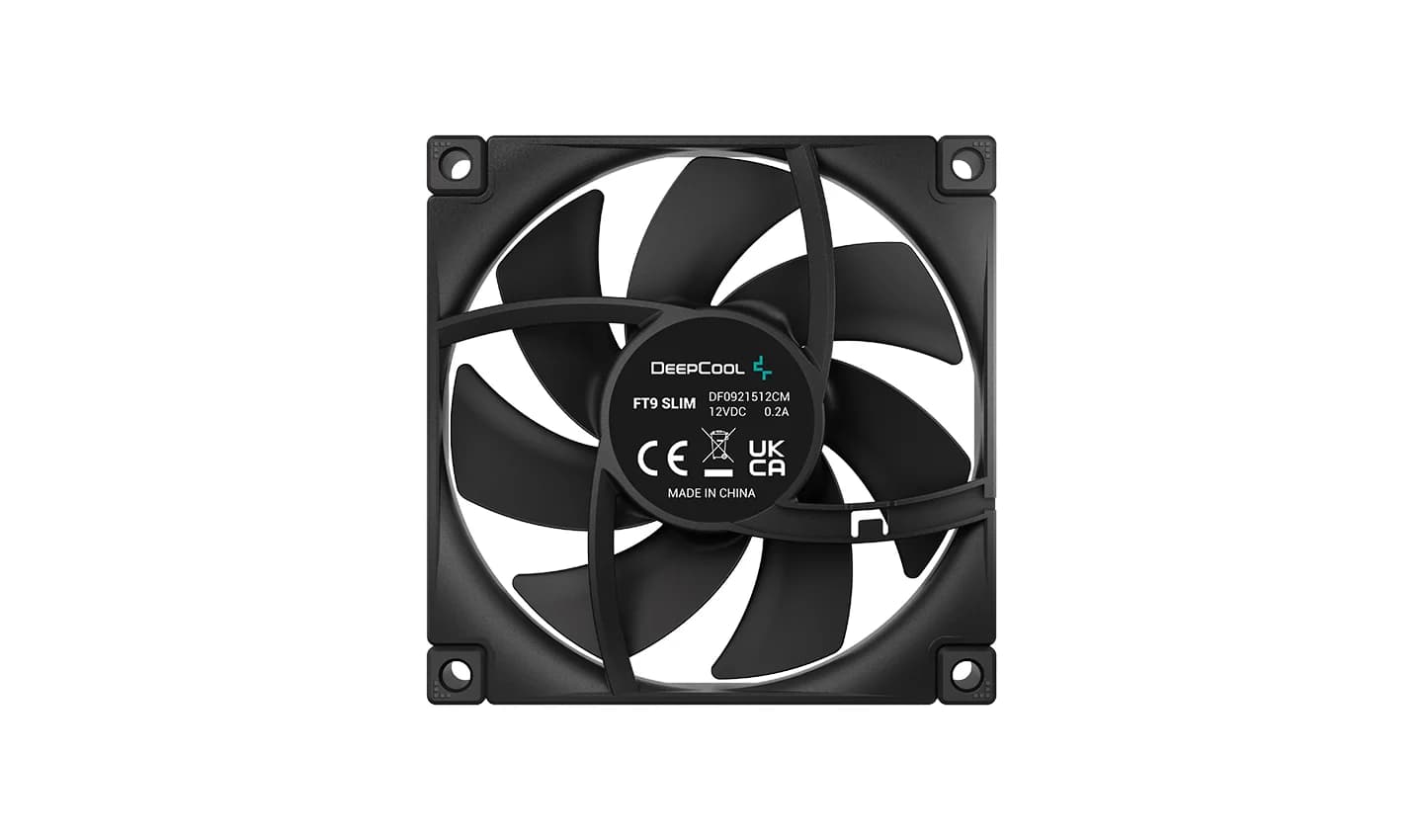

DEEPCOOL FT9 SLIM
The DeepCool FT9 SLIM is a high-performance 92mm thin-profile PWM fan with excellent cooling power and silent operation—a great choice for CPU cooling situations where clearance is at a premium.
Slimmed Down Profile
With a thickness of 15mm, the FT9 SLIM is the most advantageous fan to use in small form factor systems.
Small But Capable
Don't let the slim profile fool you; the FT9 SLIM fan provides all the performance you would expect from an elite 25mm thick cooling fan. The high static pressure and relatively low noise levels make each fan a premium choice for CPU coolers.
Dynamic PWM Range - 500 - 2950 RPM
Maximum Static Pressure - 4.8 mmAq
Max Airflow - 31.18 CFM
Noise Level - ≤23.2 dB(A)
Advance Design You Can See!

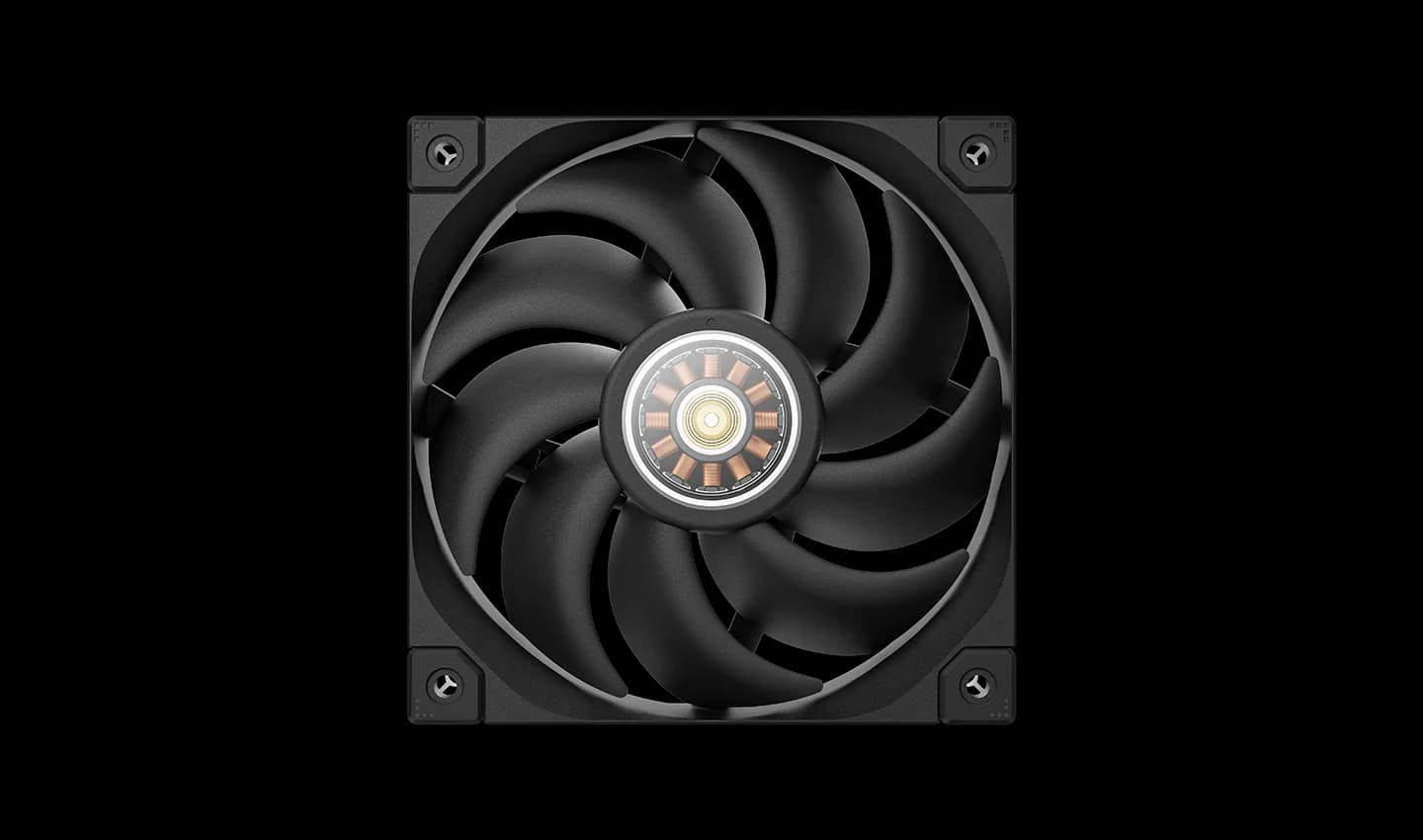

A window into the 3-phase 6-pole fan motor and FDB bearing design provides crystal-clear confidence in the quality of the FT9 SLIM fan. The magnets have been upgraded to neodymium, and the FOC closed-loop control increases stability. Subtle white LEDs are positioned under the bearing to highlight the craftsmanship of the FT SLIM fans.
Reduced Vibrations!
Full-coverage rubber pads at each corner guarantee minimal fan vibration. The newer design provides quieter operation, increases performance, and extends the serviceable life of each fan.
SPECIFICATIONS
Fan Dimensions | 92×92×15 mm(L×W×H) |
Net Weight | 76 g |
Fan Speed | 500±200 RPM-2950 RPM±10%（MAX） |
Fan Airflow | 31.18 CFM |
Fan Air Pressure | 4.8 mmAq |
Fan Noise | ≤23.2 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Fluid Dynamic Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.15 A-0.45 A(MAX） |
Fan Power Consumption | 5.4 W |
LED Type | WHITE LED |
EAN | 6933412710691 , 6933412710745 , 6933412711032 , 6933412711049 |
P/N | R-FT9SLIM-BKWPN1-G , R-FT12-BKWPN1-G , R-FT12-BKWPN3-G , R-FT12-WHWPN3-G |
