Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management. Less turbulence thanks to aerodynamic stator struts 6 individually addressable hub-mounted RGB LEDs Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

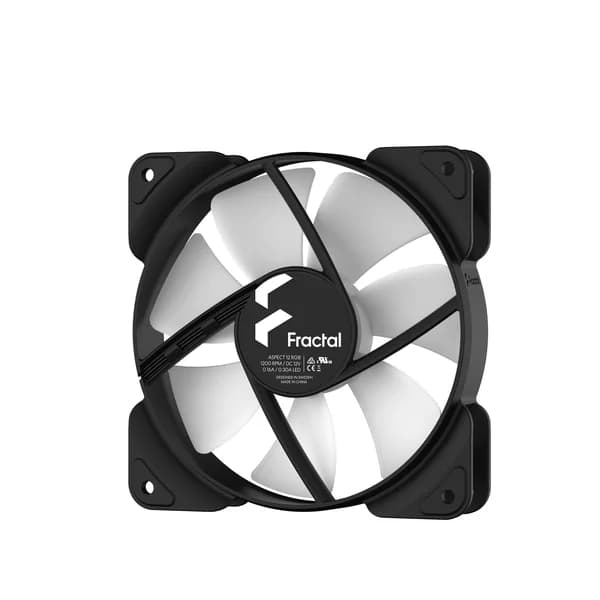

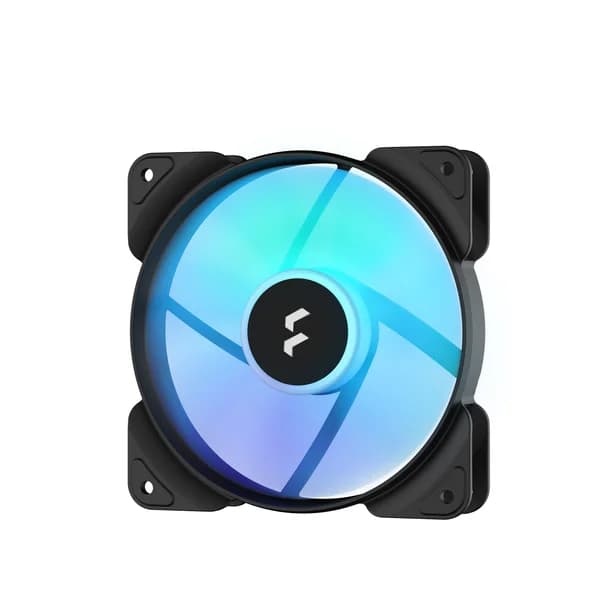

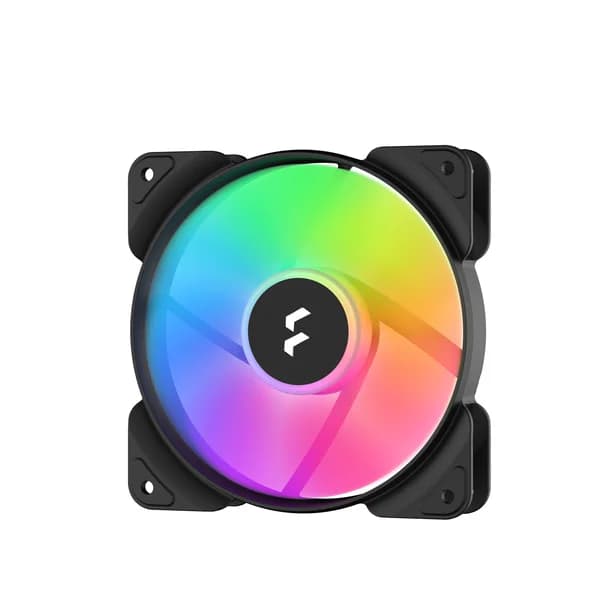

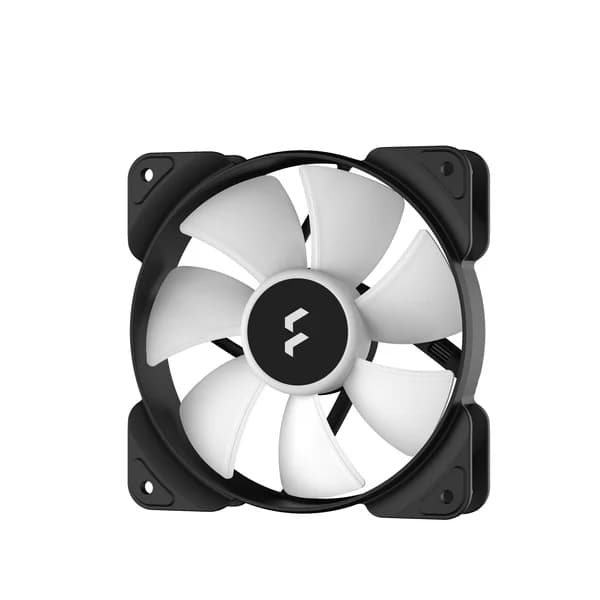

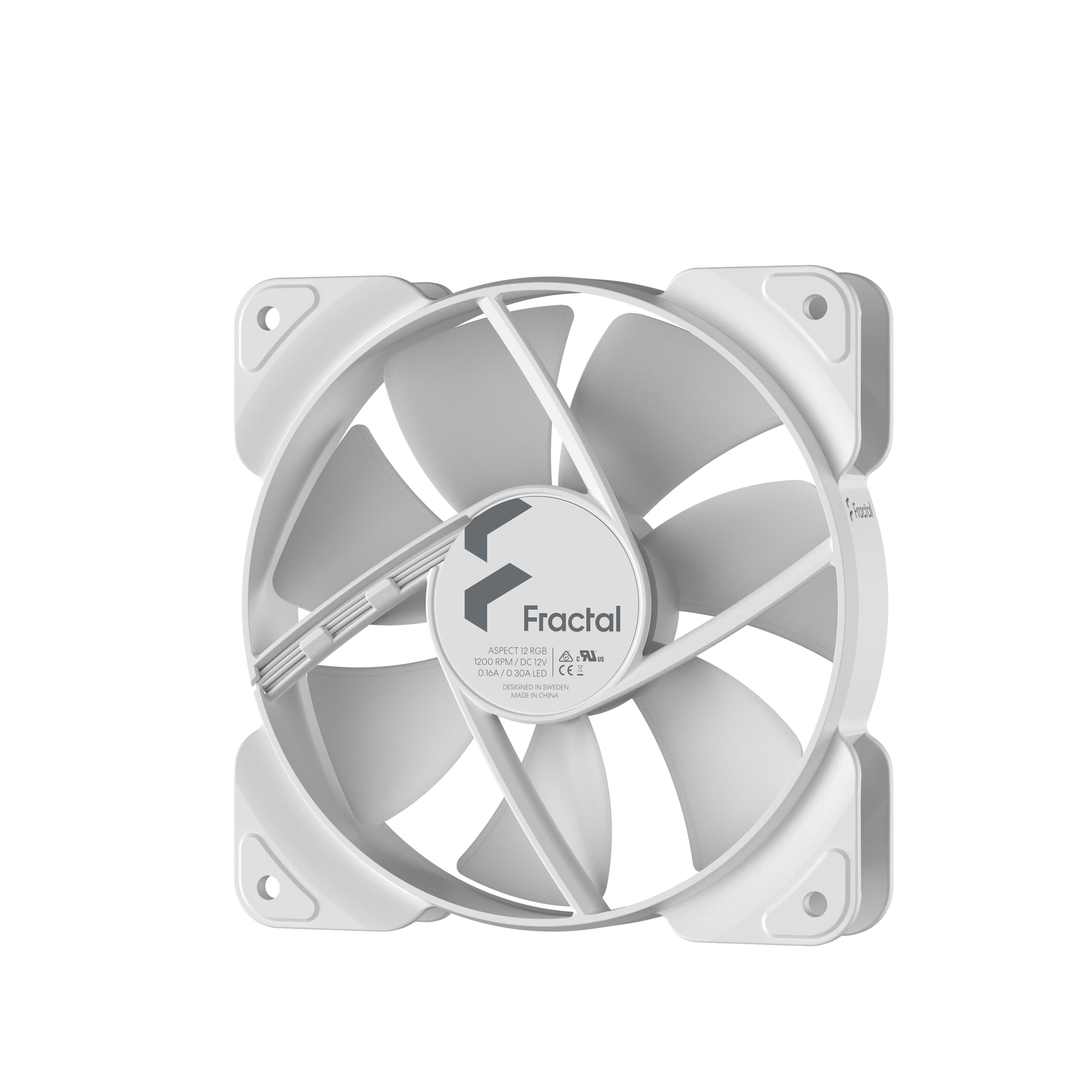

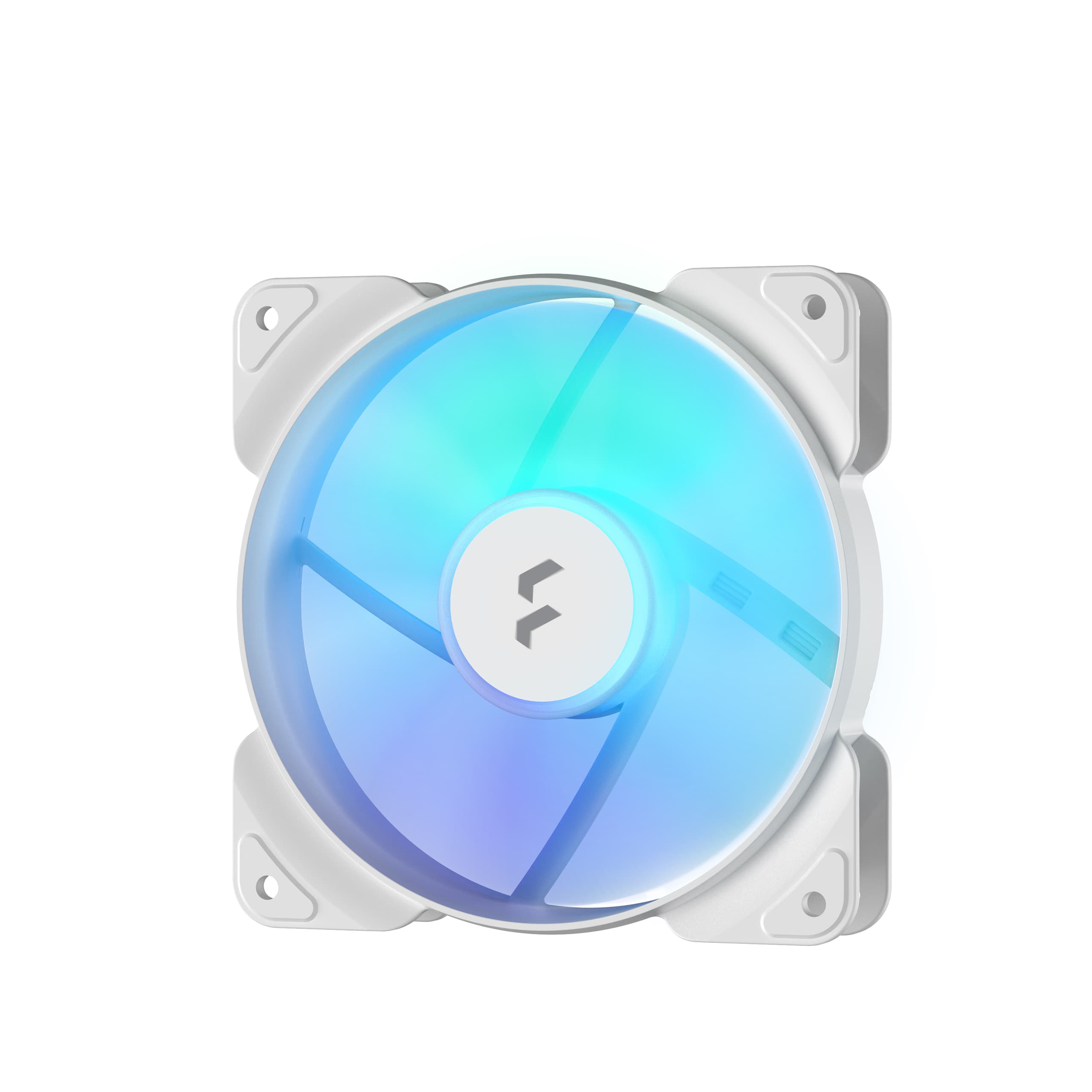

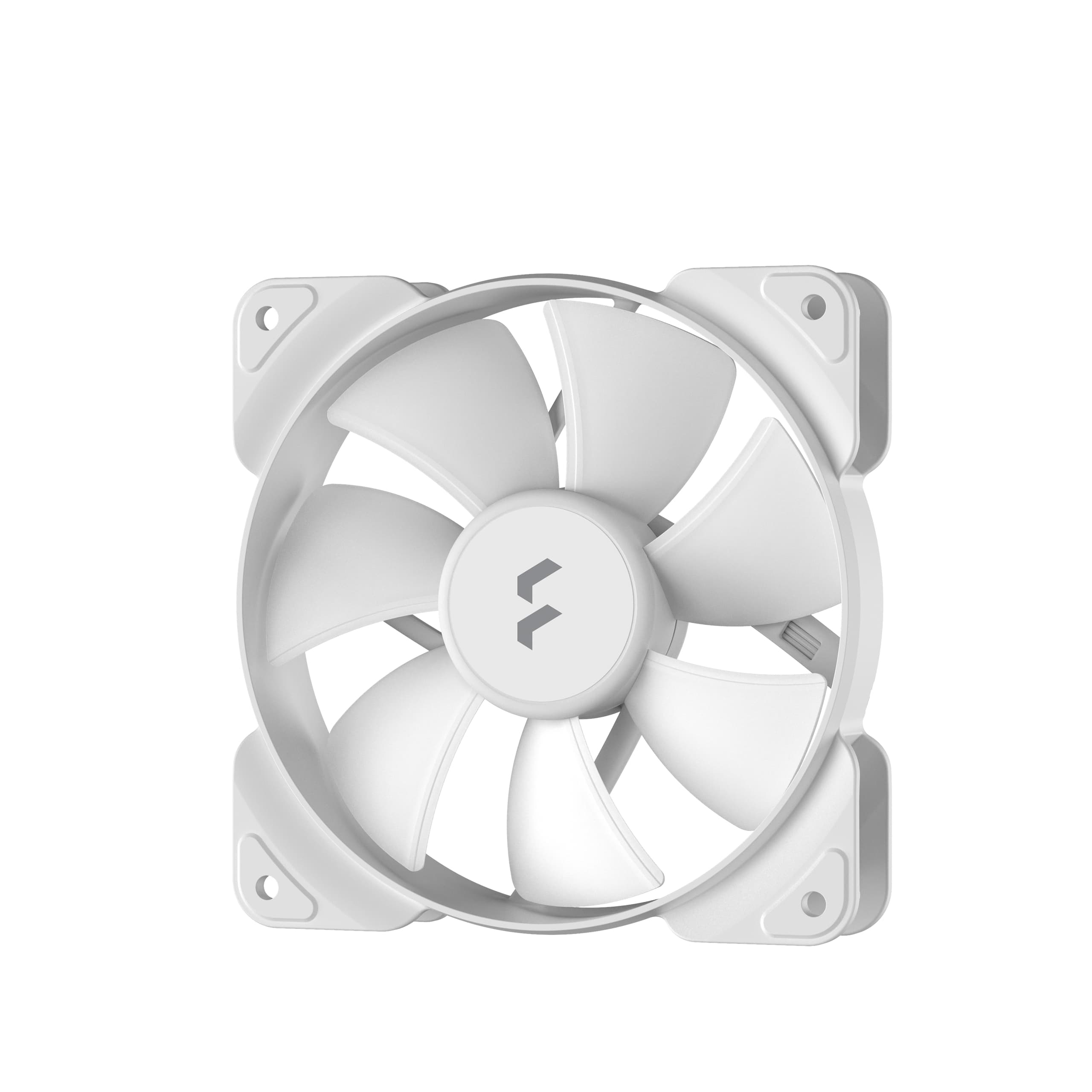

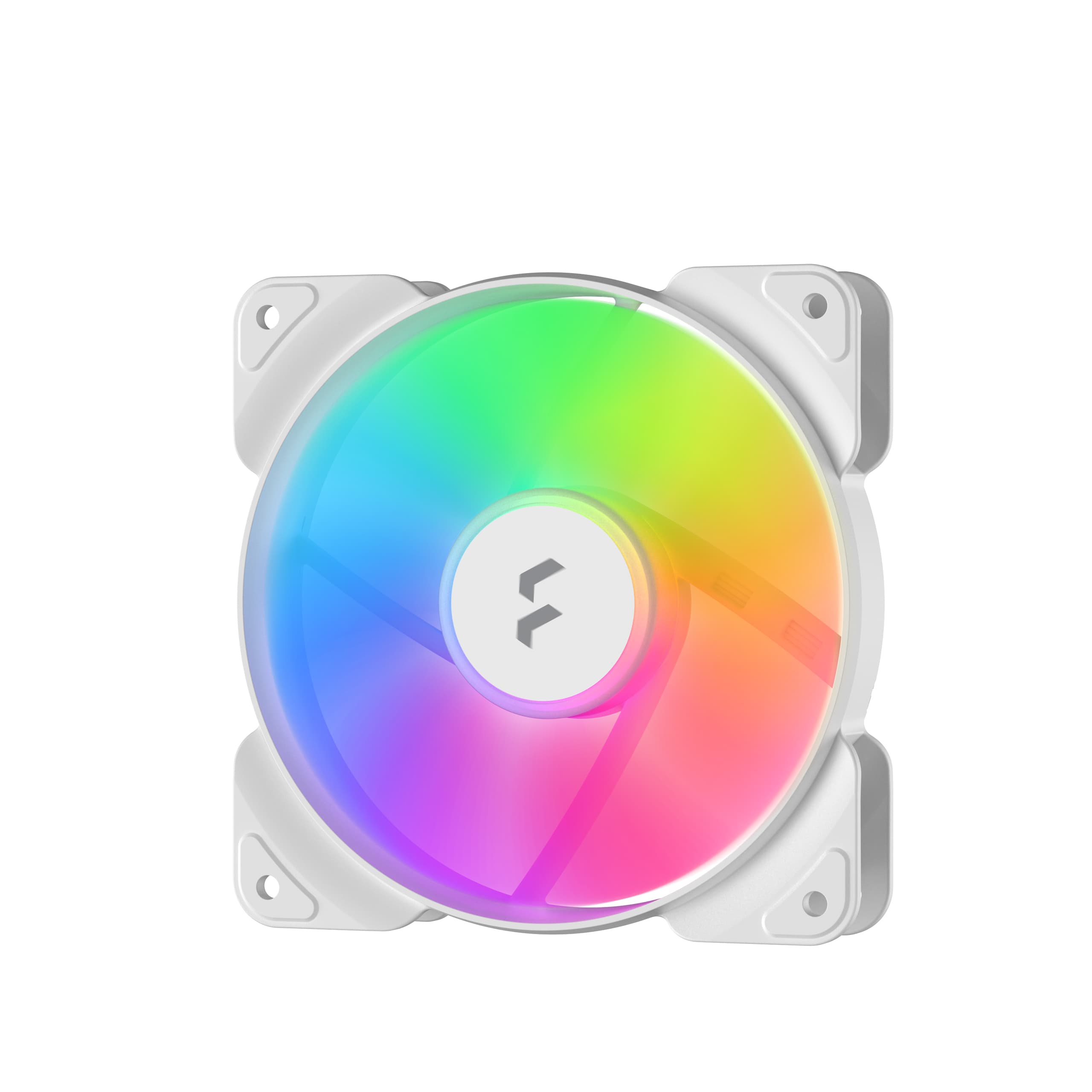

Let your system shine with six individually addressable hub-mounted RGB LEDs The aerodynamic stator struts decrease turbulence and noise caused by flowing air The Aspect frame offers aesthetics without compromising on performance
More efficient than standard sleeve bearings
Introducing a micro-turbulent layer for enhanced blade efficiency

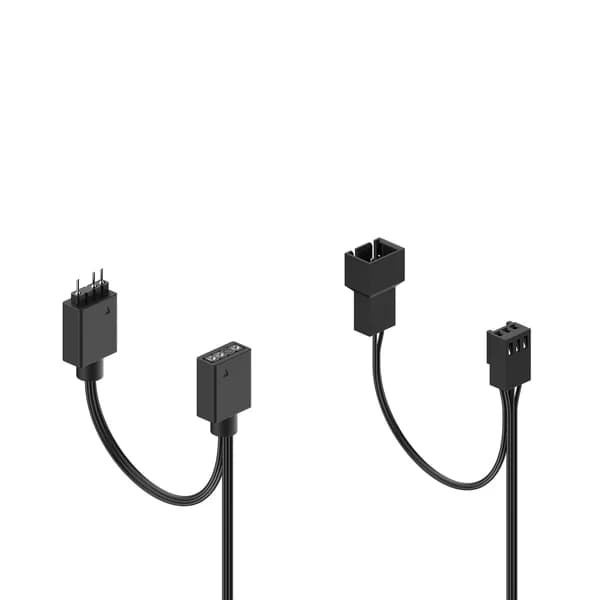

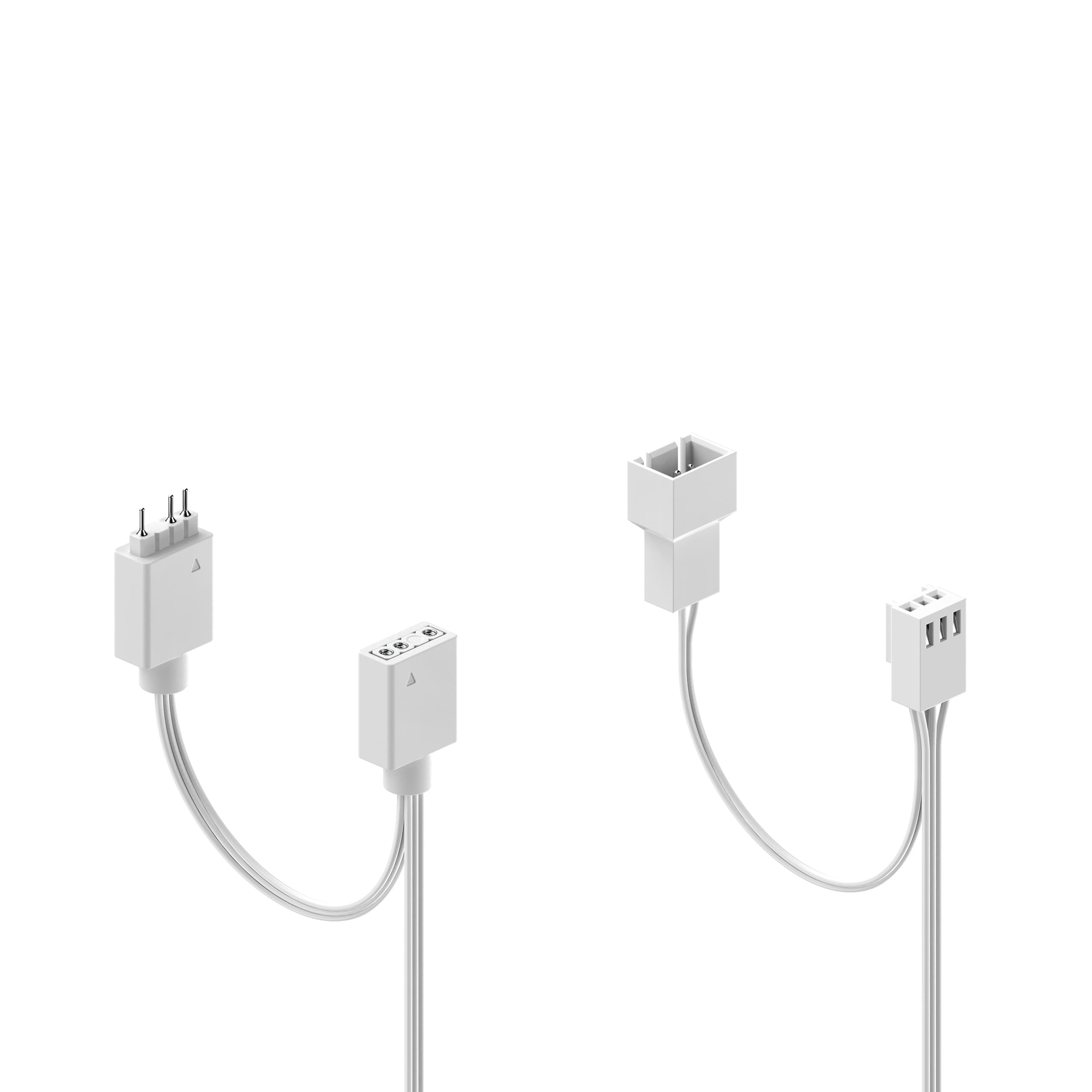

Simplify cable management by using the Aspect chain feature for multiple units
Category | Specification |
|---|---|
Size | 120 x 120 x 25 mm |
Screw Hole Pattern | 105 x 105 mm |
LED Type | Addressable RGB |
Power Connector | 3-pin |
Bearing Type | Rifle |
Number of Blades | 7 |
Rotational Speed | 1200 RPM |
Noise Level | 18.3 dB(A) |
Max Airflow (CFM) | 32 CFM |
Max Airflow (m³/h) | 54.4 m³/h |
Max Pressure | 1.20 mm H₂O |
Typical Input Power (Fan) | 0.96 W |
Max Input Current (Fan) | 0.16 A |
Fan Input Voltage | 12 V |
Minimum Startup Voltage | 7 V |
LED Rated Voltage | 5 V |
LED Rated Current | 0.3 A |
LED Rated Input Power | 1.5 W |
MTTF (Fan) | 90,000 hours |
Unit Weight | 135 g |
Cable Length | 500 mm |
Cable Type | Black ribbon (allows chaining) |
Package Contents | Aspect Fan, 4x Fan Screws (12x screws in 3-pack) |
Package Weight | 155 g (single) / 408 g (3-pack) |
Packaging Dimensions (including hanging tab) | 123 x 192 x 30 mm (single) / 123 x 192 x 87 mm (3-pack) |
Packaging Dimensions (excluding hanging tab) | 123 x 150 x 30 mm (single) / 123 x 150 x 87 mm (3-pack) |
EAN | Black: 7340172703310 / White: 7340172703556 / Black 3-pack: 7340172703518 |
UPC | Black: 843276103316 / White: 843276103552 / Black 3-pack: 843276103514 |
JAN | Black: 4537694287487 / White: 4537694288958 / Black 3-pack: 4537694288309 |
Product Code | Black: FD-F-AS1-1204 / White: FD-F-AS1-1208 / Black 3-pack: FD-F-AS1-1206 |
Warranty | 2 Years |
