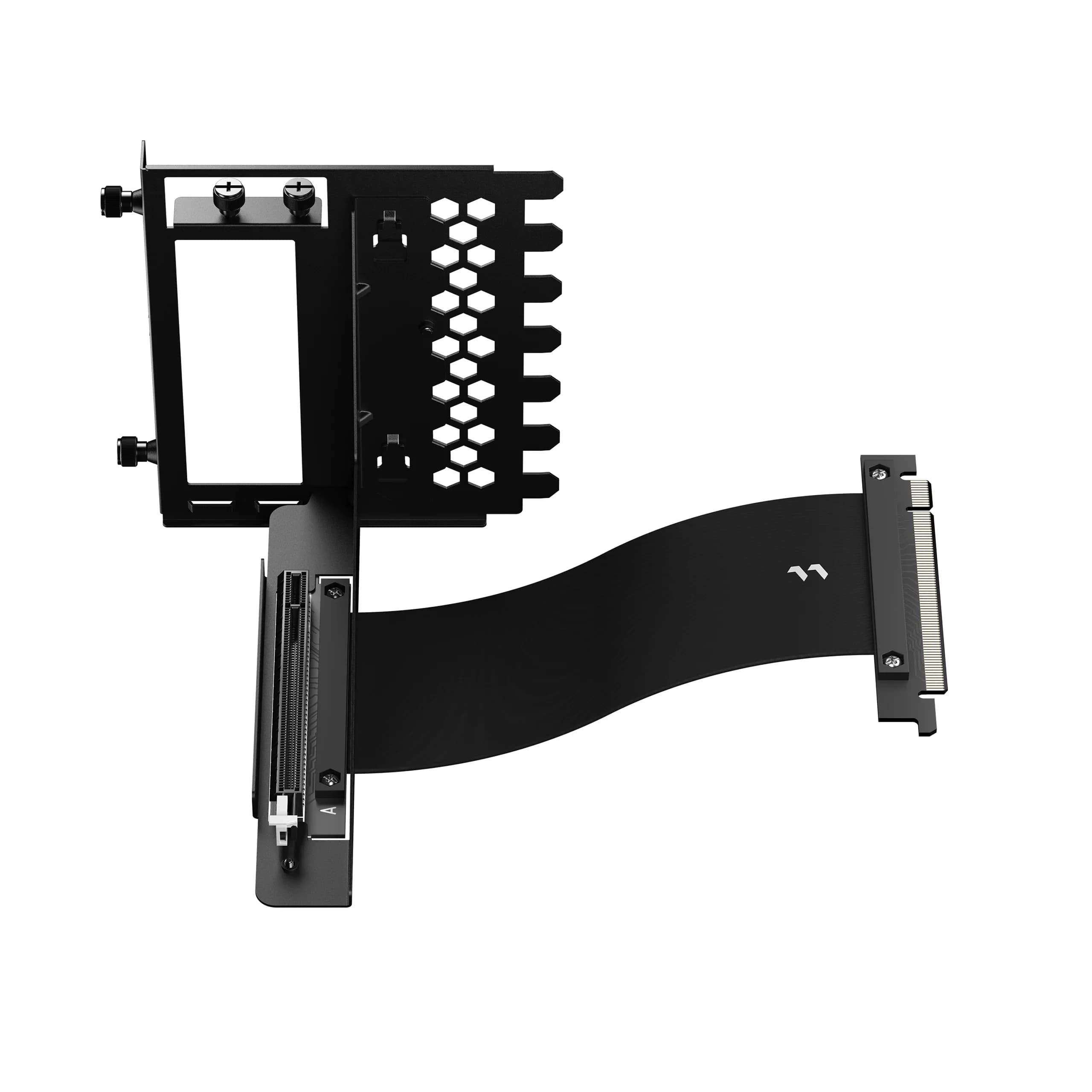

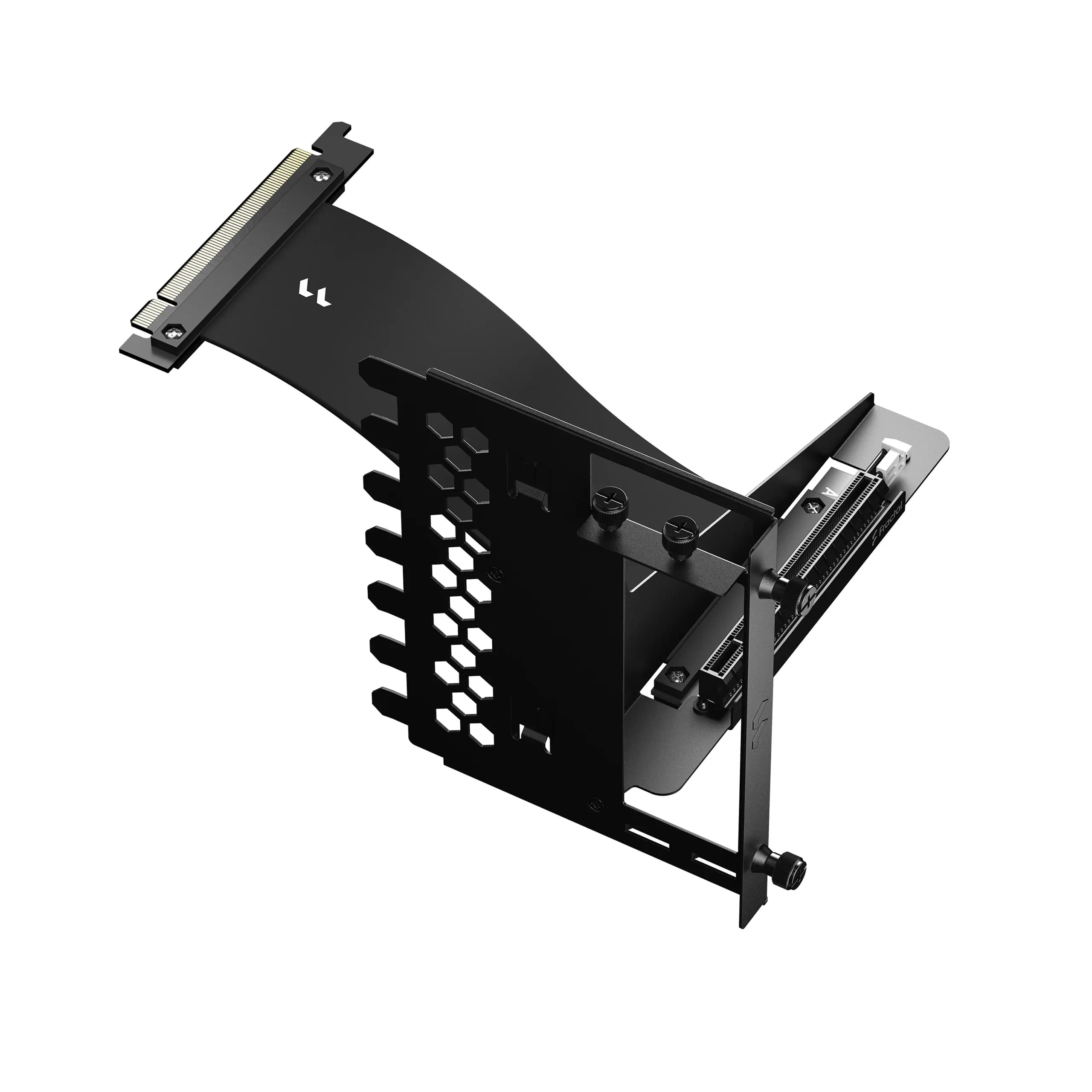

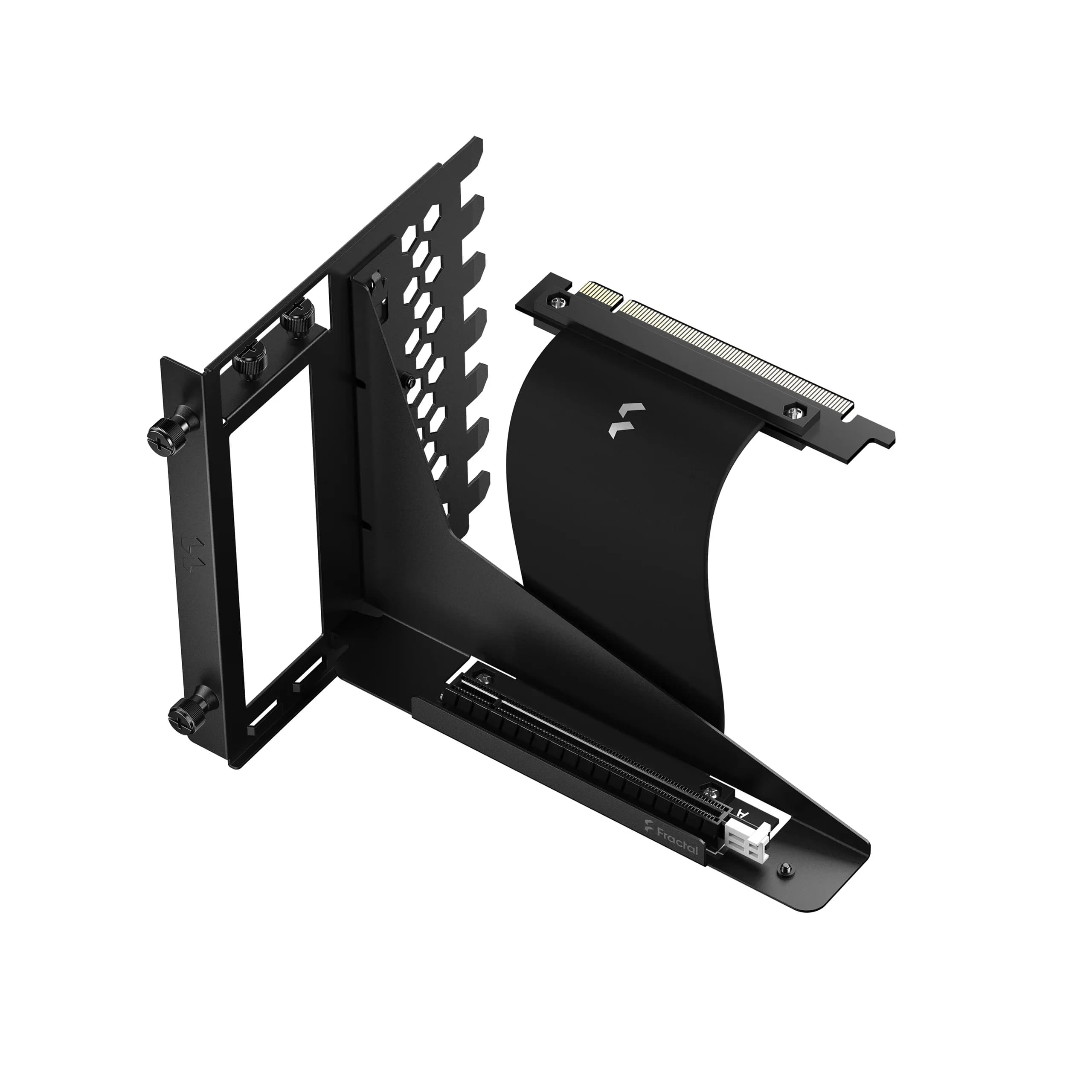

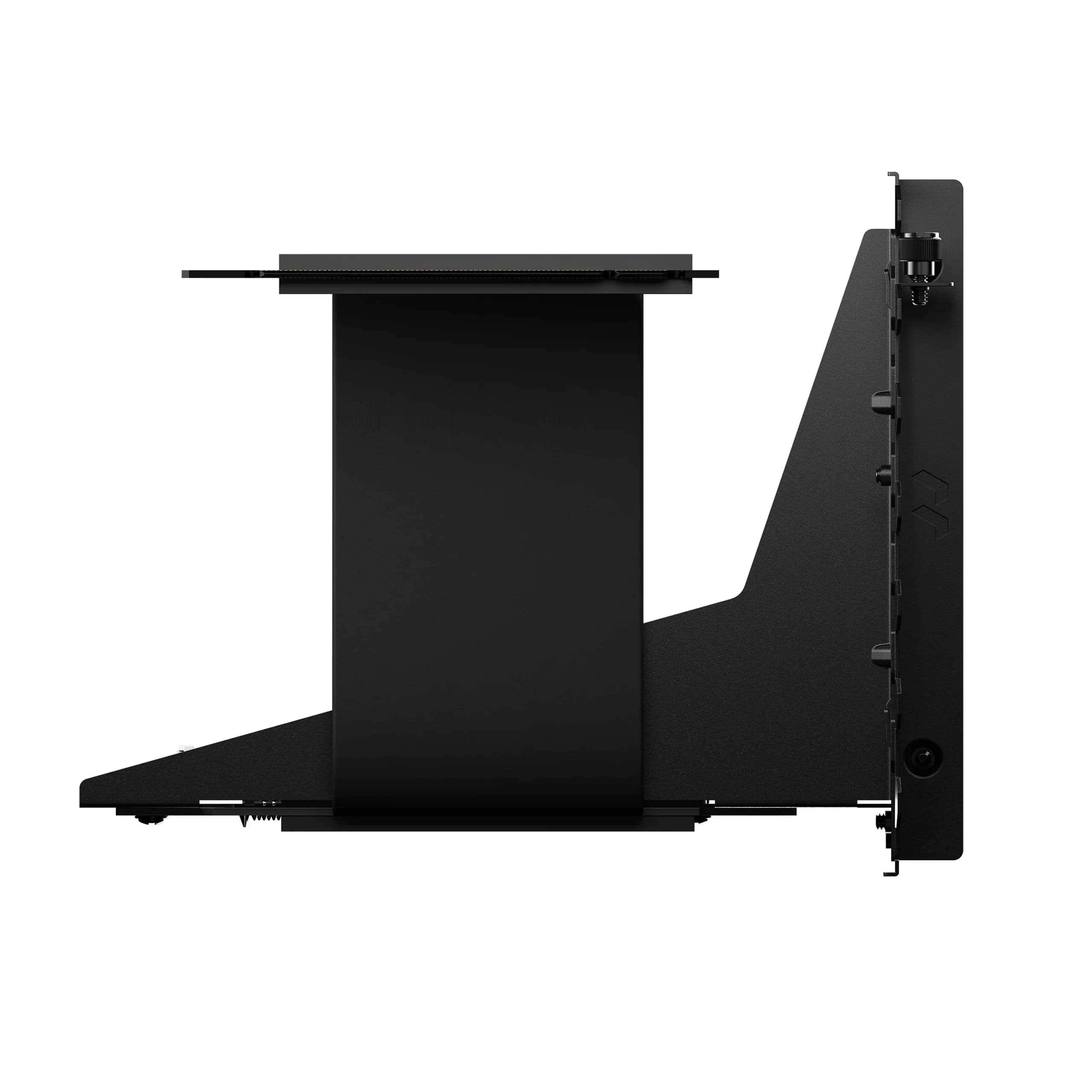

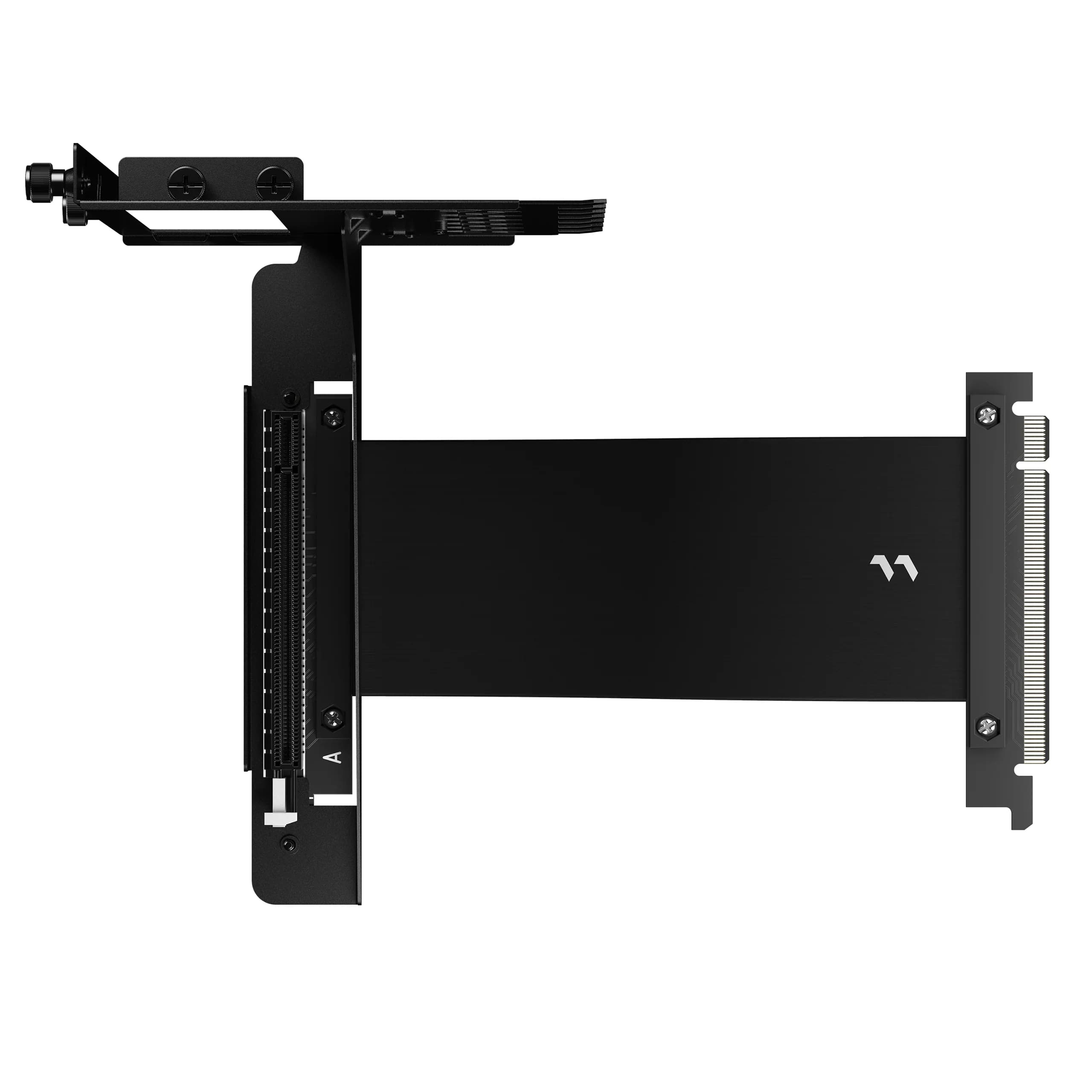

The Flex B-20 bracket is a great supplement to your case, allowing you to mount your GPU vertically. This makes Flex B-20 an attractive companion to select Fractal cases like the North, Define 7 Compact, Define 7, Define 7 XL, Meshify 2 Compact, Meshify 2, Meshify 2 XL and Torrent.
Features
Fits ATX cases with bridgeless expansion slot covers (no bars between slots), such as the North, Define 7 Compact, Define 7, Define 7 XL, Meshify 2 Compact, Meshify 2, Meshify 2 XL and Torrent
Supports full-length GPUs with single or dual-slot brackets and coolers of any size
Places the GPU away from the side panel
Fits ATX cases with bridgeless expansion slots (no bars between slots) like the North, Define 7, Define 7 XL, Meshify 2 and the Meshify 2 XL
Mounts easily with included captive thumbscrews
Cool as can be
Accommodates full-length GPUs with single or dual-slot brackets and coolers of any size
Places the GPU away from the side panel
Heavy-duty double-sided wiring delivers up to 3x the power of traditional riser cables.
Full PCIe 3.0 x16 support for a wide range of compatibility.
Specifications
GPU Support | Any PCIe-compatible card with single or dual-slot bracket (no height limit) |
Case Requirements | 7 available bridgeless expansion slots (no bars between covers) |
Captive Thumbscrews | 2 (for riser installation into case) |
PCIe Standard | PCIe Gen 3.0 x16* |
Cable Length | 200 mm |
Cable Width | 57 mm |
Cable Color | Matte Black |
Bracket Color | Black powder-coated steel |
Product Dimensions (LxWxH) | 182 x 134 x 145 mm |
Without Protrusions | 182 x 125 x 145 mm |
Package Dimensions (LxWxH) | 230 x 168 x 56 mm |
Net Weight | 248 g |
Package Weight | 360 g |
Warranty | 2 Years |

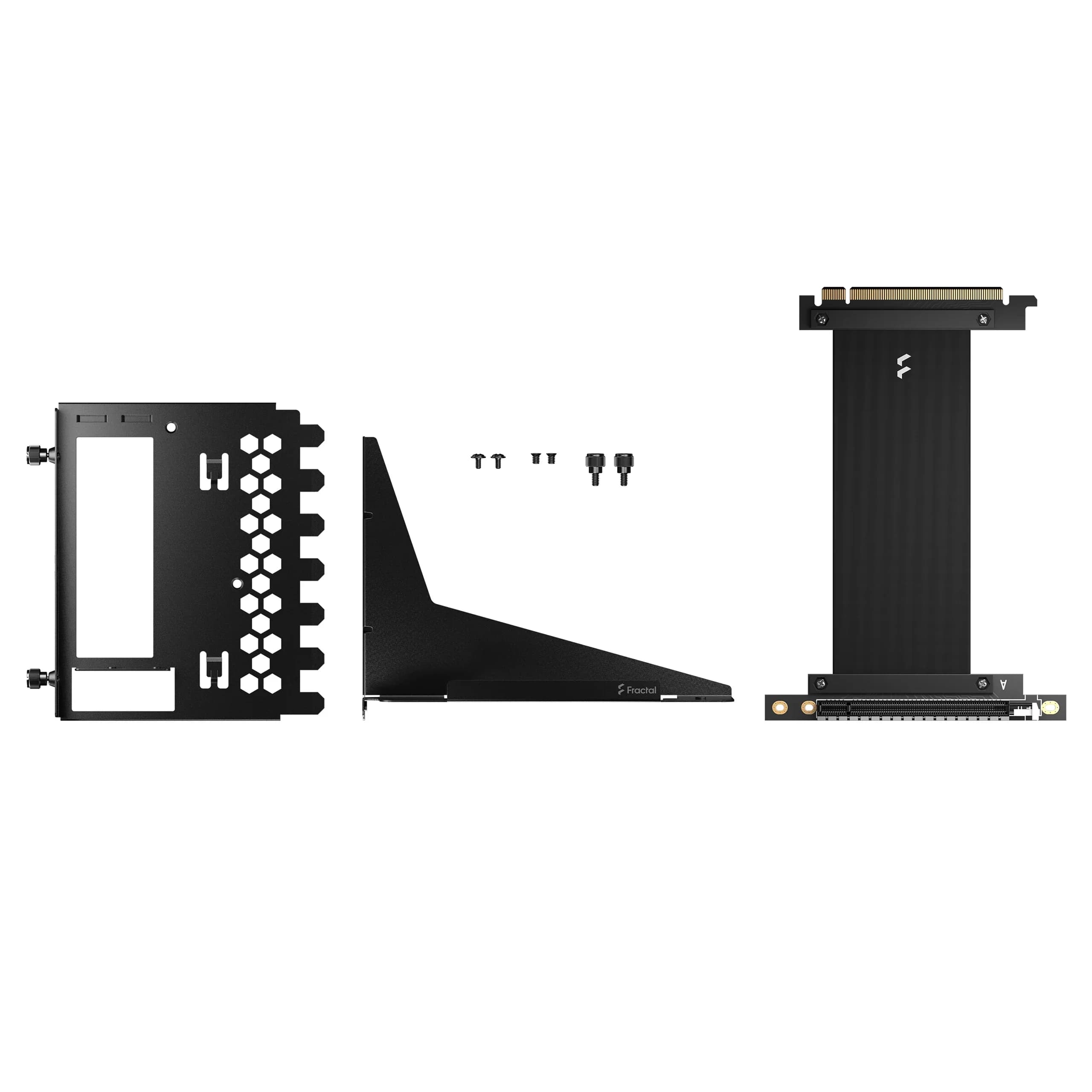

Package Contents | - Vertical GPU bracket (2 captive thumbscrews) |
Identifiers |
Product Code | FD-A-FLX1-001 |
EAN | 7340172702689 |
UPC | 843276102685 |
JAN | 4537694280112 |
