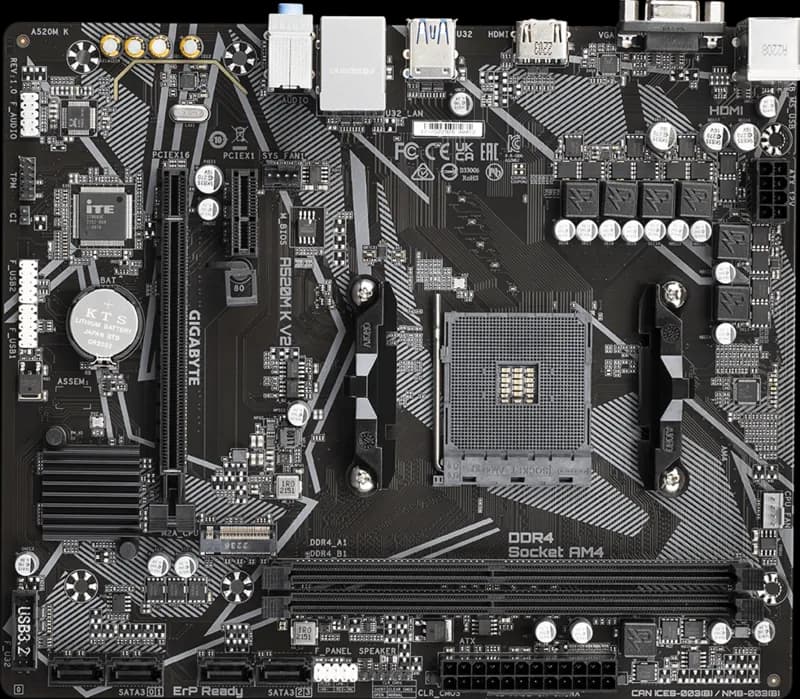

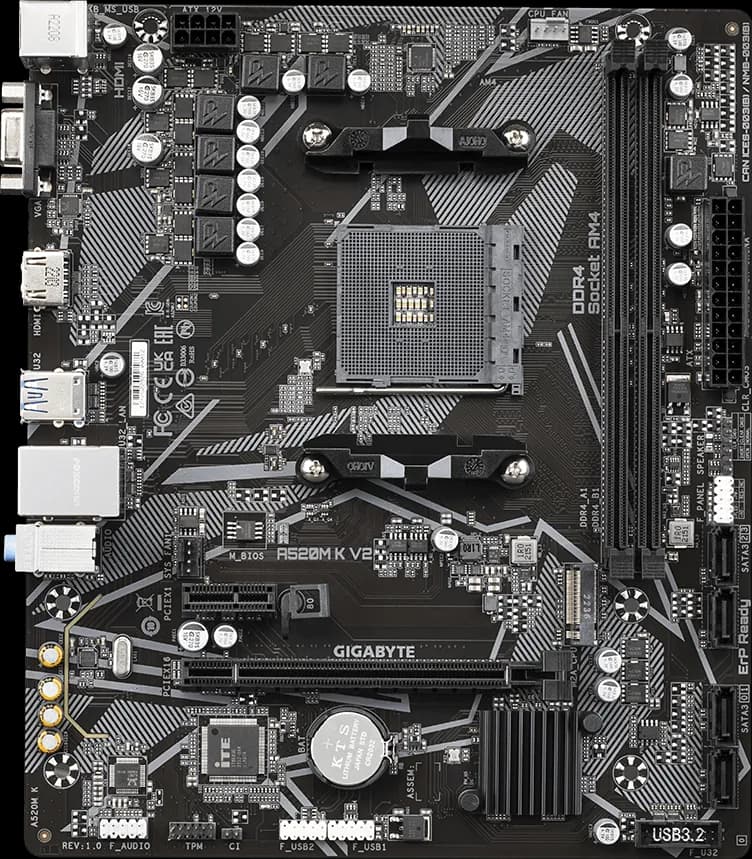

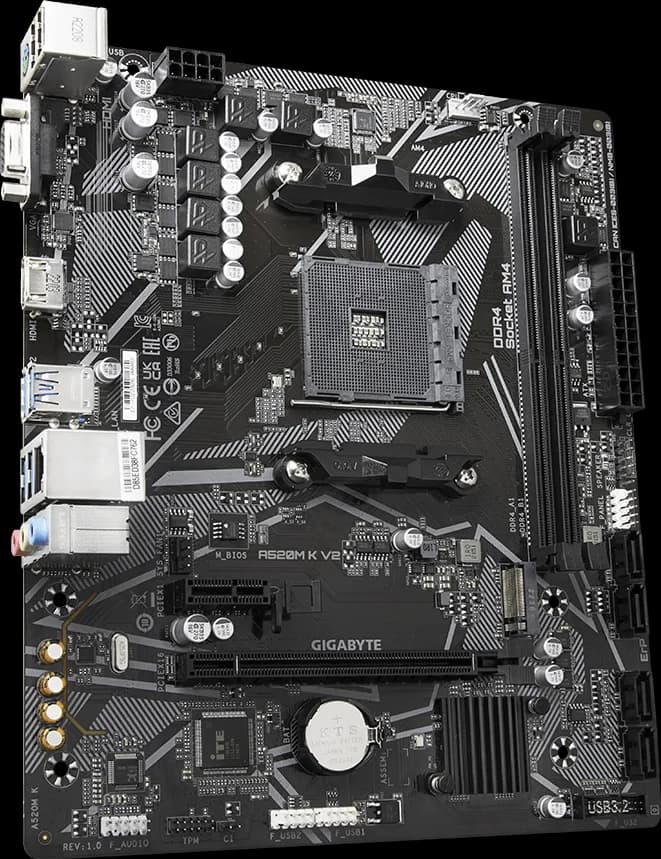

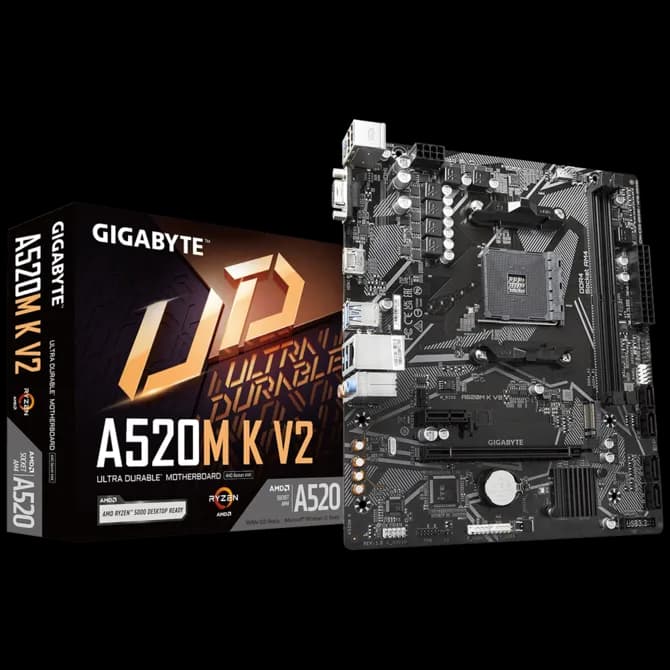

GIGABYTE A520M K V2 MOTHERBOAD

CONNECTIVITY

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

COOLING

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

AUDIO

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

ULTRA DURABLE

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Key Features:

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors​

• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​

• PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​

• GbE LAN with Bandwidth Management​

• 8-Channel HD Audio with High Quality Audio Capacitors​

• Rear HDMI and D-sub for Multi-display Support

• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​

• GIGABYTE APP Center, Simple and Easy Use​​

  Specification:

  CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  	(Please refer "CPU Support List" for more information.)
  Chipset	AMD A520
  Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  	Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  	Dual channel memory architecture
  	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  	Support for Extreme Memory Profile (XMP) memory modules
  	(Please refer "Memory Support List" for more information.)
  Onboard Graphics	Integrated Graphics Processor:
  	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  	Maximum shared memory of 16 GB
  Audio	Realtek® Audio CODEC
  	High Definition Audio
  	2/4/5.1/7.1-channel
  	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  Expansion Slots	CPU:
  	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  	Chipset:
  	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  Storage Interface	CPU:
  	1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  	Chipset:
  	4 x SATA 6Gb/s connectors
  	Support for RAID 0, RAID 1, and RAID 10
  USB	CPU:
  	4 x USB 3.2 Gen 1 ports on the back panel
  	Chipset:
  	2 x USB 3.2 Gen 1 ports available through the internal USB header
  	6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  Internal I/O Connectors	1 x 24-pin ATX main power connector
  	1 x 8-pin ATX 12V power connector
  	1 x CPU fan header
  	1 x system fan header
  	1 x M.2 Socket 3 connector
  	4 x SATA 6Gb/s connectors
  	1 x front panel header
  	1 x front panel audio header
  	1 x USB 3.2 Gen 1 header
  	2 x USB 2.0/1.1 headers
  	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  	1 x speaker header
  	1 x Clear CMOS jumper
  	1 x chassis intrusion header
  Back Panel Connectors	1 x PS/2 keyboard/mouse port
  	1 x D-Sub port
  	1 x HDMI port
  	4 x USB 3.2 Gen 1 ports
  	2 x USB 2.0/1.1 ports
  	1 x RJ-45 port
  	3 x audio jacks
  I/O Controller	iTE® I/O Controller Chip
  H/W Monitoring	Voltage detection
  	Temperature detection
  	Fan speed detection
  	Fan fail warning
  	Fan speed control
  	* Whether the fan speed control function is supported will depend on the cooler you install.
  BIOS	1 x 128 Mbit flash
  	Use of licensed AMI UEFI BIOS
  	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  	Support for APP Center
  	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  	@BIOS
  	EasyTune
  	Smart Backup
  	System Information Viewer
  	Support for Q-Flash
  	Support for Xpress Install
  Bundled Software	Norton® Internet Security (OEM version)
  	LAN bandwidth management software
  Operating System	upport for Windows 11 64-bit
  	Support for Windows 10 64-bit
  Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm
