Powered by the NVIDIA Blackwell architecture and DLSS 4.5
Powered by GeForce RTX™ 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE HYPERBURST cooling system
Powered by the NVIDIA Blackwell architecture and DLSS 4.5
Powered by GeForce RTX™ 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE HYPERBURST cooling system
Double flow through design
Patented Hawk fan design
Overdrive fan design
Composite metal grease for GPU
Superconducting heat pipes
RGB Halo
Die-casting Metal Shroud and Die-casting Metal Backplate
The AORUS INFINITY Series is engineered with a double flow through design that ensures seamless airflow, keeping performance at its peak while maintaining a flawless exterior. This design language interprets extreme aesthetics through masterful craftsmanship, embodying a boutique-grade, fully cohesive philosophy with a distinctive design language for a powerful yet refined visual fusion.

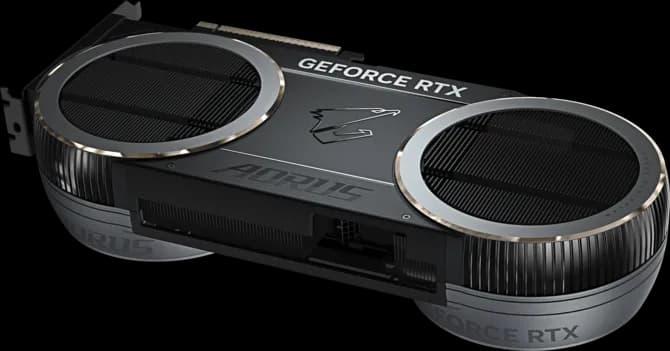

The all-new WINDFORCE Hyperburst cooling system introduces a groundbreaking thermal design, enabling seamless penetrating double flow through both sides of the backplate for an unobstructed cooling path. It integrates patented Hawk fans, a central Overdrive fan, composite metal grease, superconducting heat pipes and a direct-touch vapor chamber, delivering optimized cooling efficiency and peak performance under compact size and extreme workloads.
Inspired by aerospace nacelle design, capturing the dynamic aesthetics of twin jet engines, and sculpting an endless sense of propulsion.

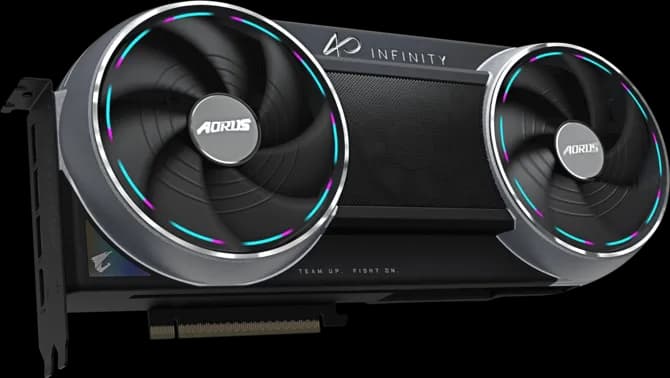

The iconic RGB Halo delivers a stunning and immersive lighting experience, elevating the visual presence of your graphics card. With GIGABYTE CONTROL CENTER, you can freely customize lighting effects or synchronize seamlessly with other devices for a unified RGB aesthetic.
Die-casting metal shroud and die-casting metal backplate with enhanced rigidity, delivering superior anti-bending strength while firmly supporting the PCB and heatsink. This die-casting metal design also enables complex shapes, combining structural stability with premium craftsmanship, for the hardcore graphics card experience.
High-performance yet extremely compact, the card features a shape-conforming heatsink designed to match its exterior while maximizing cooling surface area for maximum cooling efficiency.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
Chipset | GeForce RTX™ 5090 |
Core Clock | 2730 MHz (Reference card : 2407 MHz) |
CUDA® Cores | 21760 |
Memory Clock | 28 Gbps |
Memory Size | 32 GB |
Memory Type | GDDR7 |
Memory Bus | 512 bit |
Card Bus | PCI-E 5.0 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=330 W=145 H=65 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | 4.6 |
Power requirement | 1000W |
Power Connectors | 16 Pin*1 |
Output | DisplayPort 2.1b *3 |
HDMI 2.1b *1 | |
Accessories | 1. Quick guide |
2. Warranty registration | |
3. 1x 12V-2x6 to 4x PCIe 8pin adapter | |
4. AORUS metal sticker | |
5. AORUS Gloves | |
6. VGA holder Kit | |
7. Tweezer |
