Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
CONNECTIVITY
GIGABYTE M.2 solution offers considerably faster storage performance and support for PCIe and SATA interfaces* for M.2 SSD devices.
COOLING
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
LIGHTING
With AORUS Motherboards, RGB Fusion 2.0 is even better with Digital LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Digital LEDs comes with 9 new patterns and various speed settings with more to come.
AUDIO
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
ULTRA DURABLE
IGABYTE 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Key Features:
Supports AMD Ryzen™ 5000 series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard Design
RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Simple Click
Specification:
CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
| (Please refer "CPU Support List" for more information.) |
Chipset | AMD B450 |
Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for DDR4 2933/2667/2400/2133 MT/s memory modules |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer "Memory Support List" for more information.) |
Onboard Graphics | Integrated Graphics Processor: |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) |
| * Support for HDMI 2.1 version and HDCP 2.2.(Note) |
| Maximum shared memory of 16 GB |
|
|
| (Note) Actual support may vary by CPU. |
Audio | Realtek® Audio codec |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Support for S/PDIF Out |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) |
| 1 x PCI Express x1 slot |
| (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
| (Note) Actual support may vary by CPU. |
Storage Interface | 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support) |
| * Actual support may vary by CPU. |
| 4 x SATA 6Gb/s connectors |
| Support for RAID 0, RAID 1, and RAID 10 |
USB | Chipset: |
| 2 x USB 3.1 Gen 1 ports available through the internal USB header |
| 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| CPU: |
| 4 x USB 3.1 Gen 1 ports on the back panel |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 1 x system fan header |
| 1 x CPU cooler LED strip/RGB LED strip header |
| 1 x RGB LED strip header |
| 2 x addressable LED strip headers |
| 1 x M.2 Socket 3 connector |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x S/PDIF Out header |
| 1 x USB 3.1 Gen 1 header |
| 1 x USB 2.0/1.1 header |
| 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| 1 x serial port header |
| 1 x Clear CMOS jumper |

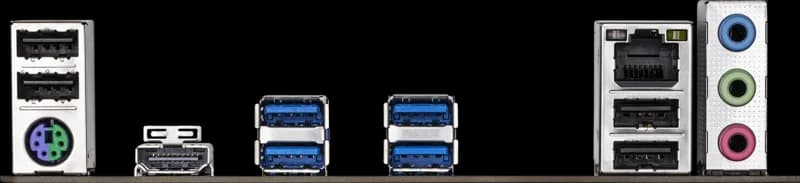

Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x HDMI port |
| 4 x USB 3.1 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
| Temperature detection |
| Fan speed detection |
| Overheating warning |
| Fan fail warning |
| Fan speed control |
| *Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| Fast Boot |
| RGB Fusion |
| Smart Backup |
| System Information Viewer |
| Support for Q-Flash |
| Support for Xpress Install |
Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software |
Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit |
| Support for Windows 7 64-bit |
| * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
