Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
Dual Channel DDR5：2*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics CardUNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and the latest technologies. GIGABYTE motherboards are equipped with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming.
Thermal Design | 10-Layer PCB | Smart Fan 6 GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, and SSD stability and low temperatures under full load application and gaming performance.
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next-generation network, storage, and Wi-Fi connectivity.
GIGABYTE motherboards bundle several useful and intuitive software to help users control every aspect of the motherboard and provide customizable lighting effects with outstanding aesthetics to fit your unique personality.
GIGABYTE Ultra Durable™ design provides product durability and a high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable.
Specifications
CPU | 1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
| 2. L3 cache varies with CPU |
| * Please refer to "CPU Support List" for more information. |
Chipset | 1. Intel® B760 Express Chipset |
Memory | 1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| 3. Dual channel memory architecture |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| 1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| * Support for DisplayPort 1.2 version and HDCP 2.3 |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. |
| ** Support native HDMI 2.1 TMDS compatible ports. |
| (Graphics specifications may vary depending on CPU support.) |
Audio | 1. Realtek® Audio CODEC |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| 4. Support for S/PDIF Out |
LAN | 1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0) |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.3 |
| 3. Support for 11ax 160MHz wireless standard |
| Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) |
| 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| 2. BLUETOOTH 5.3 |
| 3. Support for 11ax 160MHz wireless standard |
| (Actual data rate may vary depending on environment and equipment.) |
Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage Interface |
| CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| 1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 2. 2 x SATA 6Gb/s connectors |
| RAID 0 and RAID 1 support for SATA storage devices |
USB | Chipset: |
| 1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| 2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| 4. 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| 5. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+USB 3.2 Gen 1 Hub: |
| 1. 4 x USB 3.2 Gen 1 ports on the back panel |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header |
| 4. 1 x CPU fan/water cooling pump header |
| 5. 1 x system fan header |
| 6. 1 x addressable LED strip header |
| 7. 1 x RGB LED strip header |
| 8. 2 x M.2 Socket 3 connectors |
| 9. 2 x SATA 6Gb/s connectors |
| 10. 1 x front panel header |
| 11. 1 x front panel audio header |
| 12. 1 x speaker header |
| 13. 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| 14. 1 x USB 3.2 Gen 1 header |
| 15. 1 x USB 2.0/1.1 header |
| 16. 1 x reset jumper |
| 17. 1 x Clear CMOS jumper |
| 18. 1 x chassis intrusion header |

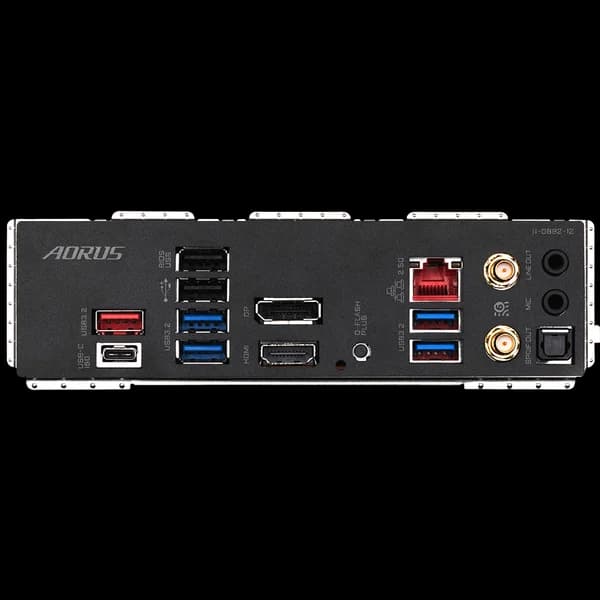

Back Panel Connectors | 1. 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| 2. 1 x USB 3.2 Gen 2 Type-A port (red) |
| 3. 4 x USB 3.2 Gen 1 ports |
| 4. 2 x USB 2.0/1.1 ports |
| 5. 1 x DisplayPort |
| 6. 1 x HDMI port |
| 7. 1 x Q-Flash Plus button |
| 8. 1 x RJ-45 port |
| 9. 2 x SMA antenna connectors (2T2R) |
| 10. 1 x optical S/PDIF Out connector |
| 11. 2 x audio jacks |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Water cooling flow rate detection |
| 5. Fan fail warning |
| 6. Fan speed control |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
BIOS | 1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| 2. Support for Q-Flash |
| 3. Support for Q-Flash Plus |
Bundle Software | 1. Norton® Internet Security (OEM version) |
| 2. LAN bandwidth management software |
Operating System | 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit |
Form Factor | 1. Mini-ITX Form Factor; 17.0cm x 17.0cm |
