GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency, and support for DDR4 memory, bringing cutting-edge features and ultimate performance to your next PC build.
GIGABYTE motherboards incorporate Glass Fabric PCB technology to repel moisture caused by humid and damp conditions. This technology reduces the amount of space between the fiber weave, making it difficult for moisture to penetrate compared to traditional motherboard PCBs, offering better protection from short circuits and system malfunction.
GIGABYTE motherboards provide advanced electrostatic discharge (ESD) protection for both Ethernet LAN and USB ports, safeguarding your system from electrical surges and direct lightning strikes.
GIGABYTE motherboards use Low RDS(on) MOSFETs to reduce energy wastage through unnecessary heat dissipation, resulting in tangible energy savings without impacting system performance.
Realtek GbE LAN features cFosSpeed, improving network latency and maintaining low ping times in crowded LAN environments, while consuming less power when idle compared to other LAN solutions.
GIGABYTE APP Center grants easy access to a variety of GIGABYTE APPs, allowing users to maximize the capabilities of their GIGABYTE motherboard through a unified user interface.
GIGABYTE Cloud Station™ facilitates communication, resource sharing, and desktop PC control from smartphones/tablet devices via a wireless connection.
With transfer rates of up to 5 Gbps, USB 3.0 offers nearly a 10x improvement over USB 2.0, ensuring compatibility with legacy devices.
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, protecting the BIOS from failure due to various factors, ensuring system integrity.
GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI, delivering stunning visual experiences with exceptional clarity and detail.
HDMI™ provides up to 5Gb/s video transmitting bandwidth and 8-channel high-quality audio through a single cable, ensuring superior, uncompressed digital video and audio transmission.
With 6th Generation Intel® Core™ Processor, GIGABYTE motherboards offer security and productivity solutions built-in for small businesses, providing compelling usages in one intuitive customizable UI.
| attribute | value |
|---|---|
| Audio | Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel, * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver., Support for S/PDIF Out |
| BIOS | 2 x 64 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |

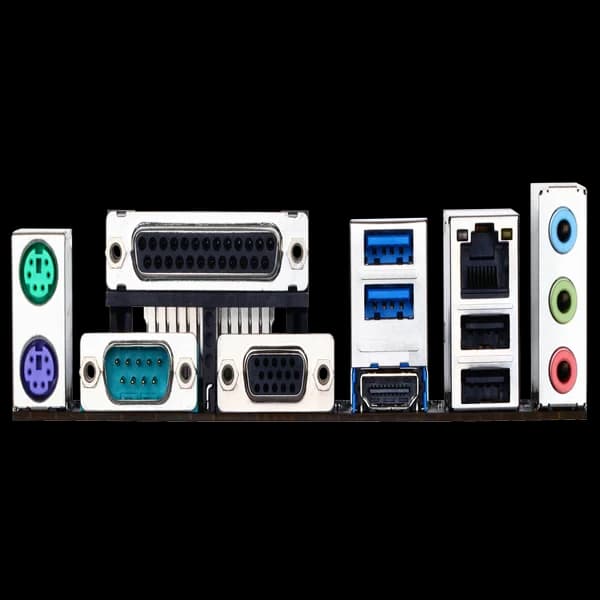

| Back Panel Connectors | 1 x PS/2 mouse port, 1 x PS/2 Keyboard port, 1 x D-Sub port, 1 x parallel port, 1 x serial port, 1 x HDMI port, 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In, Line Out, Mic In) |
| Bundled Software | Norton® Internet Security (OEM version), cFosSpeed |
| CPU | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package, * For 7th Generation Intel® Core™ processors support need to update the latest BIOS., L3 cache varies with CPU |
| Chipset | Intel® H110 Express Chipset |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16, (The PCI Express x16 slots conform to PCI Express 3.0 standard.), 1 x PCI Express x1 slot, (The PCI Express x1 slot conforms to PCI Express 2.0 standard.), 2 x PCI slots |
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.0cm |
| H/W Monitoring | System voltage detection, CPU/System temperature detection, CPU/System fan speed detection, CPU/System overheating warning, CPU/System fan fail warning, CPU/System fan speed control |
| I/O Controller | iTE® I/O Controller Chip |

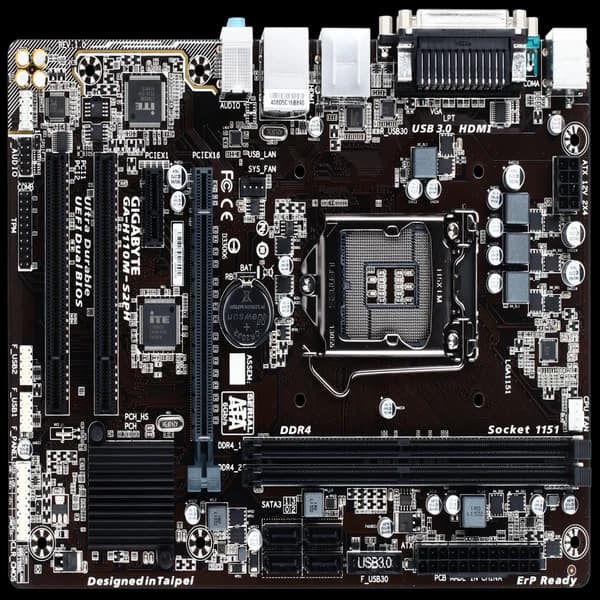

| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.0/2.0 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory, * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed., Dual channel memory architecture, Support for DDR4 2400/2133 MHz memory modules, Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Onboard Graphics | Integrated Graphics Processor - Intel® HD Graphics support:, 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz, * Support for HDMI 1.4 version., Maximum shared memory of 1024 MB |
| Operating System | Windows® 10 64-bit (for 7th Generation Intel® Processors), Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors), * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website., Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Storage Interface | Chipset:, 4 x SATA 6Gb/s connectors |
| USB | Chipset:, 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Unique Features | Support for APP Center, * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications., 3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Smart TimeLock, Smart Keyboard, Smart Backup, System Information Viewer, USB Blocker, Support for Q-Flash, Support for Xpress Install, Support for Smart Switch |
| Warranty | 3 Years |
