Key Features:
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060

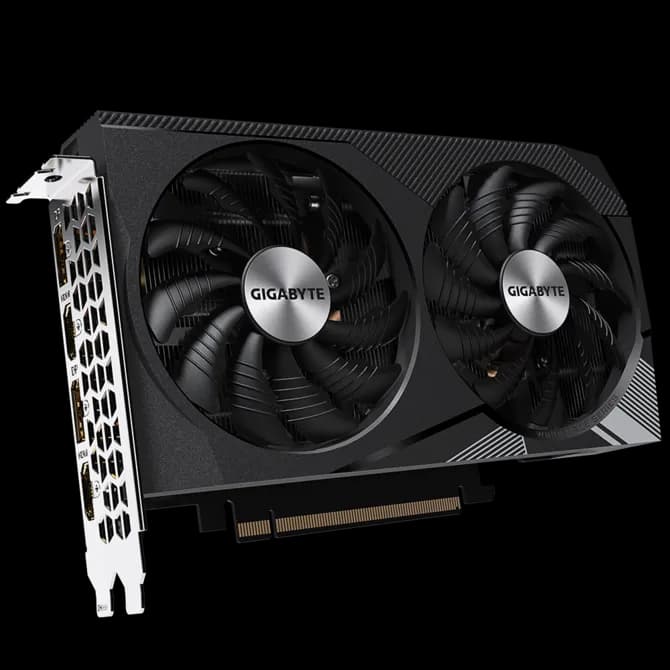

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
Key Features:
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Screen cooling
200 mm compact card size
Limited Hash Rate version
Specification:
Graphics Processing | GeForce RTX™ 3060 |
Core Clock | 1792 MHz (Reference Card: 1777 MHz) |
CUDA® Cores | 3584 |
Memory Clock | 15000 MHz |
Memory Size | 12 GB |
Memory Type | GDDR6 |
Memory Bus | 192 bit |
Memory Bandwidth (GB/sec) | 360 GB/s |
Card Bus | PCI-E 4.0 x 16 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=198 W=121 H=39 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 550W |
Power Connectors | 8 pin*1 |

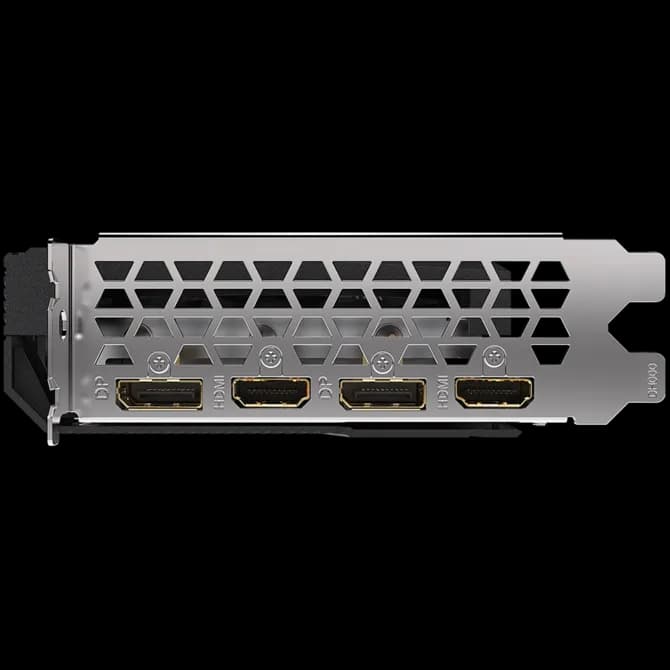

Output | DisplayPort 1.4a *2 |
| HDMI 2.1 *2 |
SLI Support | N/A |
Accessories | Quick guide |
