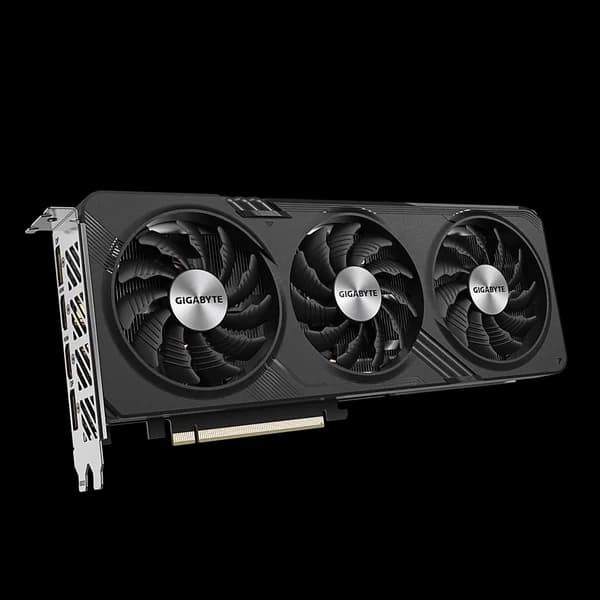

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans, and Screen cooling, which together provide high efficiency heat dissipation.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. RGB Mode: CYCLE, STATIC, FLASH, DOUBLE FLASH, PULSE

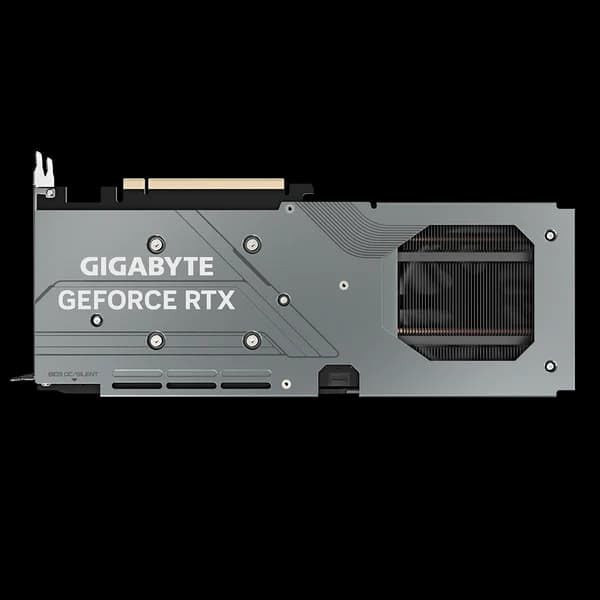

The metal back plate not only provides an aesthetical shape but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode, and power target in real-time.
| attribute | value |
|---|---|
| Accessories | Quick guide |
| CUDA® Cores | 3072 |
| Card Bus | PCI-E 4.0 |
| Card size | L=281 W=114 H=40 mm |
| Core Clock | 2550 MHz (Reference card: 2460 MHz) |
| Digital max resolution | 7680x4320 |
| DirectX | 12 Ultimate |
| Graphics Processing | GeForce RTX™ 4060 |
| Memory Bus | 128 bit |
| Memory Clock | 17 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Multi-view | 4 |
| OpenGL | 4.6 |

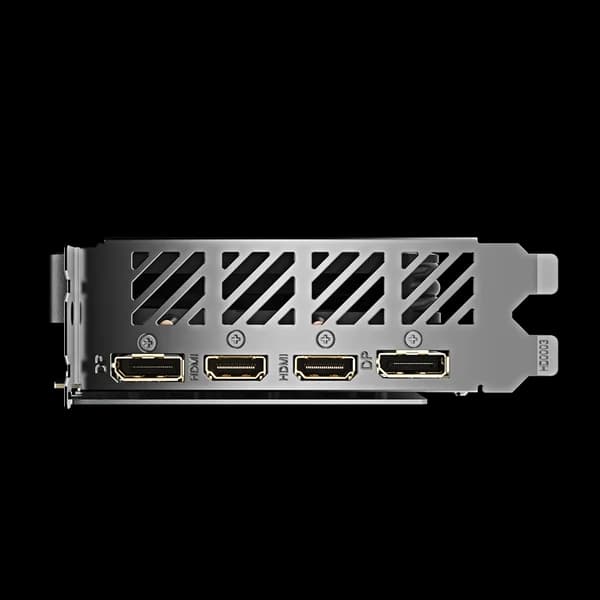

| Output | DisplayPort 1.4a *2, HDMI 2.1a *2 |
| PCB Form | ATX |
| Power Connectors | 8 pin*1 |
| Recommended PSU | 450W |
| Warranty | 3 Years |
