The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

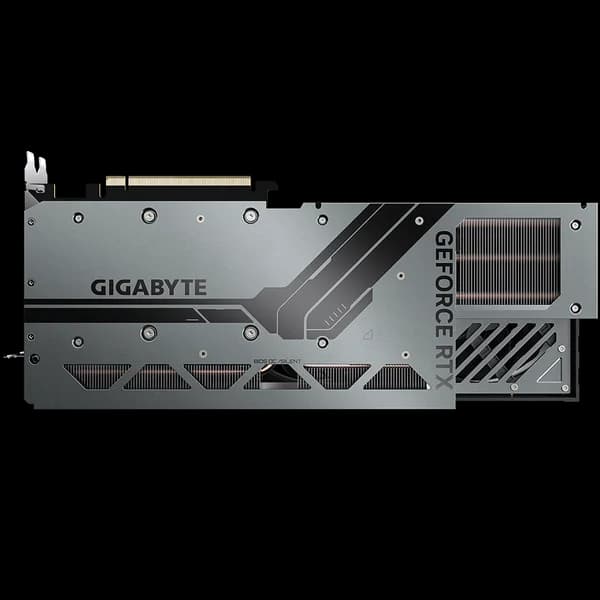

The metal back plate not only provides an aesthetical shape but also enhances the structure of the graphics card to provide complete protection.
The new anti-sag bracket is tailored to each graphics card. It provides optimized reinforcement and a better overall visual appearance. Compatibility Notice >>>
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode, and power target in real-time.
| attribute | value |
|---|---|
| Accessories | 1. Quick guide, 2. Anti-sag bracket, 3. Anti-sag bracket installation guide, 4. One 16 pin to triple 8-pin power adaptor |
| CUDA® Cores | 10240 |
| Card Bus | PCI-E 4.0 x 16 |
| Card size | L=330 W=136 H=56 mm |
| Core Clock | 2550 MHz |
| Digital max resolution | 7680x4320 |
| DirectX | 12 Ultimate |
| Graphics Processing | GeForce RTX™ 4080 SUPER |
| Memory Bus | 256 bit |
| Memory Clock | 23 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR6X |
| Multi-view | 4 |
| OpenGL | 4.6 |

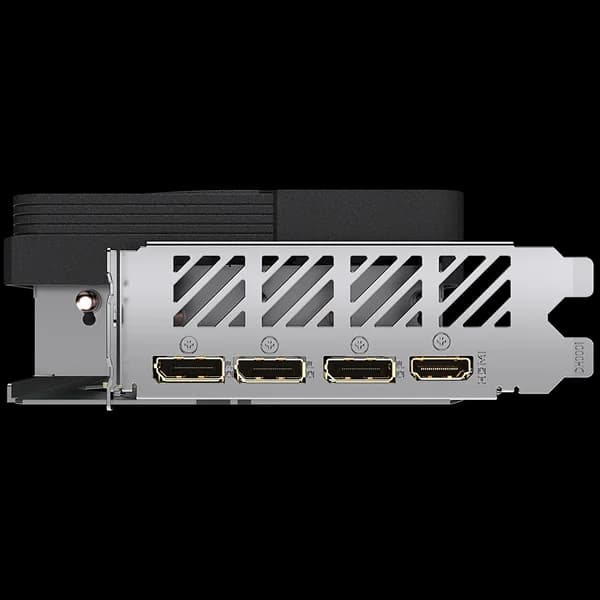

| Output | DisplayPort 1.4a *3, HDMI 2.1a *1 |
| PCB Form | ATX |
| Power Connectors | 16 Pin*1 |
| Recommended PSU | 750W |
| Warranty | 1 Year |
