Powered by GeForce RTX 40 Series and DLSS 3
Your ideas, accelerated by NVIDIA Studio. Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

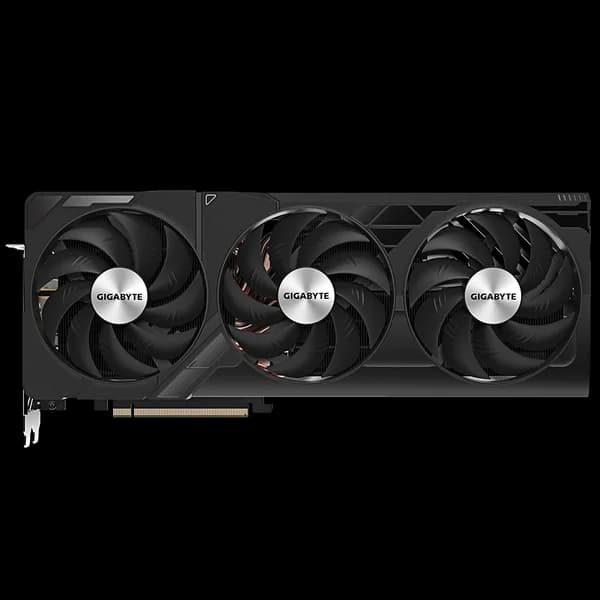

The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

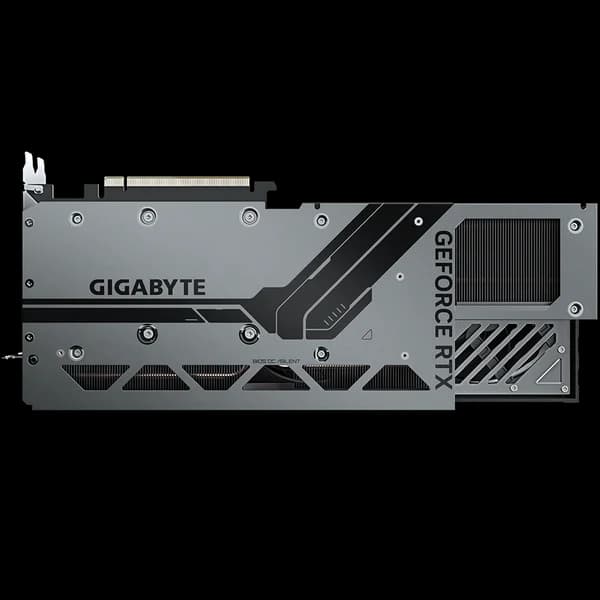

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
| attribute | value |
|---|---|
| Accessories | 1. Quick guide, 2. Anti-sag bracket, 3. Anti-sag bracket installation guide, 4. One 16-pin to four 8-pin power adaptor |
| CUDA® Cores | 16384 |
| Card Bus | PCI-E 4.0 |
| Card size | L=331 W=136 H=55.5 mm |
| Core Clock | 2520 MHz |
| Digital max resolution | 7680x4320 |
| DirectX | 12 Ultimate |
| Graphics Processing | GeForce RTX™ 4090 |
| Memory Bus | 384 bit |
| Memory Clock | 21 Gbps |
| Memory Size | 24 GB |
| Memory Type | GDDR6X |
| Multi-view | 4 |
| OpenGL | 4.6 |

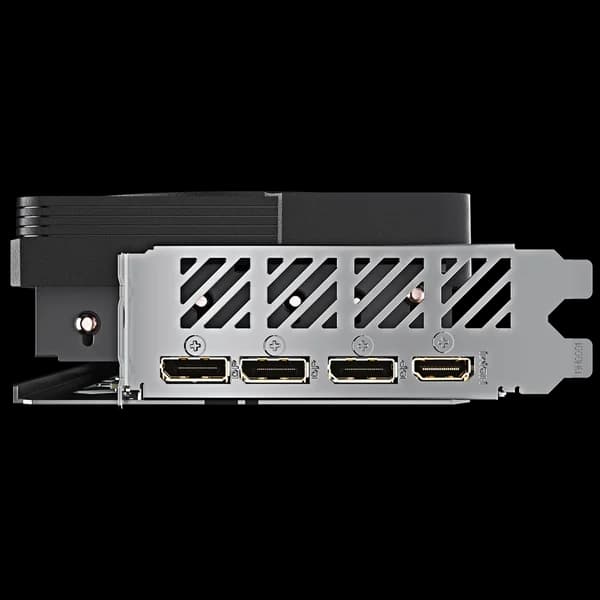

| Output | DisplayPort 1.4a *3, HDMI 2.1a *1 |
| PCB Form | ATX |
| Power Connectors | 16 pin*1 |
| Recommended PSU | 850W |
| Warranty | 3 Years |
