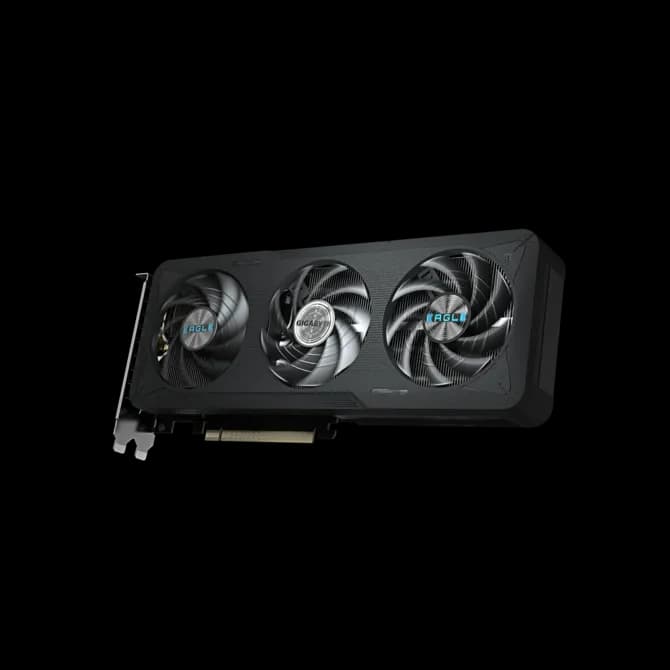

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

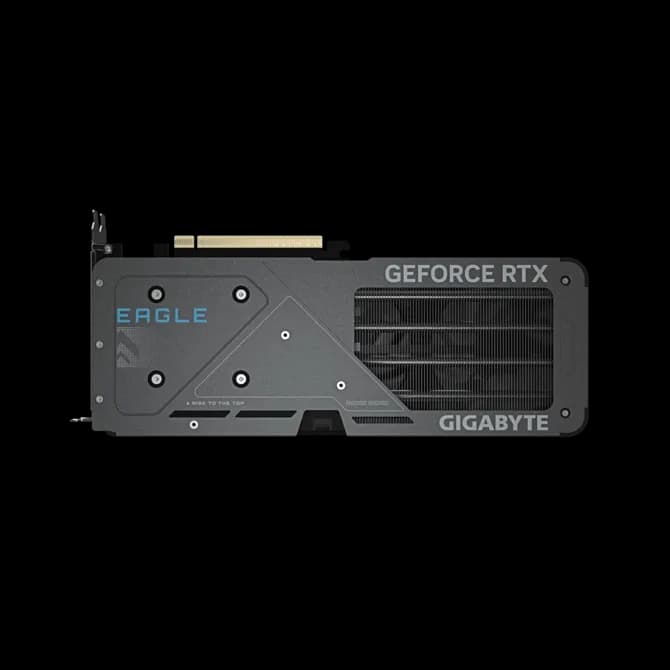

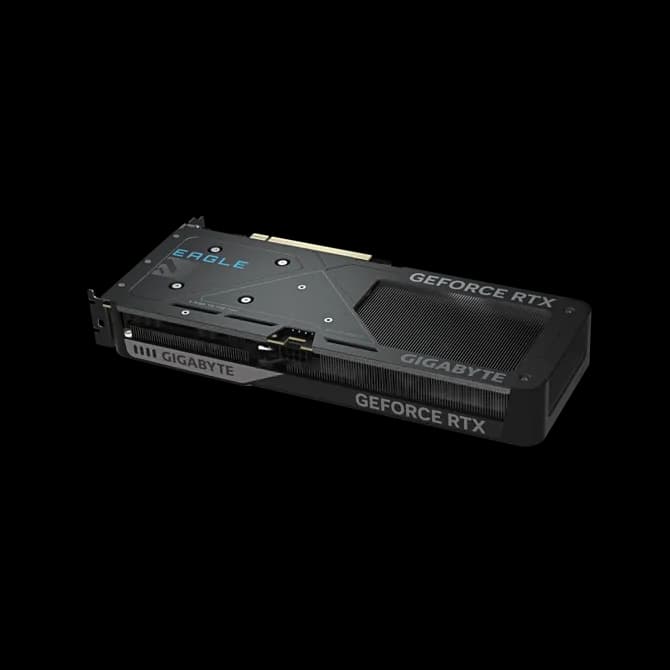

The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Key Features:
Powered by the NVIDIA Blackwell architecture and DLSS 4

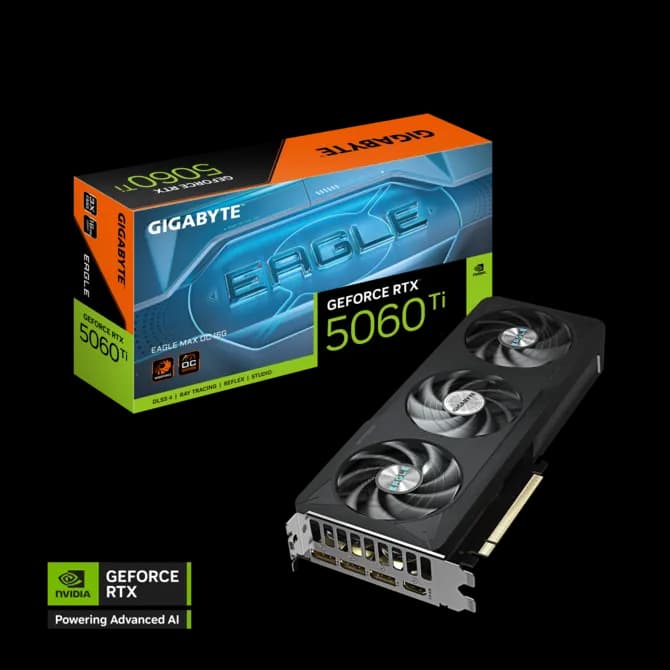

Powered by GeForce RTX™ 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
Specification:
Graphics Processing | GeForce RTX™ 5060 Ti |
Core Clock | 2617 MHz (Reference card :2572 MHz) |
CUDA® Cores | 4608 |
Memory Clock | 28 Gbps |
Memory Size | 16 GB |
Memory Type | GDDR7 |
Memory Bus | 128 bit |
Card Bus | PCI-E 5.0 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=281 W=115 H=40 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | 4.6 |
Recommended PSU | 650W |
Power Connectors | 8 Pin*1 |
Output | DisplayPort 2.1b *3 |
| HDMI 2.1b *1 |
Accessories | Quick guide |
