Realtek 8118 Gaming LAN: High Speed Gigabit LAN with Automatic Bandwidth Allocation for prioritized gaming and application network traffic. Real-Time Network Monitoring ensures optimal performance.
NVMe PCIe Gen2 x2 2280 M.2 Connector: Maximizes system potential with M.2 technology.
High Definition Digital Outputs: Enjoy true HD display capability with commonly integrated digital output technologies.
Smart Fan 5: Maintains optimal performance and cooling efficiency with interchangeable fan headers and hybrid fan headers. Intuitive UI for Fan Control allows customization.
Temperature Sensors and Hybrid Fan Headers: Ensure precise control over liquid cooling setup with up-to-the-second information on flow-rate.
Immersive VR Gaming Experience: GIGABYTE Motherboards offer the best features for seamless VR gaming, including NVMe support via M.2 or U.2 connectors.
Recommended VR Gaming PC Configuration: NVIDIA GTX 1060 / AMD RX 480 or greater graphics card, Intel i5 equivalent or greater CPU, GIGABYTE H370 / B360 / H310 series motherboards, 8GB RAM or greater, Windows 10 64-bit or newer.
Equips resistors with an Anti-Sulfur Design to prevent chemical changes caused by sulfur compounds in the air.
Special anti-surge IC protects against irregular electrical spikes. - Humidity Protection Glass Fabric PCB: Repels moisture caused by humid and damp conditions.
BIOS & Applications: Refreshed BIOS with new GUI and easier functionalities. GIGABYTE APP Center, 3D OSD for enhanced user experience.
4K Ultra HD Support: Provides native 4K support with integrated Intel® HD Graphics via HDMI.
| attribute | value |
|---|---|
| Audio | Realtek® H310M S2P, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| BIOS | 2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |

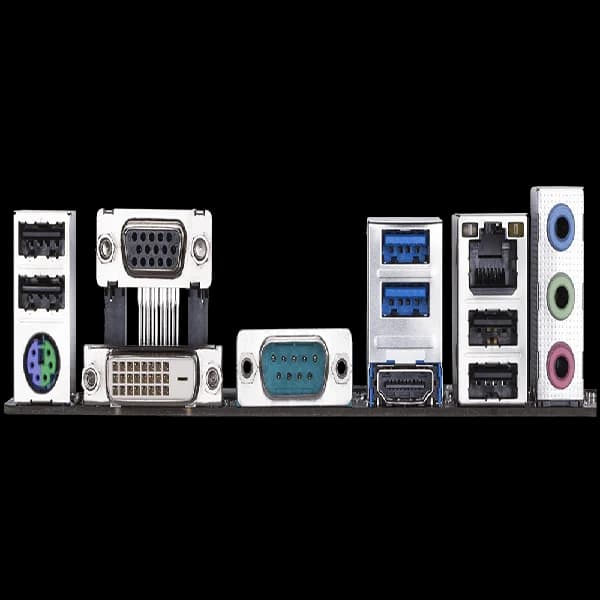

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 1 x serial port, 2 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support, L3 cache varies with CPU |
| Chipset | Intel® H310 Express Chipset |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16, (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 1 x PCI Express x1 slot, (The PCI Express x1 slot conforms to PCI Express 2.0 standard.), 2 x PCI slots |
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control, * Whether the fan speed control function is supported will depend on the cooler you install. |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.1 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for DDR4 2666/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:, 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, * The DVI-D port does not support D-Sub connection by adapter., 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz, * Support for HDMI 1.4 version and HDCP 2.2., Maximum shared memory of 1 GB |
| Operating System | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website., Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Storage Interface | Chipset:, 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support), 4 x SATA 6Gb/s connectors |
| USB | Chipset:, 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Unique Features | Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., @BIOS, EasyTune, Smart Backup, System Information Viewer, Support for Q-Flash, Support for Xpress Install |
| Warranty | 3 Years |
