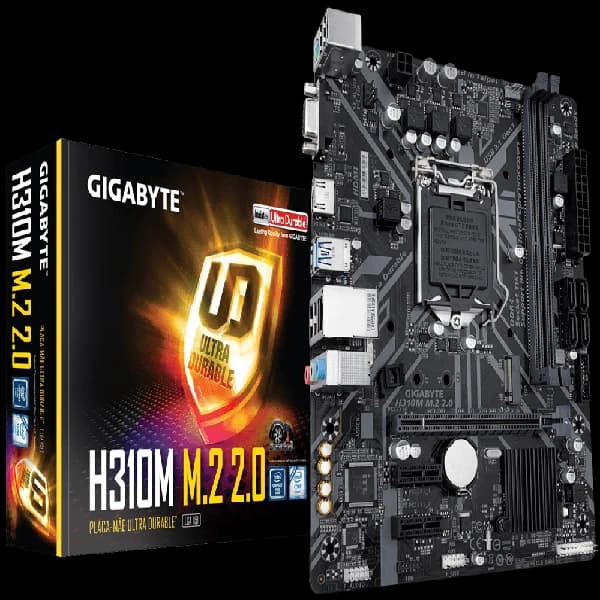

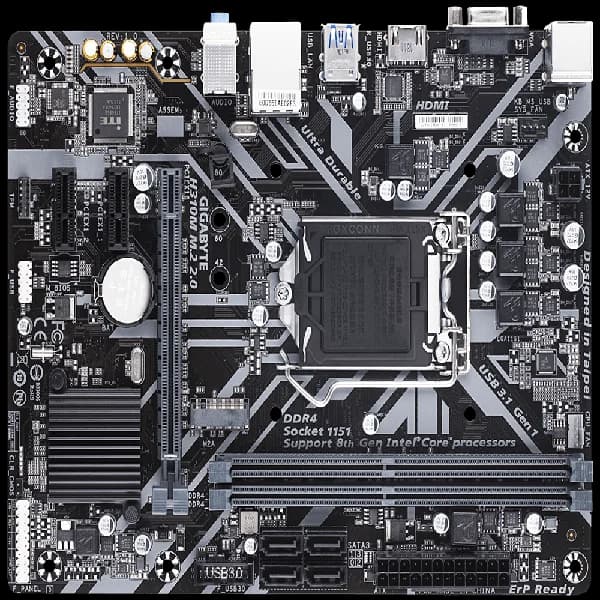

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen2 x2 M.2, HDMI 1.4, D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready
GIGABYTE Patented Double Locking Bracket - Sulfurization Protection: Anti-Sulfur Design resistors prevent chemical changes due to sulfur compounds in the air. - Industry's Leading Surge Protection: Special anti-surge IC protects against irregular electrical spikes. - Humidity Protection Glass Fabric PCB: Repels moisture caused by humid and damp conditions, reducing the risk of short circuit and system malfunction. - High Temperature Protection Lower RDS(on) MOSFETs Design: Low RDS(on) MOSFETs reduce energy wastage and heat dissipation without impacting system performance.
| attribute | value |
|---|---|
| Audio | Realtek® Audio codec, High Definition Audio, 2/4/5.1/7.1-channel, 2/4/5.1/7.1-channel |
| BIOS | 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |

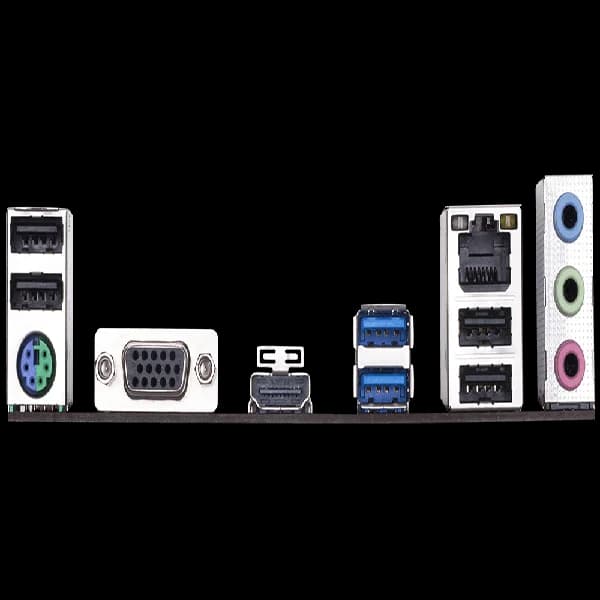

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package, L3 cache varies with CPU |
| Chipset | Intel® H310 Express Chipset |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16, (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 2 x PCI Express x1 slots, (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.1 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Clear CMOS jumper |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for DDR4 2666/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:, 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz, * Support for HDMI 1.4 version and HDCP 2.2., Maximum shared memory of 1 GB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:, 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support), 4 x SATA 6Gb/s connectors |
| USB | Chipset:, 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Unique Features | Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Platform Power Management, Smart Backup, Smart Keyboard, System Information Viewer, USB Blocker, Support for Q-Flash, Support for Xpress Install |
| Warranty | 3 Years |
