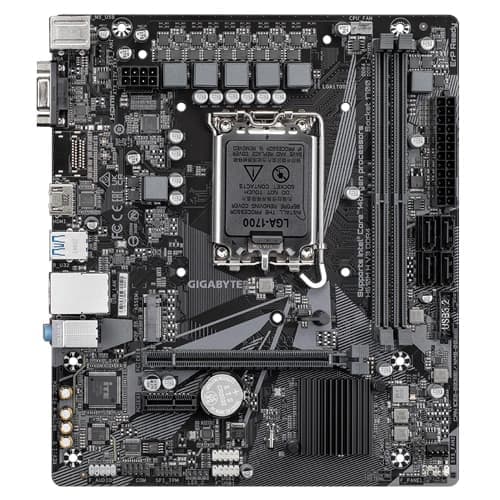

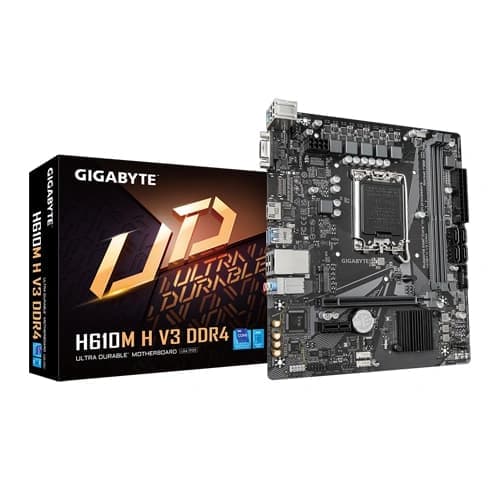

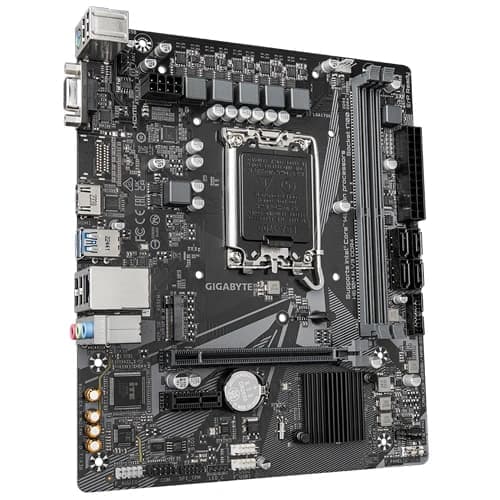

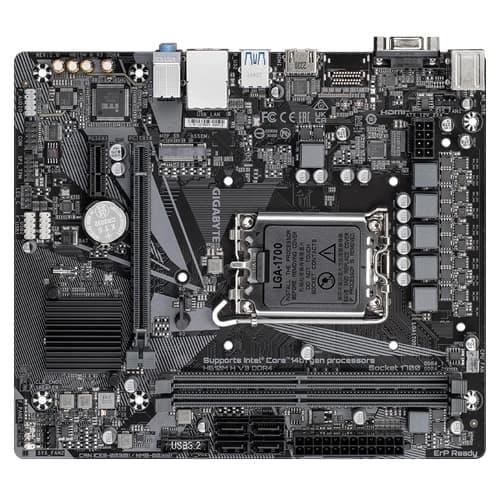

GIGABYTE H610M H V3 DDR4 M-ATX Motherboard

Features:

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

• Supports Intel® Core™ 14th/ 13th /12th processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• 4+1+1 Hybrid Digital VRM Design

• GbE LAN with Bandwidth Management

• NVMe PCIe 3.0 x4 M.2

• High Quality Audio Capacitors and Audio Noise Guard

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

• GIGABYTE APP Center, Simple and Easy Use

• Anti-Sulfur Resistors Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• 4+1+1 Phases Low RDS(on) MOSFETs

• Solid capacitors to improve transient response and minimize oscillation.

• 8-pin Solid Pin CPU Power Connector.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity

• More metal quantity to sustain higher power and generated heat

• Ultra durable and longer lifespan

  Specification:

  Motherboard
  Platform	INTEL
  Socket	LGA1700
  Cpu Type	14th Gen,13th Gen,12th Gen,Pentium,Celeron
  Chipset	H610
  Memory Speed	up to 3200
  Max Memory Support	64 GB
  Supported Memory Type	DDR4
  Channel Supported	Dual Channel
  Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
  Graphics Port	1 x D-Sub Port,1 x HDMI Port
  Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  Back Panel I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
  Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
  Form Factor	Micro-ATX
  Warranty	3 Years
