The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Key Features:
Powered by Radeon™ RX 9060 XT
Integrated with 8GB GDDR6 128bit memory interface

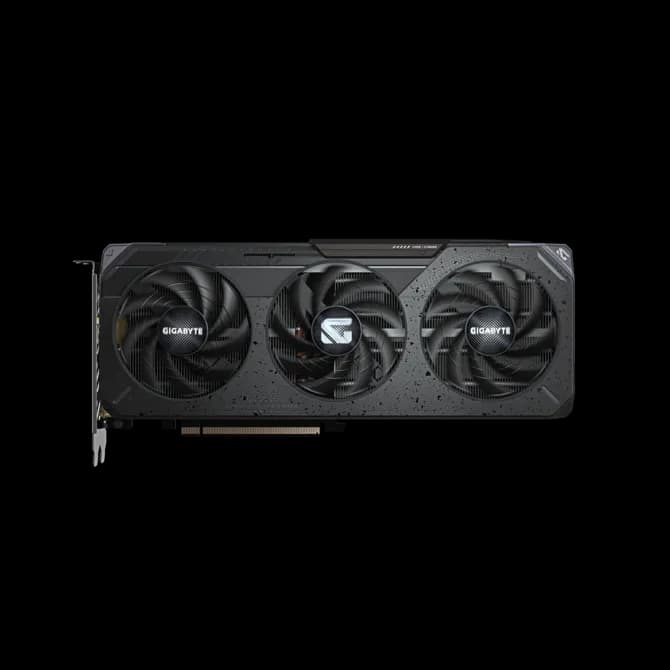

WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Reinforced structure
Specification:
Graphics Processing | Radeon RX 9060 XT |
Core Clock | Boost Clock* : up to 3320 MHz (Reference card: 3130 MHz) |
| Game Clock* : up to 2780 MHz (Reference card: 2530 MHz) |
Stream Processors | 2048 |
Memory Clock | 20 Gbps |
Memory Size | 8GB |
Memory Type | GDDR6 |
Memory Bus | 128 bit |
Card Bus | PCI-E 5.0 |
Digital max resolution | 7680 x 4320 |
Multi-view | 3 |
Card size | L=281 W=118 H=40 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | OpenGL 4.6 |
Recommended PSU | 450W |
Power Connectors | 8 pin*1 |

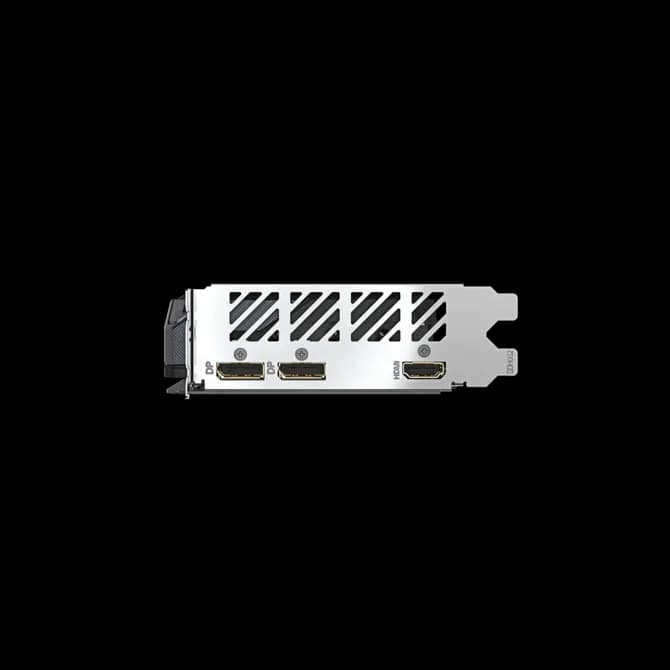

Output | DisplayPort 2.1a x2 |
| HDMI 2.1b x1 |
Accessories | VGA manual |
