Integrated with 16GB GDDR6 256bit memory interface

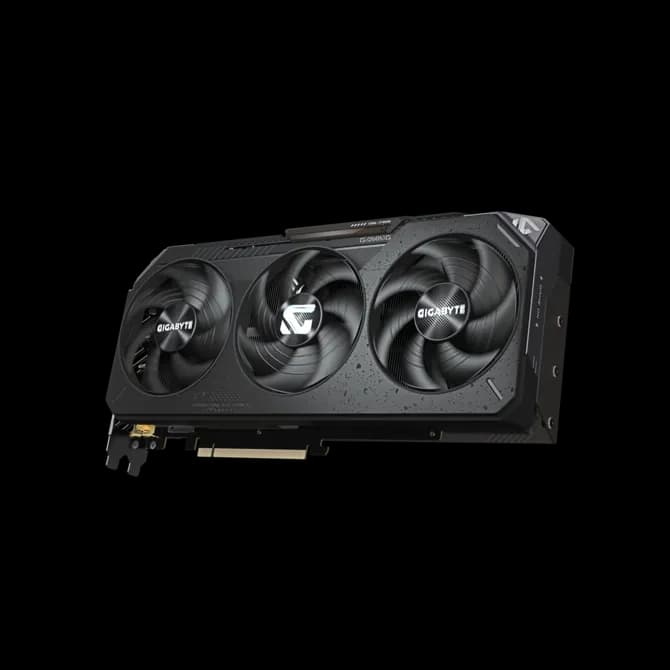

WINDFORCE cooling system
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Key Features:
Powered by Radeon™ RX 9070 XT
Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure
Specification:
Graphics Processing | Radeon™ RX 9070 XT |
| Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz) |
Core Clock | Game Clock* : up to 2520 MHz (Reference card: 2400 MHz) |
Stream Processors | 4096 |
Memory Clock | 20 Gbps |
Memory Size | 16GB |
Memory Type | GDDR6 |
Memory Bus | 256 bit |
Card Bus | PCI-E 5.0 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=288 W=132 H=56 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | 4.6 |
Recommended PSU | 850W |
Power Connectors | 8 pin*3 |

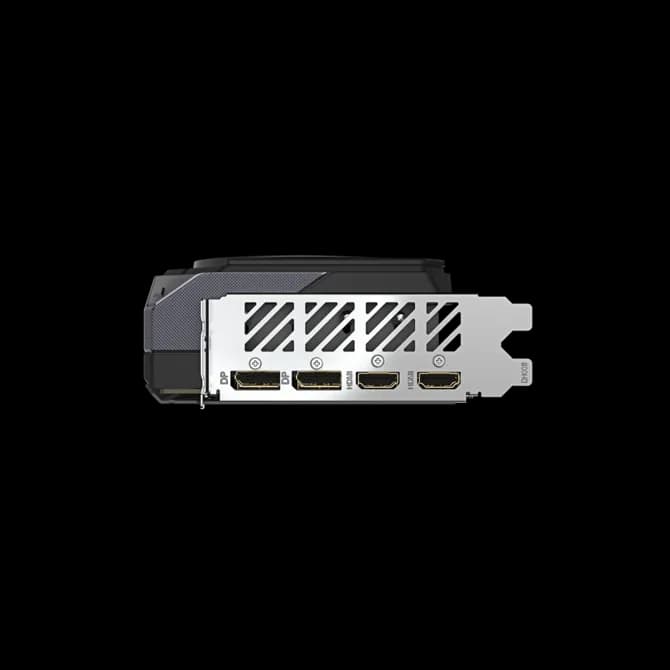

Output | DisplayPort 2.1a *2 |
| HDMI 2.1b *2 |
Accessories | Quick guide |
