Key Features:
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance

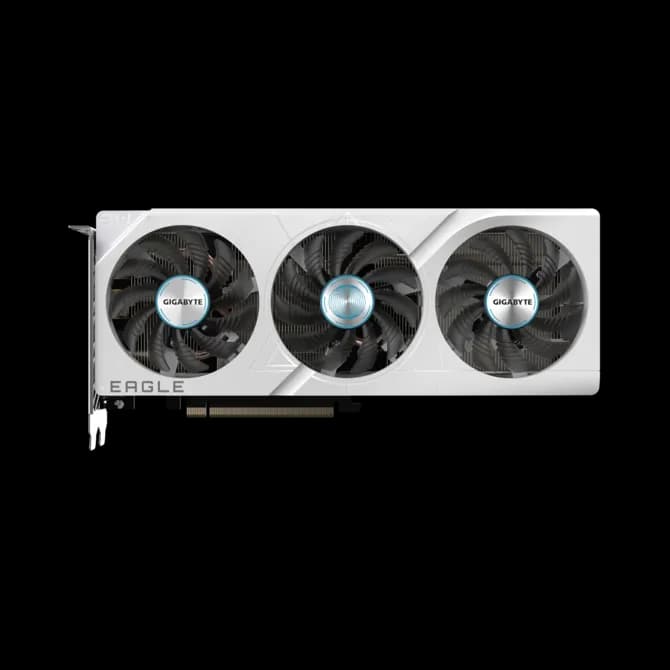

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

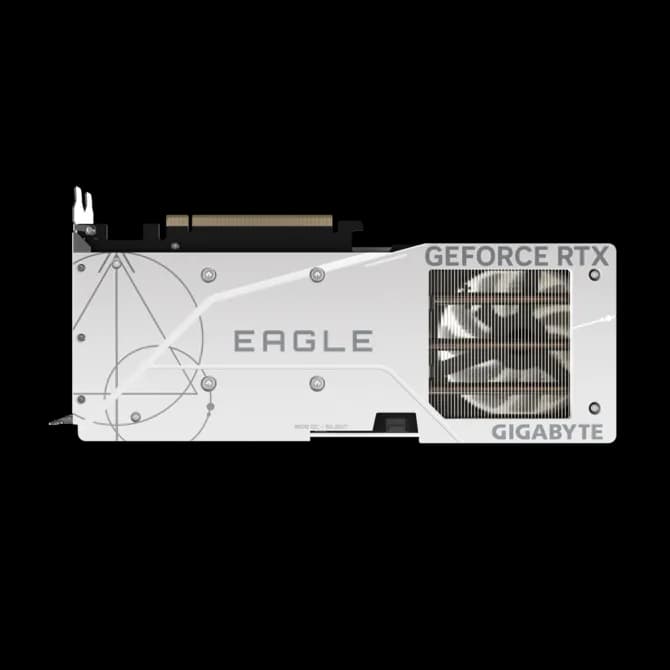

The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Key Features:
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Dual BIOS
Protection back plate
Specification:
Graphics Processing | GeForce RTX™ 4060 Ti (8GB) |
Core Clock | 2550 MHz (Reference card: 2535 MHz) |
CUDA® Cores | 4352 |
Memory Clock | 18 Gbps |
Memory Size | 8GB |
Memory Type | GDDR6 |
Memory Bus | 128 bit |
Card Bus | PCI-E 4.0 |
Digital max resolution | 7680 x 4320 |
Multi-view | 4 |
Card size | L=272 W=115 H=41 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 500W |
Power Connectors | 8 pin*1 |

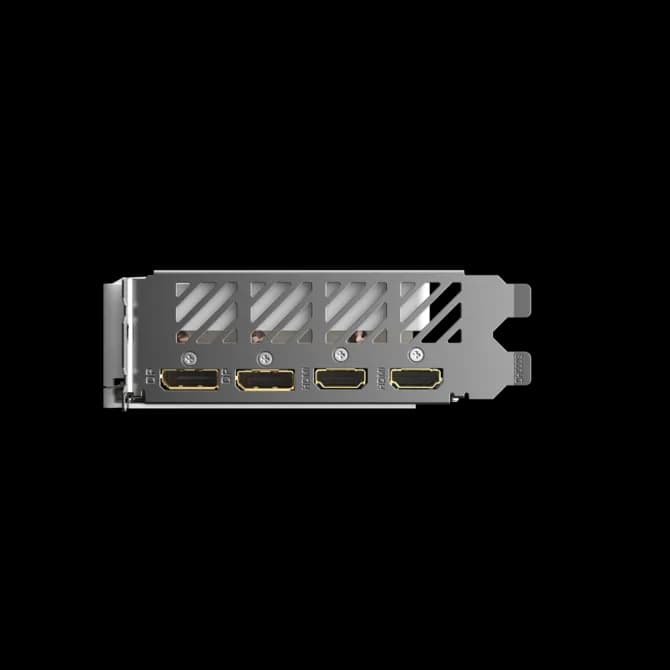

Output | DisplayPort 1.4a*2 |
| HDMI 2.1a*2 |
Accessories | Quick guide |
