Gigabyte RTX 4060 Ti Windforce OC V2 8GB GDDR6 Graphics Card

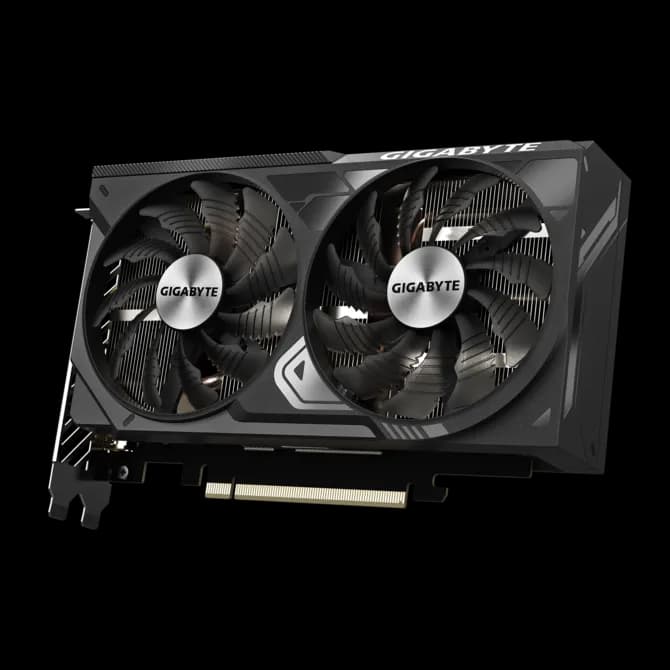

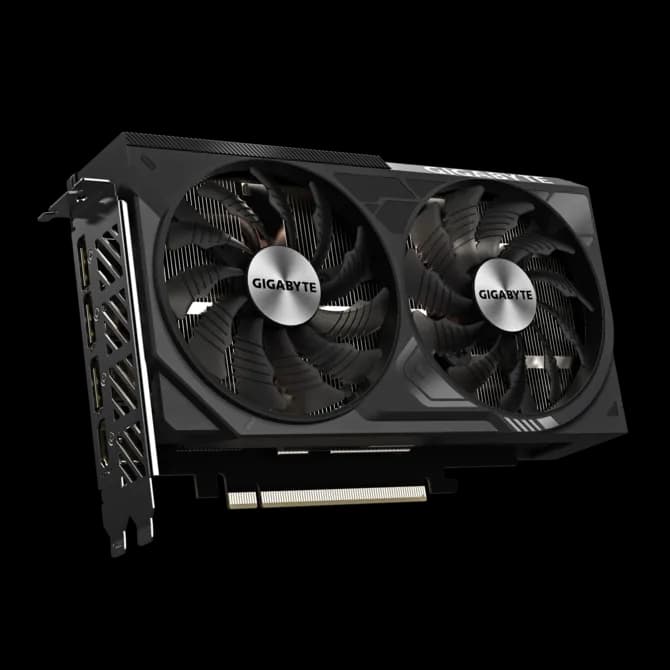

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

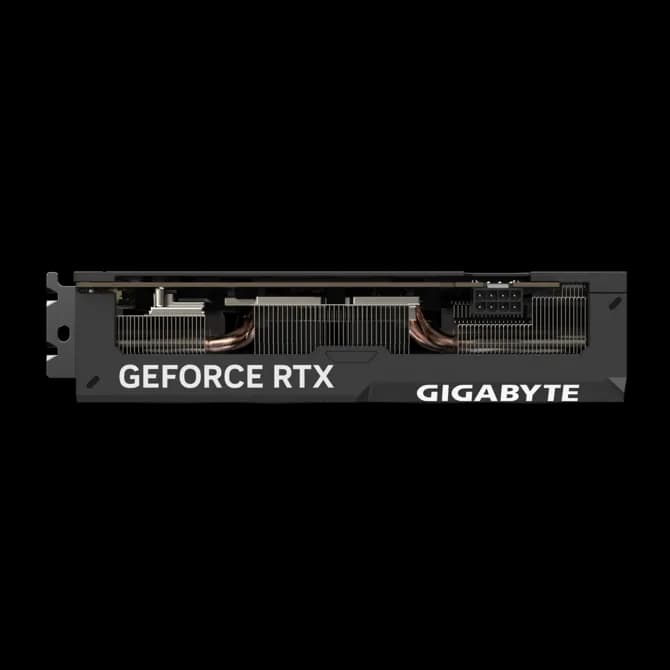

HEAT PIPES DIRECT TOUCH

The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

Power Through The Game

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Key Features:

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing

• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

• 3rd Generation RT Cores: Up to 2X ray tracing performance

• Powered by GeForce RTX™ 4060 Ti (8GB)

• Integrated with 8GB GDDR6 128bit memory interface

• WINDFORCE cooling system

• Protection back plate

  Specification:

  Graphics Processing	GeForce RTX™ 4060 Ti (8GB)
  Core Clock	2550 MHz (Reference Card: 2535 MHz)
  CUDA® Cores	4352
  Memory Clock	18 Gbps
  Memory Size	8 GB
  Memory Type	GDDR6
  Memory Bus	128 bit
  Card Bus	PCI-E 4.0
  Digital max resolution	7680x4320
  Multi-view	4
  Card size	L=201 W=122 H=48 mm
  PCB Form	ATX
  DirectX	12 Ultimate
  OpenGL	4.6
  Recommended PSU	500W
  Power Connectors	8 pin*1

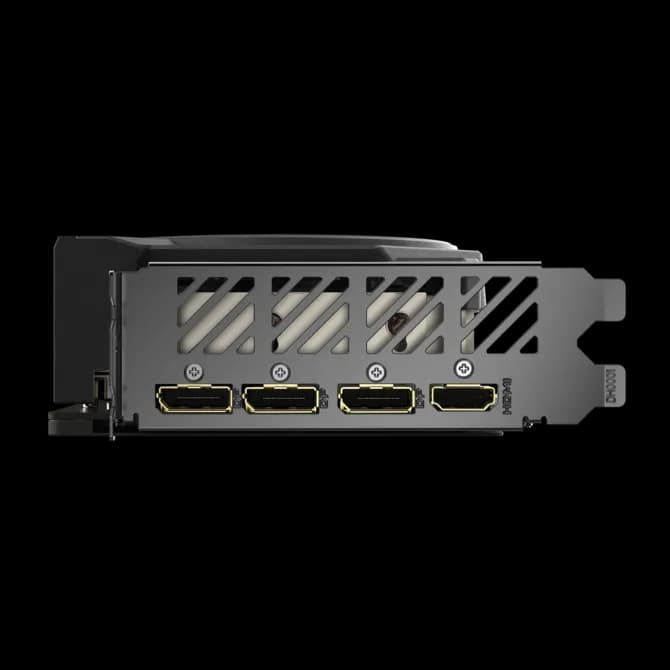

  Output	DisplayPort 1.4a*3
  	HDMI 2.1a*1
  Accessories	Quick guide
