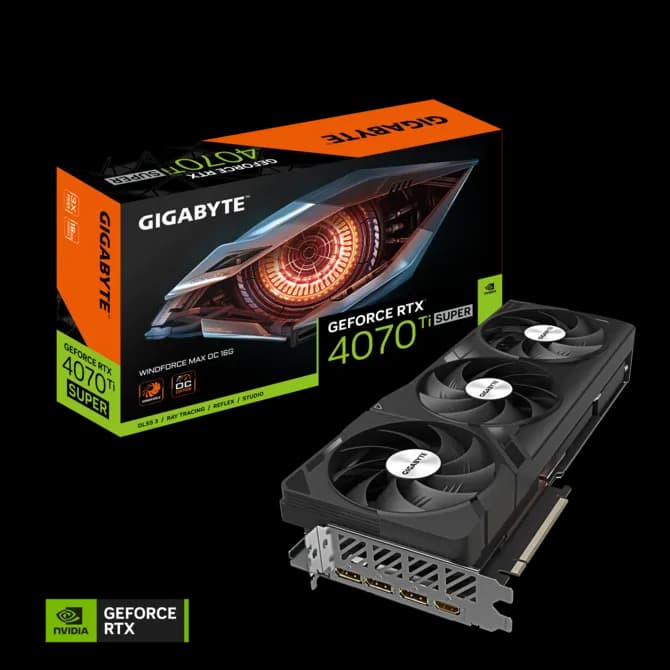

Gigabyte RTX 4070 Ti Super Windforce Max OC 16Gb Graphics Card

WINDFORCE COOLING SYSTEM

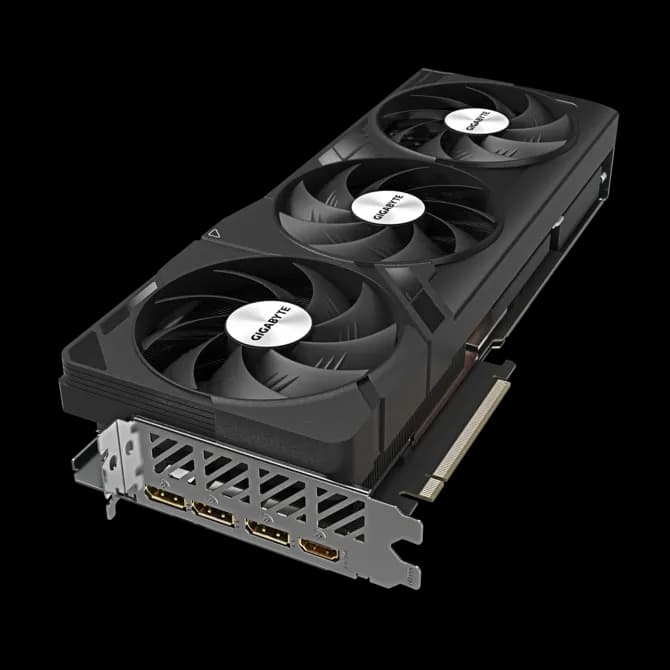

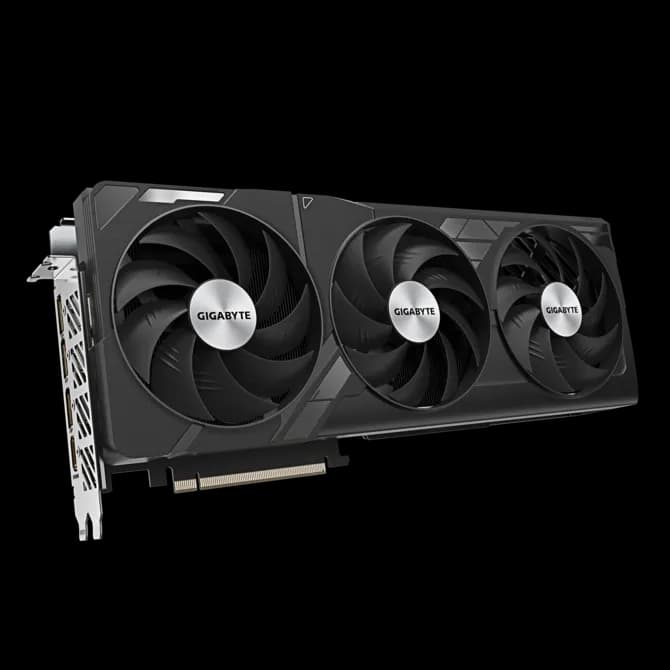

The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

MAXIMUM HEATSINK DESIGN

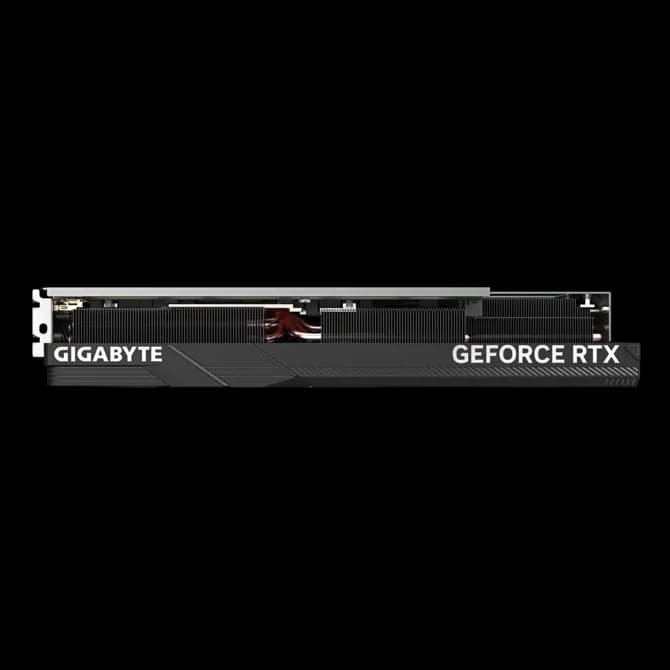

Engineered with oversized heatsink to ensure long-lasting, high-performance graphics card operation while maintaining low GPU temperatures. The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

Power Through The Game

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Key Features:

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing

• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

• 3rd Generation RT Cores: Up to 2X ray tracing performance

• Powered by GeForce RTX™ 4070 Ti SUPER

• Integrated with 16GB GDDR6X 256bit memory interface

• WINDFORCE Cooling System

• Maximum Heatsink Design

• Dual BIOS

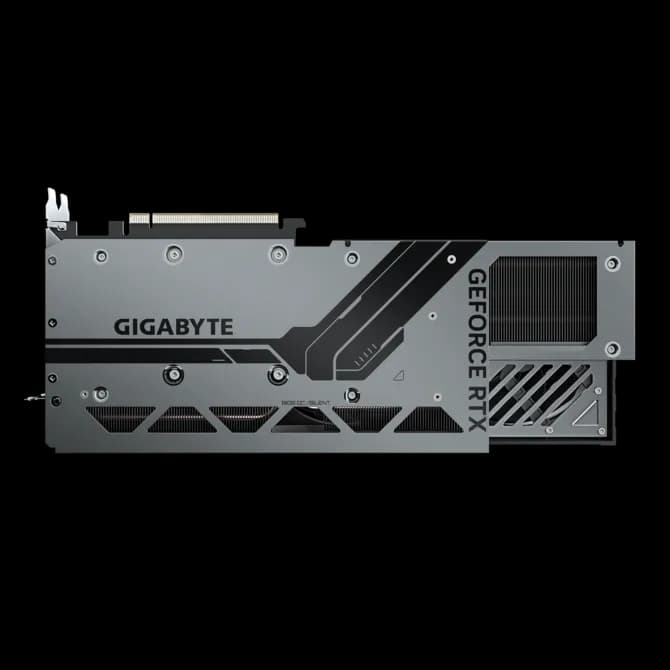

• Protection metal back plate

• Anti-sag bracket

  Specification:

  Graphics Processing	GeForce RTX™ 4070 Ti SUPER
  Core Clock	2655 MHz (Reference card: 2610 MHz)
  CUDA® Cores	8448
  Memory Clock	21 Gbps
  Memory Size	16 GB
  Memory Type	GDDR6X
  Memory Bus	256 bit
  Card Bus	PCI-E 4.0
  Digital max resolution	7680x4320
  Multi-view	4
  Card size	L=331 W=136 H=55.5 mm
  PCB Form	ATX
  DirectX	12 Ultimate
  OpenGL	4.6
  Recommended PSU	750W
  Power Connectors	16 pin *1

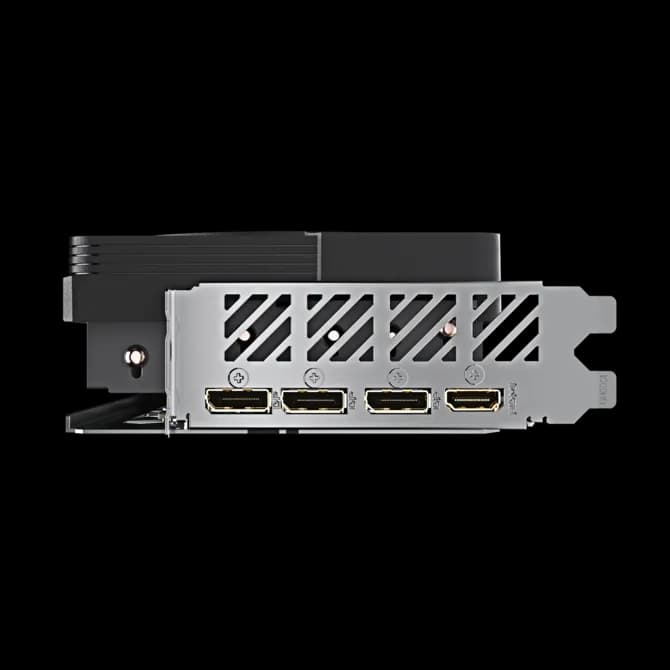

  Output	DisplayPort 1.4a *3
  	HDMI 2.1a *1
  Accessories	1. Quick guide
  	2. Anti-sag bracket
  	3. Anti-sag bracket installation guide
  	4. One 16-pin to two 8-pin power adaptor
