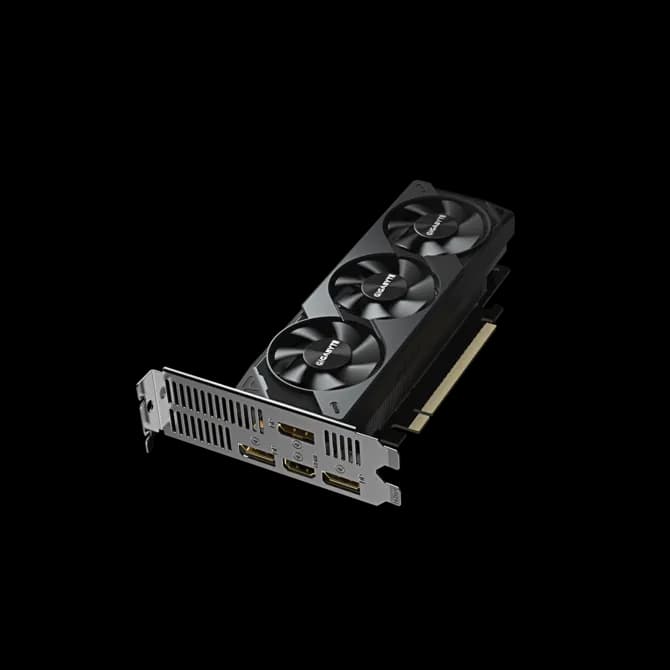

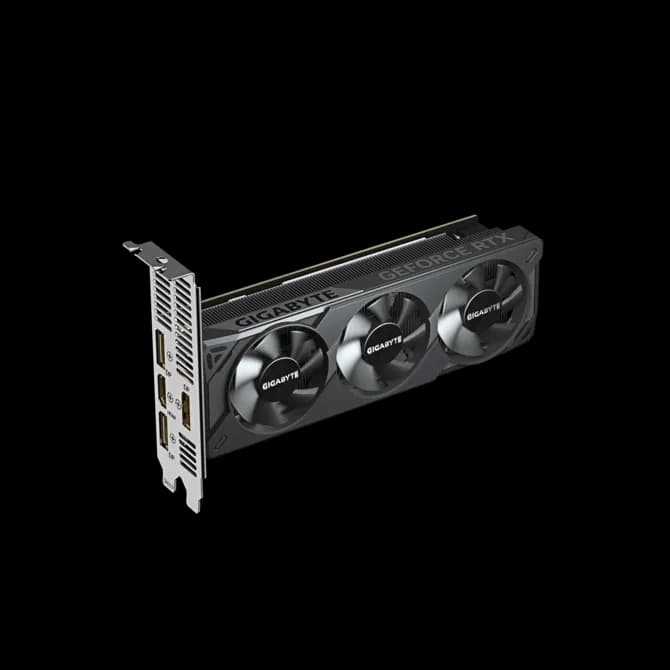

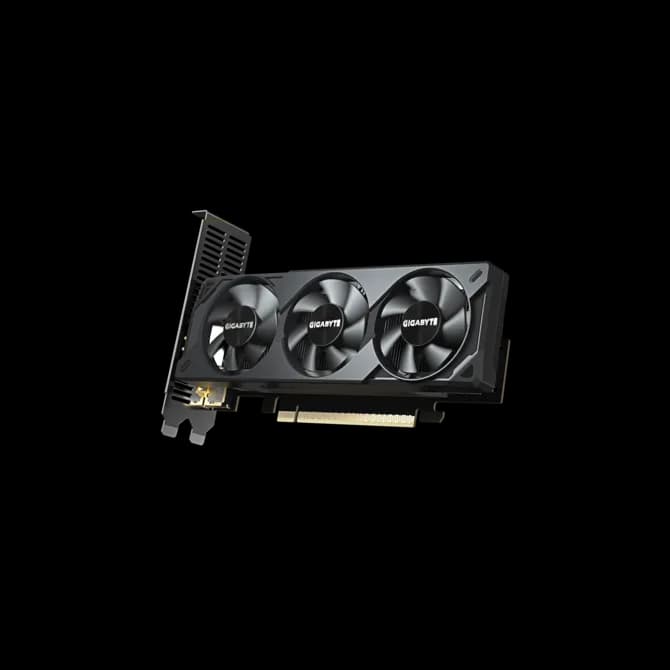

Gigabyte RTX 5060 OC Low Profile 8Gb GDDR7 Graphics Card

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM

GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.

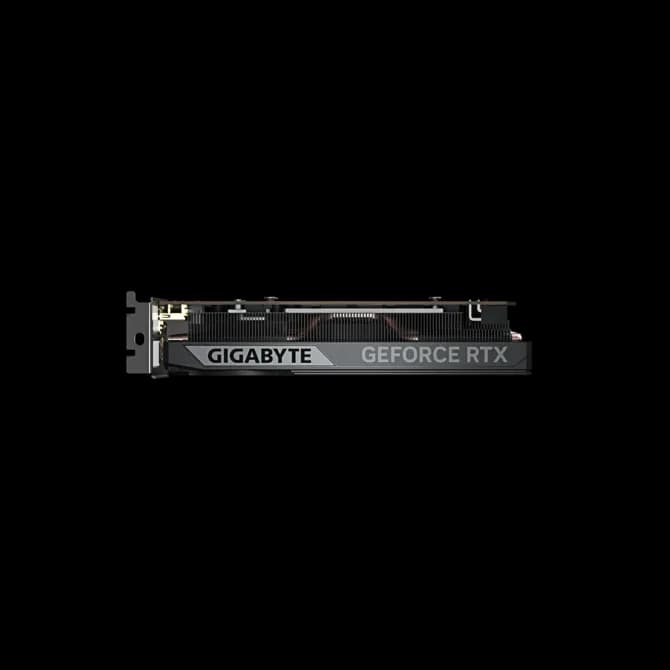

LOW PROFILE DESIGN

At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Key Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4

• Powered by GeForce RTX™ 5060

• Integrated with 8GB GDDR7 128 bit memory interface

• Low Profile Design with 182mm card length

• Server-grade Thermal conductive gel

• Graphene Nano Lubricant

• Supports up to 4 displays

  Specification:

  Graphics Processing	GeForce RTX™ 5060
  Core Clock	2512 MHz (Reference card : 2497 MHz)
  CUDA® Cores	3840
  Memory Clock	28 Gbps
  Memory Size	8 GB
  Memory Type	GDDR7
  Memory Bus	128 bit
  Card Bus	PCI-E 5.0
  Digital max resolution	7680x4320
  Multi-view	4
  Card size	L=182 W=69 H=36
  PCB Form	ATX
  DirectX	DirectX 12 API
  OpenGL	4.6
  Recommended PSU	550W
  Power Connectors	8 Pin*1

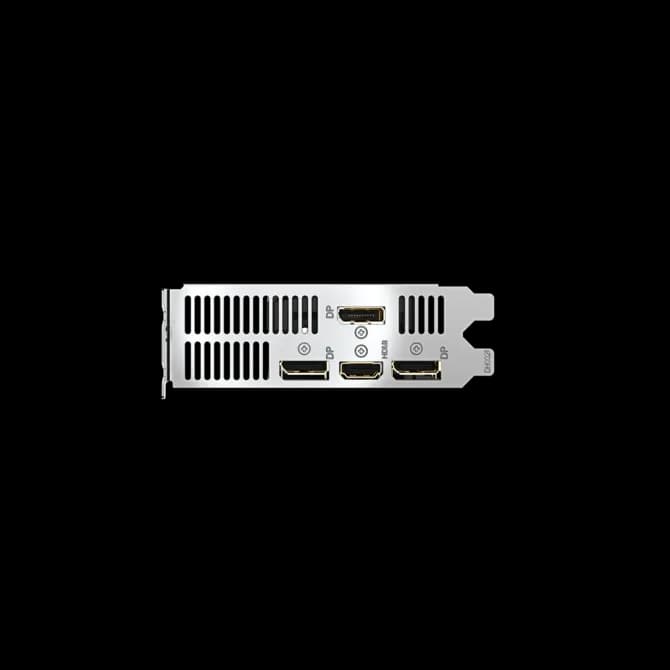

  Output	DisplayPort 2.1b *2
  	DisplayPort 1.4a *1
  	HDMI 2.1b *1
  Accessories	1. Quick guide
  	2. Low Profile Bracket
