The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Key Features:
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system

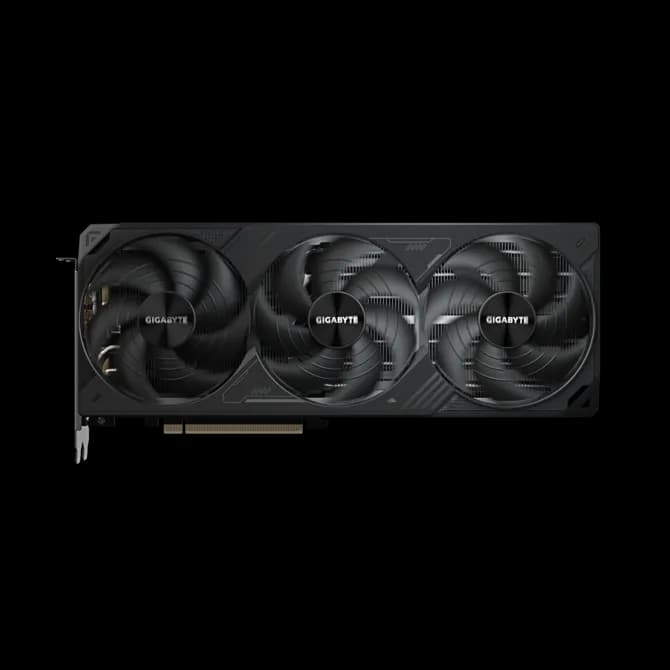

Hawk fan
Server-grade thermal conductive gel
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
Specification:
Graphics Processing | GeForce RTX™ 5070 Ti |
Core Clock | 2452 MHz |
CUDA® Cores | 8960 |
Memory Clock | 28 Gbps |
Memory Size | 16GB |
Memory Type | GDDR7 |
Memory Bus | 256 bit |
Card Bus | PCI-E 5.0 |
Digital max resolution | 7680 x 4320 |
Multi-view | 4 |
Card size | L=304 W=126 H=50 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | OpenGL 4.6 |
Recommended PSU | 750W |
Power Connectors | 16 pin*1 |

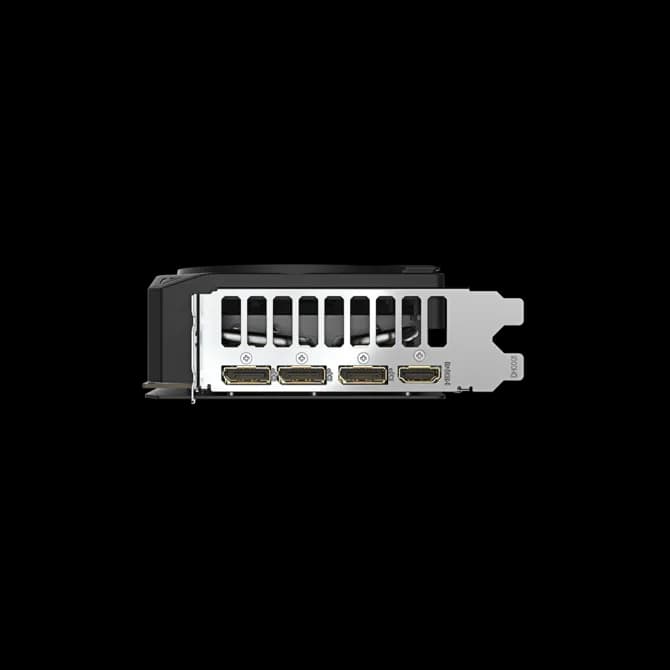

Output | DisplayPort 2.1b x3 |
| HDMI 2.1b x1 |
Accessories | 1. VGA manual |
| 2. 1x 12V-2x6 to 2x PCIe 8pin adapter |
| 3. Versatile VGA holder |
| 4. Versatile VGA holder manual |
