Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage：4*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking：5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Unleash Ultimate Performance with One-Click Activation.
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
Enhance DDR5 speeds with a single click.
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
GIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
The 5G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Featuring PCIe 5.0 x16 slot and PCIe 5.0/4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.
High-End Audio CapacitorsAudio Noise Guard
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Specifications
CPU | AMD Socket AM5, support for: |
AMD Ryzen™ 9000 Series Processors/ | |
AMD Ryzen™ 8000 Series Processors/ | |
AMD Ryzen™ 7000 Series Processors | |
(Go to GIGABYTE's website for the latest CPU support list.) | |
Chipset | AMD X870E |
Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz | |
* Support for DisplayPort 1.4 version and HDR. | |
| |
Integrated Graphics Processor with AMD Radeon™ Graphics support: | |
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
* Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
** Support for native HDMI 2.1 TMDS compatible ports. | |
| |
(Graphics specifications may vary depending on CPU support.) | |
Audio | Realtek® ALC1220 CODEC |
* The back panel line out jack supports DSD audio. | |
| |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| |
Support for S/PDIF Out | |
LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE |
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
- BLUETOOTH 5.4 | |
- Support for 11be 160MHz wireless standard | |
(Actual data rate may vary depending on environment and equipment.) | |
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details. | |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode | |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| |
Chipset: | |
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. | |
| |
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs | |
4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. | |
| |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
USB | CPU+ASMedia USB4® controller: |
- 2 x USB4® USB Type-C® ports on the back panel | |
CPU: | |
- 2 x USB 3.2 Gen 1 ports on the back panel | |
Chipset: | |
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header | |
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
- 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
- 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors | |
1 x CPU fan header | |
1 x CPU fan/water cooling pump header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
3 x addressable RGB Gen2 LED strip headers | |
1 x RGB LED strip header | |
4 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support | |
2 x USB 3.2 Gen 1 headers | |
3 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
1 x reset jumper | |
1 x Clear CMOS jumper | |

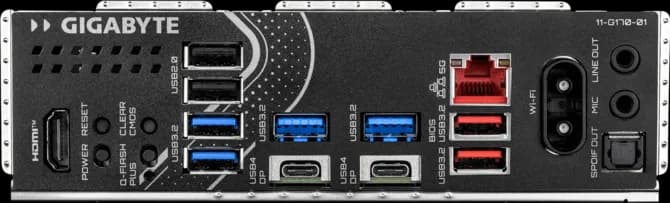

Back Panel Connectors | 1 x HDMI port (Note) |
1 x reset button | |
1 x power button | |
1 x Clear CMOS button | |
1 x Q-Flash Plus button | |
2 x USB 2.0/1.1 ports | |
4 x USB 3.2 Gen 1 ports | |
2 x USB4® USB Type-C® ports (DisplayPort (Note)) | |
1 x RJ-45 port | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
2 x antenna connectors (2T2R) | |
2 x audio jacks | |
1 x optical S/PDIF Out connector | |
| |
(Note) Actual support may vary by CPU. | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for GIGABYTE Control Center (GCC) |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| |
Support for Q-Flash | |
Support for Q-Flash Plus | |
Support for Smart Backup | |
Bundled Software | Norton® Internet Security (OEM version) |
Operating System | Support for Windows 11 64-bit |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
