In the age of local AI, GIGABYTE AI TOP is the all-round solution to win advantages ahead of traditional AI training methods. It features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, for most common open-source LLMs, in anyplace even on your desk.
The all-new AI TOP Utility 2.0 brings enhanced features and broader model support, empowering users from novices to experts to unlock AI's potential right at their desks.
The AI TOP Hardware features a series of GIGABYTE AI TOP products that are optimized in power efficiency and durability for AI training workloads. It includes upgradeable components and is easy to build at home.
AI TOP motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
AI TOP Series with steady power keeps your AI operation smooth.
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AI TOP series motherboards are engineered to endure and excel.
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Category | Specifications |
|---|---|
Processor (CPU) | LGA1851 socket, Supports Intel® Core™ Ultra Processors, L3 cache varies by CPU, Refer to CPU Support List |
Chipset | Intel® Z890 Express Chipset |
Memory (RAM) | Supports DDR5 up to 9500(O.C); 4 x DDR5 DIMM sockets (up to 256 GB); Dual channel; ECC (non-ECC mode), Non-ECC support; XMP & CUDIMM supported |
Integrated Graphics | Intel® HD Graphics (w/ integrated CPU); 1x Thunderbolt™ 4 (front); Up to 5120x2880@60Hz (DP) or 3840x2160@240Hz (USB4); 2x Thunderbolt™ 5 (rear) up to 7680x4320@60Hz (DP); Supports DP 2.1, HDCP 2.3 |
Audio | ESS ES9280AC DAC + 2 x ES9080; DTS® Sound Unbound™; High Definition Audio; 2-channel; S/PDIF Out (optical or line out, not both) |
LAN | 2 x Marvell® AQtion AQC113C 10GbE |
Wireless | Intel® Wi-Fi 7 BE200NGW; 802.11a/b/g/n/ac/ax/be; 2.4/5/6 GHz; Bluetooth 5.4; Requires Windows 11 SV3 for full functionality |
Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 5.0 x8 (shares bandwidth w/ x16); 1 x PCIe 4.0 x4 (chipset, shared w/ M2L_SB) |
Storage | CPU: 1 x M.2 PCIe 5.0 x4/x2 (M2A), 1 x M.2 PCIe 4.0 x4/x2 (M2B); Chipset: 1 x M.2 PCIe 4.0 x4/x2 (M2M), 1 x M.2 SATA/PCIe 4.0 x4/x2 (M2L), 4 x SATA 6Gb/s; RAID 0/1/5/10 for both SATA & NVMe |
USB Ports | Rear: 2 x Thunderbolt™ 5 (USB-C), 10 x USB 3.2 Gen 2 Type-A (red); Internal: 1 x USB4 (USB-C), 2 x USB 3.2 Gen 2x2 headers (Type-C), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
Internal I/O | 1 x 24-pin ATX, 2 x 8-pin 12V, CPU fan/pump headers, system fan headers & ext, RGB headers, front panel, Thunderbolt™ 4 connector, various USB headers, Clear CMOS, Power/Reset buttons, temp & noise sensor headers |

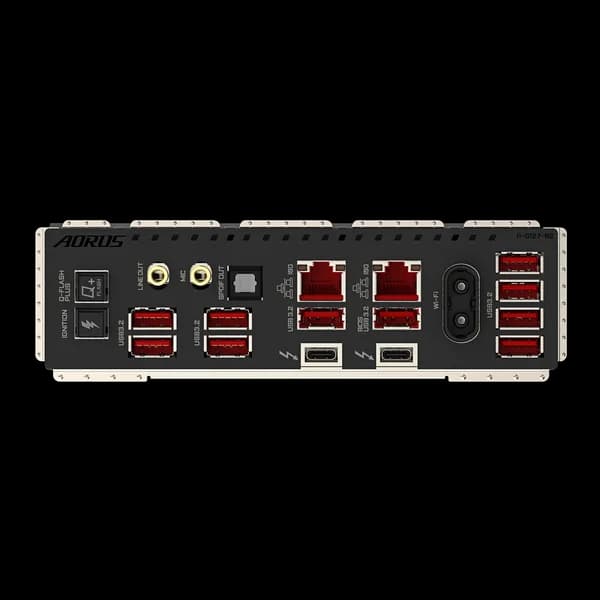

Rear I/O Panel | 2 x Thunderbolt™ 5 (USB-C), 10 x USB 3.2 Gen 2 Type-A (red), 2 x RJ-45, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF, Q-Flash Plus & OC Ignition buttons |
I/O Controller | iTE® I/O Controller |
H/W Monitoring | Voltage, Temperature, Fan speed, Flow rate, Fan fail warning, Speed control, Noise detection |
BIOS | 256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
Software Bundle | Norton® Internet Security (OEM), LAN bandwidth management |
OS Support | Windows 11 64-bit (version 24H2 or later) |
Form Factor | E-ATX; 30.48 cm x 30.5 cm |
