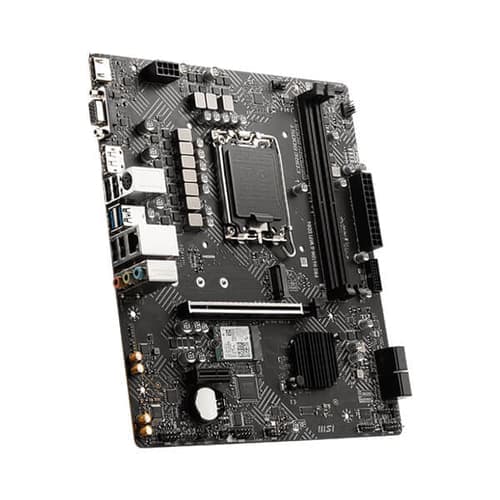

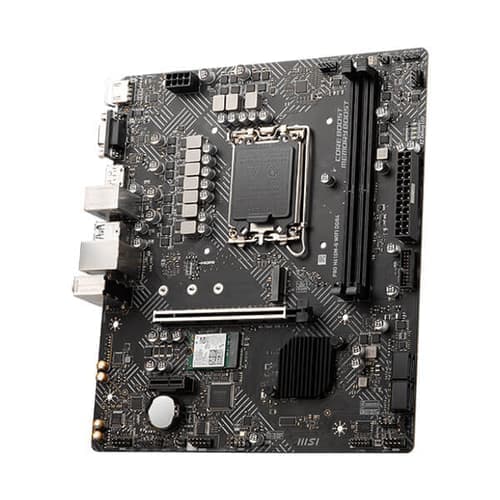

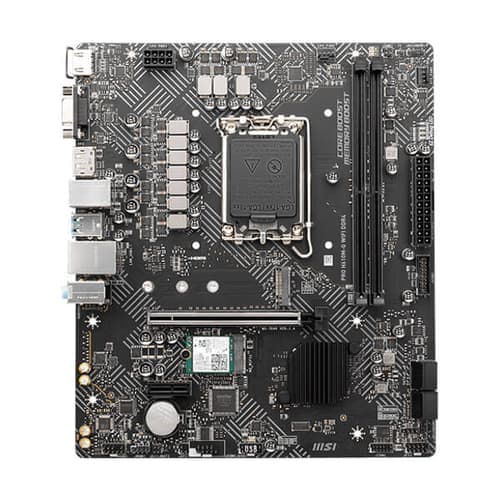

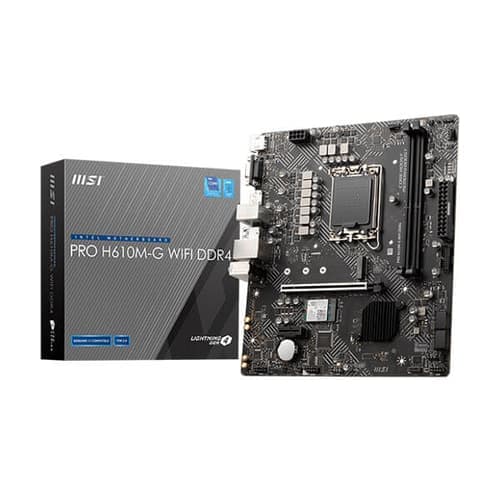

H610M GAMING WIFI DDR4 MOTHERBOARD

 Features:

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

• Supports DDR4 Memory, up to 3200(MAX) MHz

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Lightning Fast Experience: PCIe 4.0

• Audio Boost: Reward your ears with studio grade sound quality

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

• Wireless and Bluetooth: Intel^® Wi-Fi 5, Bluetooth 4.2

  Future Connectivity

  The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

  Easy Friendly

  Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

  Motherboard
  Platform	INTEL
  Socket	LGA1700
  CPU Type	14th Gen,13th Gen,12th Gen
  Chipset	H610
  Memory Speed	up to 3200
  Max Memory Support	64 GB
  Supported Memory Type	DDR4
  Channel Supported	Dual Channel
  Memory Feature	Supports non-ECC, un-buffered memory
  Graphics Port	1x HDMI,1x VGA,x DisplayPort
  Expansion Slots	1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors
  Wireless Networking	WiFi 5,Bluetooth 4.2

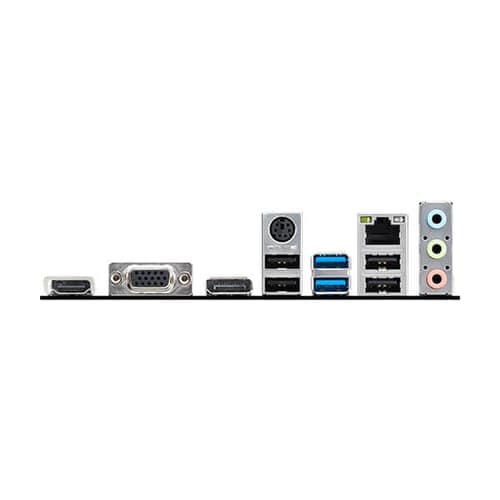

  Back Panel I/O Ports	HDMI VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
  Internal I/O Connector	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector
  Form Factor	Micro-ATX
  Warranty	3 Years
