The UNI FAN TL Wireless and TL LCD Wireless feature LIAN LI’s innovative wireless sync technology, utilizing a 2.4GHz wireless signal to control lighting effects and fan speed to further improve the PC building experience while delivering efficient cooling, dazzling lighting, and quiet operation.
Elevate the PC setup with the UNI FAN TL wireless LCD and non-LCD version. Two sizes: 120mm and 140mm fans are available in black and white, with options for standard and reverse blade configurations meeting all kinds of needs.
By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.
Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller.
The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable.
For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.
The LCD and non-LCD versions use different receivers. For mixed clusters, use the LCD version receiver.
Reciever for LCD version
Reciever for non-LCD version
UNI FAN TL Wireless: PWM cable powers the LED and motor.
UNI FAN TL LCD Wireless: PWM cable powers the LED and motor; USB cable transmits LCD signals and provides LCD power.
The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:
USB splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 TL LCD wireless fans.
USB splitter cable with SATA for additional power (e.g., LIAN LI Edge hub): Supports up to 9 TL LCD wireless fans.
Furthermore, a single motherboard can support up to 20 UNI FAN TL LCD wireless fans.
ONE CONTROLLER FOR ALL
The L-Wireless Controller supports UNI FAN TL Wireless, UNI FAN SL Wireless, Strimer Wireless, and more future products.
The L-Wireless Controller can transmit signals to up to 10 channels.
Each group of wireless fans occupies one channel, while each Strimer Wireless uses an additional channel.
When all 10 channels are connected to the UNI FAN TL (non-LCD) wireless, the L-Wireless Controller can manage up to 40 fans at a time.
In the future, the L-Wireless Controller will also be compatible with more LIAN LI wireless devices. With this controller, you can create a stunning and streamlined LIAN LI ecosystem that combines beauty and simplicity!

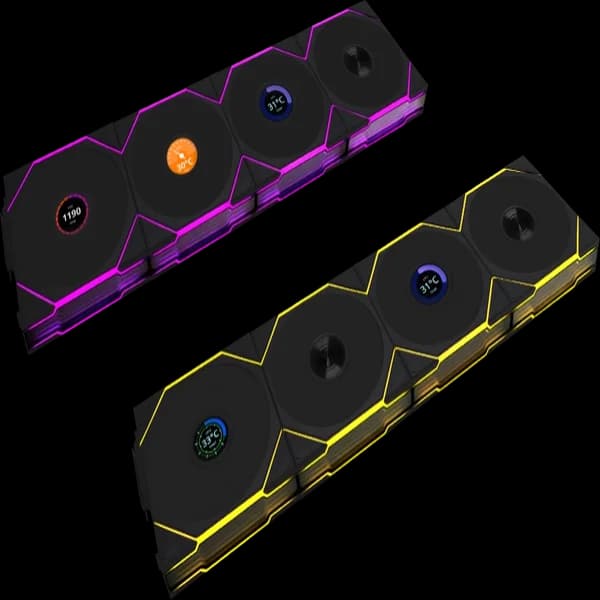

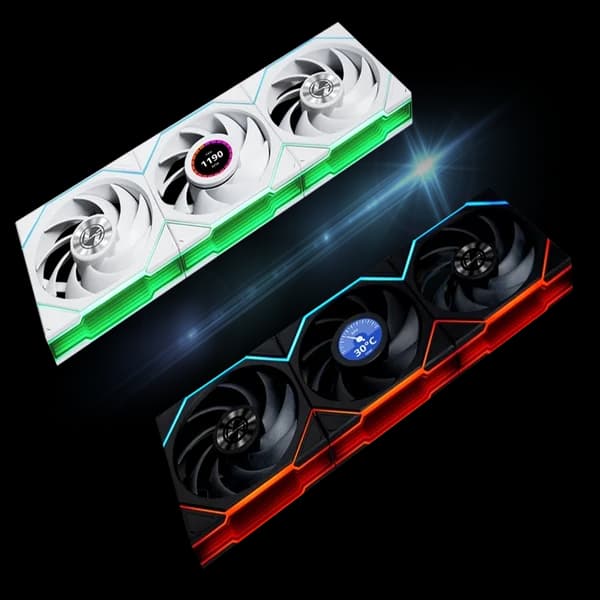

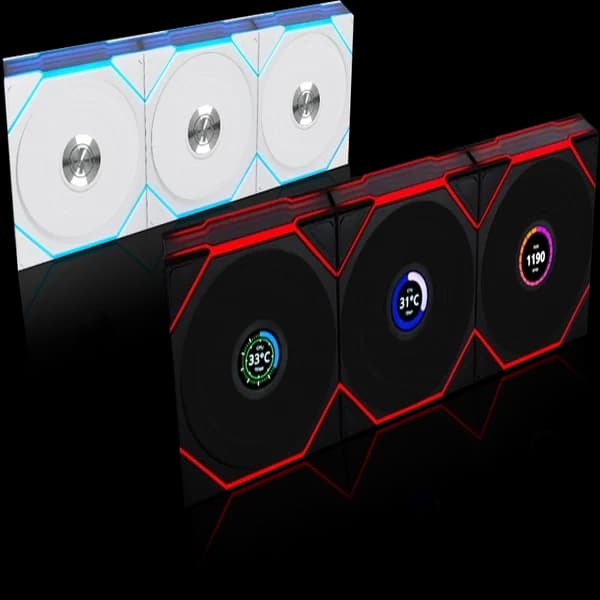

UNI FAN TL Wireless and TL LCD wireless now can be mix-matched into a group, offering versatile configurations and empowering creativity.

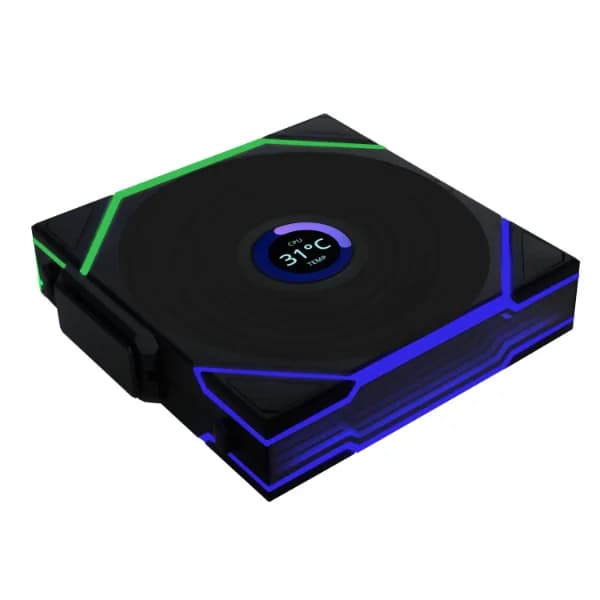

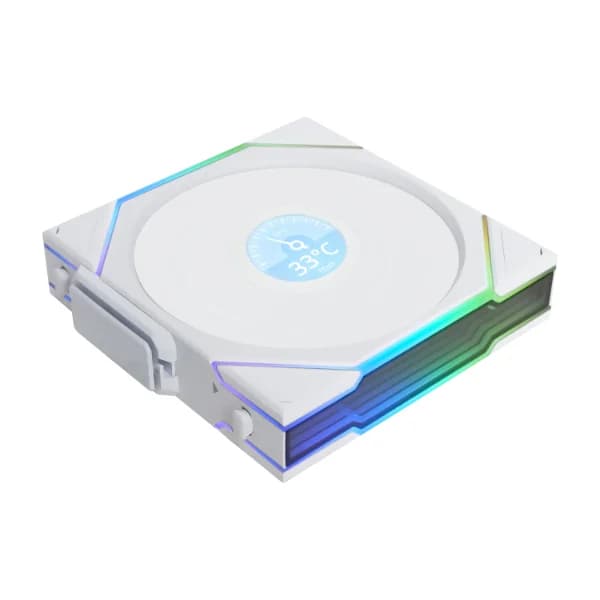

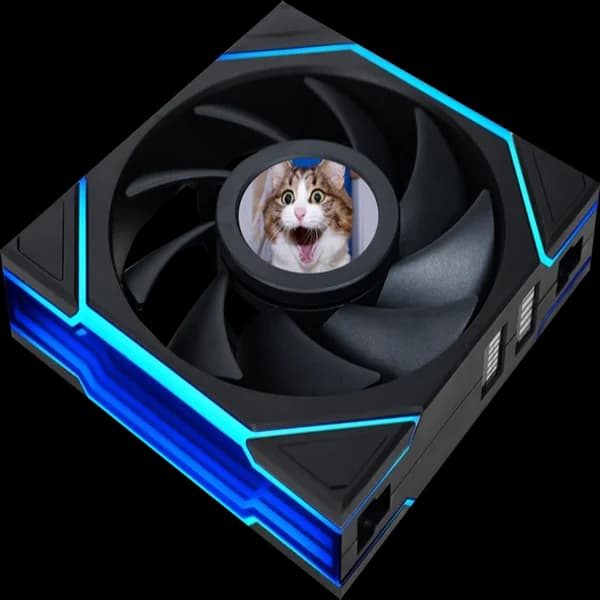

The UNI FAN TL LCD Wireless carries forward the legacy of the world’s first LCD-equipped fan. It features a 1.6” circular LCD screen with 60Hz refresh rate (upgraded from 30Hz) that integrates seamlessly with LIAN LI’s L-Connect 3 software, offering exceptional customizability.

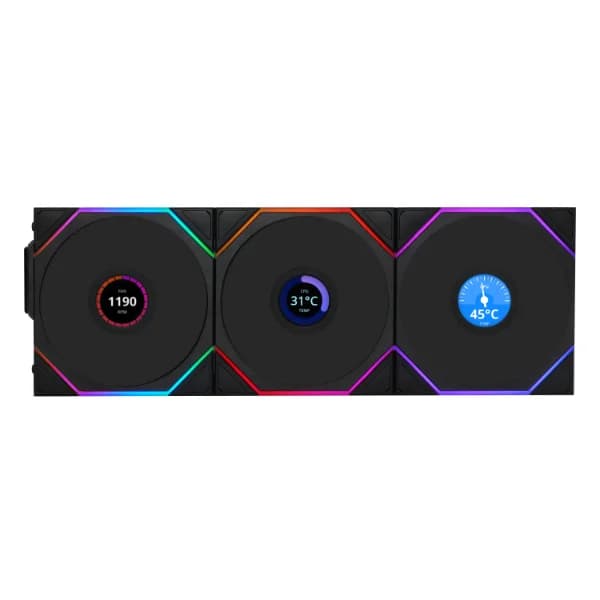

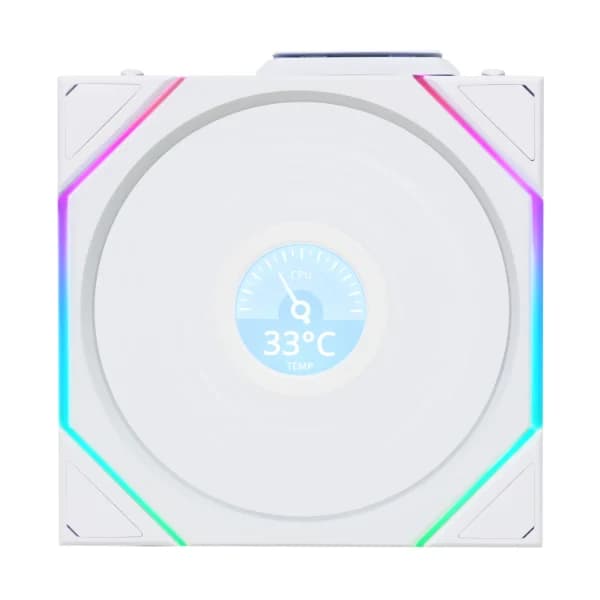

Monitor CPU and GPU temperature and load with new built-in animated hardware sensors displayed directly on the screen.For clusters of 3 LCD fans, multiple data points can be displayed simultaneously.
Model | Airflow | Static Pressure | Noise | Speed |
TL Wireless 120 | 90.1 CFM | 3.97 mmH20 | 33 dBA | 0,200-2600 RPM |
TL Wireless 120 (Reverse Blade) | 83.4CFM | 2.66 mmH20 | 34 dBA | 0,200-2300 RPM |
TL LCD Wireless 120 | 62 CFM | 2.9 mmH20 | 27 dBA | 0,350-1900 RPM |
TL LCD Wireless 120 (Reverse Blade) | 54.3 CFM | 2.83 mmH20 | 31 dBA | 0,350-1900 RPM |
TL Wireless 140 | 103.9 CFM | 2.34 mmH20 | 29 dBA | 0,200-1800 RPM |
TL Wireless 140 (Reverse Blade) | 103.9 CFM | 2.27 mmH20 | 31 dBA | 0200-1800 RPM |
TL LCD Wireless 140 | 68.1 CFM | 3.5 mmH20 | 28.5 dBA | 0,400-1600 RPM |
TL LCD Wireless 140 (Reverse Blade) | 68.1 CFM | 3.1 mmH20 | 29.4 dBA | 0,350-1600 RPM |
P28 120 | 92 CFM | 4.79 mmH20 | 32.1 dBA | 300-2600 RPM |
PRODUCT NAME | UNI FAN TL120 LCD Wireless | |||
MODEL | 12TLLCD1W3B | 12TLLCD1W3W | 12TLLCD1W1B | 12TLLCD1W1W |
COLOR | BLACK | WHITE | BLACK | WHITE |
NUMBER OF FANS | 3 | 3 | 1 | 1 |
CONTROLLER | Yes | No | ||
CONNECTOR TYPE | 4-PIN PWM + 9-PIN USB x1, | 4-PIN PWM + 9-PIN USB x1 | ||
3-12V PWM to SATA x1 | ||||
FAN DIMENSION | 120x124x28mm | |||
FAN SPEED | 0,350~1900 RPM | |||
MAX. AIR PRESSURE | 2.9 mmH2O (Maximum) | |||
MAX. AIRFLOW | 62 CFM (Maximum) | |||
ACOUSTIC NOISE | 27 dBA (Maximum) | |||
INPUT POWER | 7.08W | |||
MATERIAL | PBT&PA66 | |||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
OPERATE VOLTAGE | DC12V & 5V | |||
WARRANTY | 3 years | |||
PRODUCT NAME | UNI FAN TL 120 Wireless | |||
MODEL | 12TL1W3B | 12TL1W3W | 12TL1W1B | 12TL1W1W |
COLOR | BLACK | WHITE | BLACK | WHITE |
NUMBER OF FANS | 3 | 3 | 1 | 1 |
CONTROLLER | Yes | No | ||
CONNECTOR TYPE | 4-PIN PWM , | 4-PIN PWM | ||
3-12V PWM to SATA x1 | ||||
FAN DIMENSION | 120x124x28mm | |||
FAN SPEED | 0,200~2600 RPM | |||
MAX. AIR PRESSURE | 3.97 mmH2O (Maximum) | |||
MAX. AIRFLOW | 90.1 CFM (Maximum) | |||
ACOUSTIC NOISE | 33 dBA (Maximum) | |||
INPUT POWER | 5.8W | |||
MATERIAL | PBT&PA66 | |||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
OPERATE VOLTAGE | DC12V & 5V | |||
WARRANTY | 3 years | |||
PRODUCT NAME | UNI FAN TL120 LCD Reverse Blade Wireless | |||
MODEL | 12RTLLCD1W3B | 12RTLLCD1W3W | 12RTLLCD1W1B | 12RTLLCD1W1W |
COLOR | BLACK | WHITE | BLACK | WHITE |
NUMBER OF FANS | 3 | 3 | 1 | 1 |
CONTROLLER | Yes | No | ||
CONNECTOR TYPE | 4-PIN PWM + 9-PIN USB x1, | 4-PIN PWM + 9-PIN USB x1 | ||
3-12V PWM to SATA x1 | ||||
FAN DIMENSION | 120x124x28mm | |||
FAN SPEED | 0,350~1900 RPM | |||
MAX. AIR PRESSURE | 2.83 mmH2O (Maximum) | |||
MAX. AIRFLOW | 54.3 CFM (Maximum) | |||
ACOUSTIC NOISE | 31 dBA (Maximum) | |||
INPUT POWER | 7.08W | |||
MATERIAL | PBT&PA66 | |||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
OPERATE VOLTAGE | DC12V & 5V | |||
WARRANTY | 3 years | |||
PRODUCT NAME | UNI FAN TL 120 Reverse Blade Wireless | |||
MODEL | 12RTL1W3B | 12RTL1W3W | 12RTL1W1B | 12RTL1W1W |
COLOR | BLACK | WHITE | BLACK | WHITE |
NUMBER OF FANS | 3 | 3 | 1 | 1 |
CONTROLLER | Yes | No | ||
CONNECTOR TYPE | 4-PIN PWM x1, 3-12V PWM to SATA x1 | 4-PIN PWM | ||
FAN DIMENSION | 120x124x28mm | |||
FAN SPEED | 0,200~2300 RPM | |||
MAX. AIR PRESSURE | 2.66 mmH2O (Maximum) | |||
MAX. AIRFLOW | 83.4 CFM (Maximum) | |||
ACOUSTIC NOISE | 34 dBA (Maximum) | |||
INPUT POWER | 4.5W | |||
MATERIAL | PBT&PA66 | |||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
OPERATE VOLTAGE | DC12V & 5V | |||
WARRANTY | 3 years | |||
PRODUCT NAME | UNI FAN TL140 LCD Wireless | UNI FAN TL140 Wireless | ||
MODEL | 14TLLCD1W1B | 14TLLCD1W1W | 14TL1W1B | 14TL1W1W |
COLOR | BLACK | WHITE | BLACK | WHITE |
NUMBER OF FANS | 1 | 1 | ||
CONTROLLER | No | No | ||
CONNECTOR TYPE | 4-PIN PWM + 9-PIN USB x1 | 4-PIN PWM | ||
FAN DIMENSION | 142x140x28mm | 142x140x28mm | ||
FAN SPEED | 0, 400~1600 RPM | 0,200~1800 RPM | ||
MAX. AIR PRESSURE | 3.5 mmH2O (Maximum) | 2.34 mmH2O (Maximum) | ||
MAX. AIRFLOW | 68.1 CFM (Maximum) | 103.9 CFM (Maximum) | ||
ACOUSTIC NOISE | 28.5 dBA (Maximum) | 29 dBA (Maximum) | ||
INPUT POWER | 6.72W | 4.6W | ||
MATERIAL | PA66 PBT | PA66 LCP | ||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
OPERATE VOLTAGE | DC12V & 5V | |||
WARRANTY | 3 years | |||
PRODUCT NAME | UNI FAN TL WIRELESS LCD 140 REVERSE BLADE | UNI FAN TL WIRELESS 140 REVERSE BLADE | ||
MODEL | 14RTLLCD1W1B | 14RTLLCD1W1W | 14RTL1W1B | 14RTL1W1W |
COLOR | BLACK | WHITE | BLACK | WHITE |
NUMBER OF FANS | 1 | 1 | ||
CONTROLLER | No | No | ||
CONNECTOR TYPE | 4-PIN PWM + 9-PIN USB x1 | 4-PIN PWM | ||
FAN DIMENSION | 142x140x28mm | 142x140x28mm | ||
FAN SPEED | 0,350~1600 RPM | 0.200~1800 RPM | ||
MAX. AIR PRESSURE | 3.1 mmH2O (Maximum) | 2.27 mmH2O (Maximum) | ||
MAX. AIRFLOW | 68.1 CFM (Maximum) | 103.9 CFM (Maximum) | ||
ACOUSTIC NOISE | 29.4 dBA (Maximum) | 31 dBA (Maximum) | ||
INPUT POWER | 6.72W | 4.6W | ||
MATERIAL | PA66 PBT | PA66 LCP | ||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
OPERATE VOLTAGE | DC12V & 5V | |||
WARRANTY | 3 years | |||
