Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
2565 MHz / 18 Gbps
8GB GDDR6
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

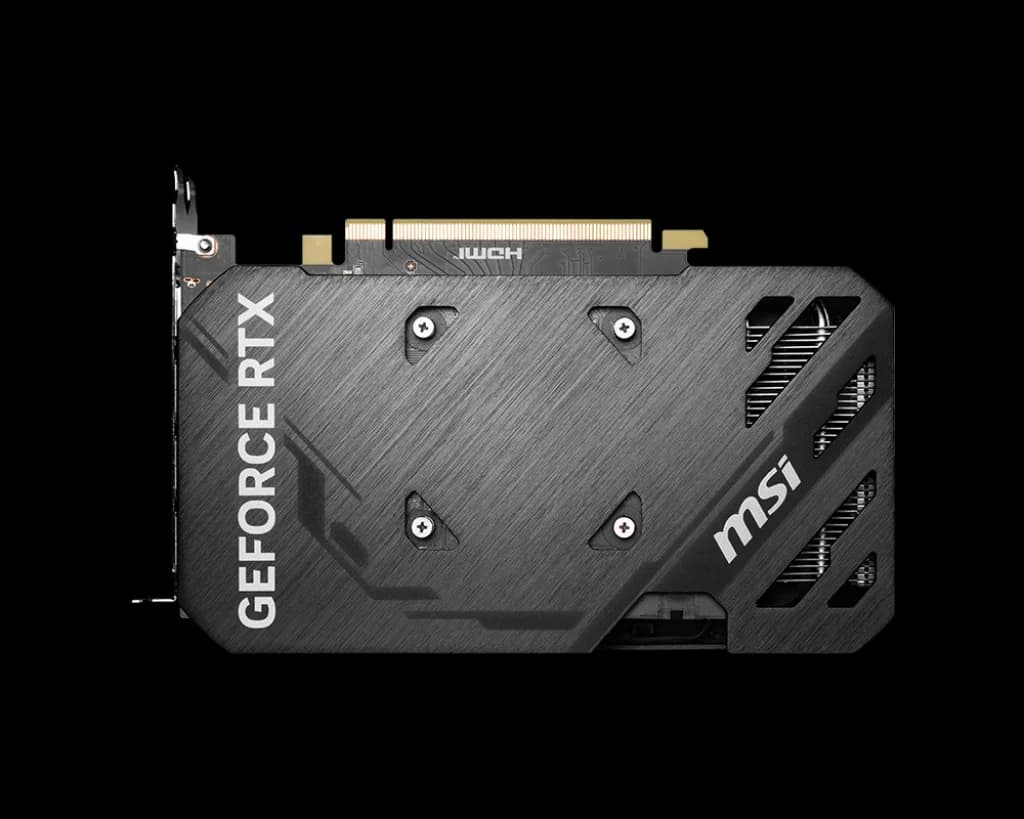

The reinforcing backplate features a flow-through design that provides additional ventilation.
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance

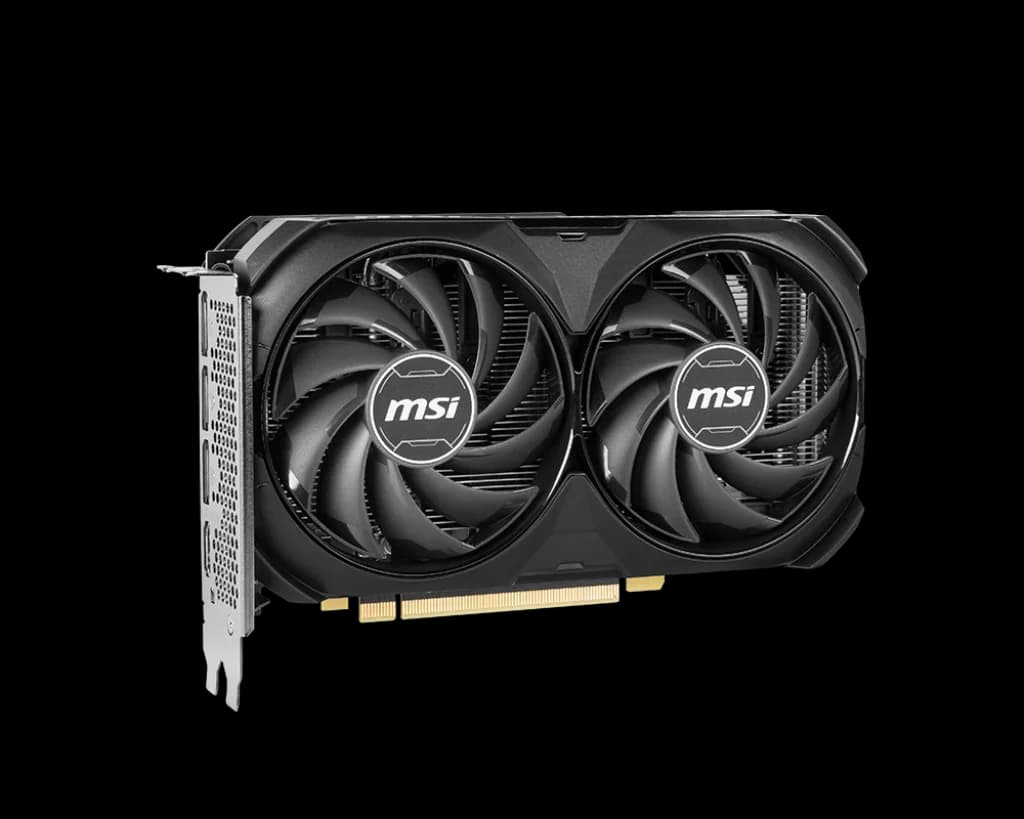

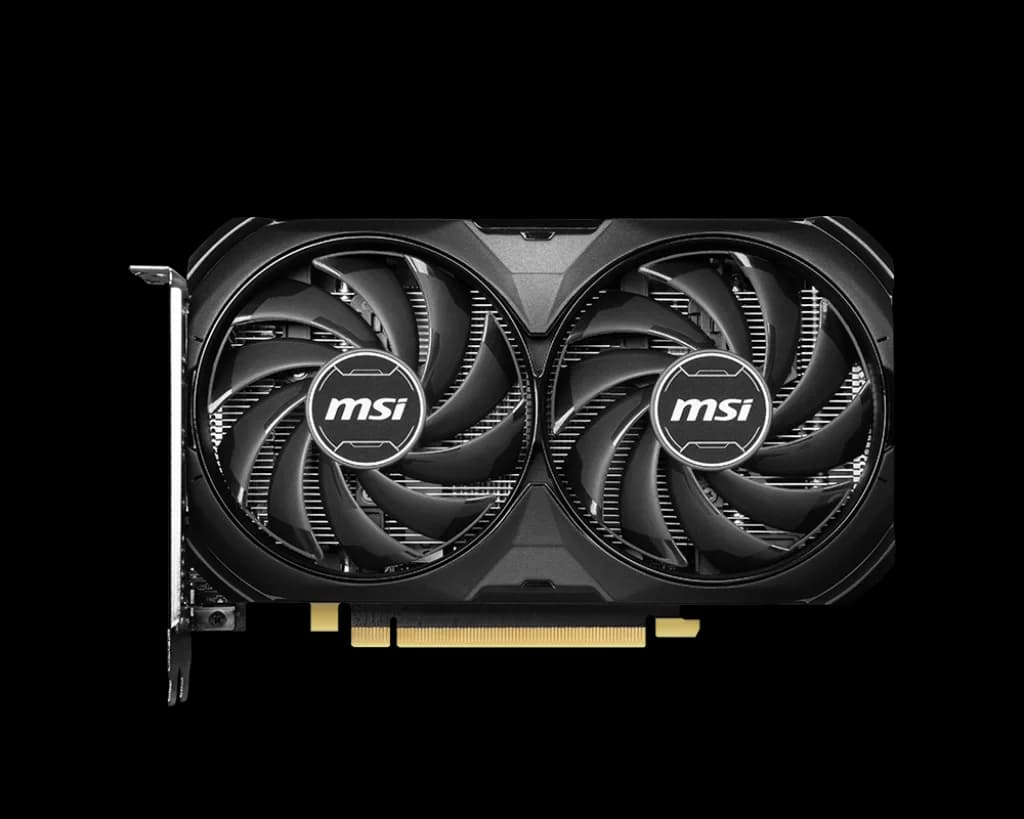

Two fans on a huge heatsink ensures a cool and quiet experience.
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Further With Al, Faster on RTX
Get next-level Al performance on
GeForce RTX.
Discover the RTX Al advantage. Built for the era of Al, GeForce RTXT™ and NVIDIA RTXTM GPUs feature specialized Al Tensor Cores that deliver cutting-edge performance and next-gen capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in Al power on Windows PCs is on RTX.
Specifications
Model Name | GeForce RTX™ 4060 Ti VENTUS 2X BLACK 8G OC |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 4060 Ti |
Interface | PCI Express® Gen 4 x16 (uses x8 electrically) |
Core Clocks | - Extreme Performance: 2580 MHz (MSI Center) |
- Boost: 2565 MHz | |
CUDA® Cores | 4352 Units |
Memory Speed | 18 Gbps |
Memory | 8GB GDDR6 |
Memory Bus | 128-bit |

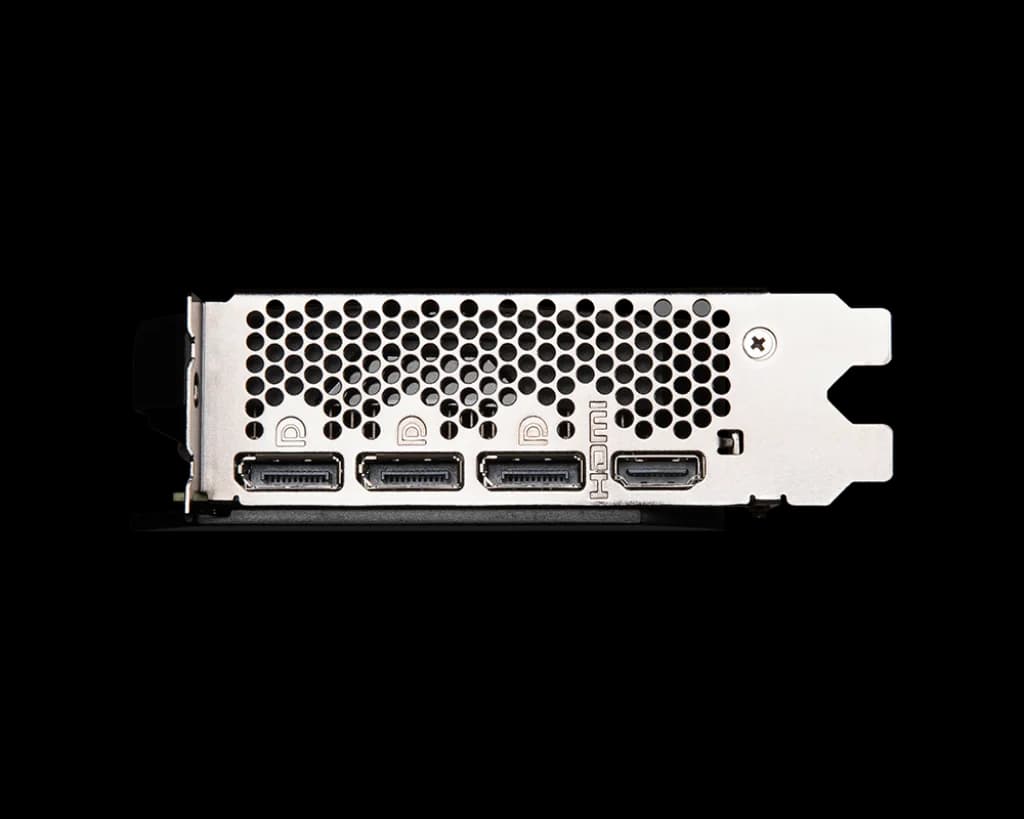

Output Ports | - 3x DisplayPort (v1.4a) |
- 1x HDMI™ (2.1a) — supports 4K@120Hz HDR, 8K@60Hz HDR, VRR | |
HDCP Support | Yes |
Power Consumption | 160W |
Power Connectors | 1x 8-pin |
Recommended PSU | 550W |
Card Dimensions (mm) | 199 x 120 x 42 mm |
Weight (Card / Package) | 546 g / 783 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® Technology | Yes |
Digital Maximum Resolution | 7680 x 4320 |
