VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

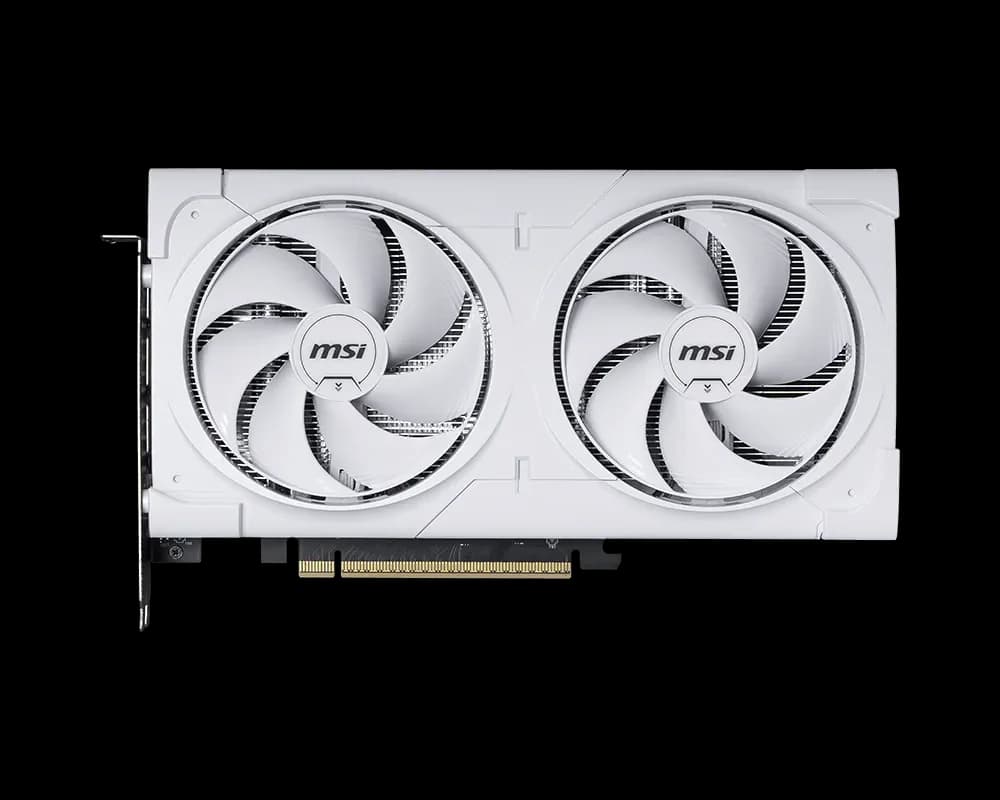

Two fans on a large heatsink ensure great cooling performance with a quieter experience.
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Powered by the NVIDIA Blackwell architecture and DLSS 4.5
Core Clock:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

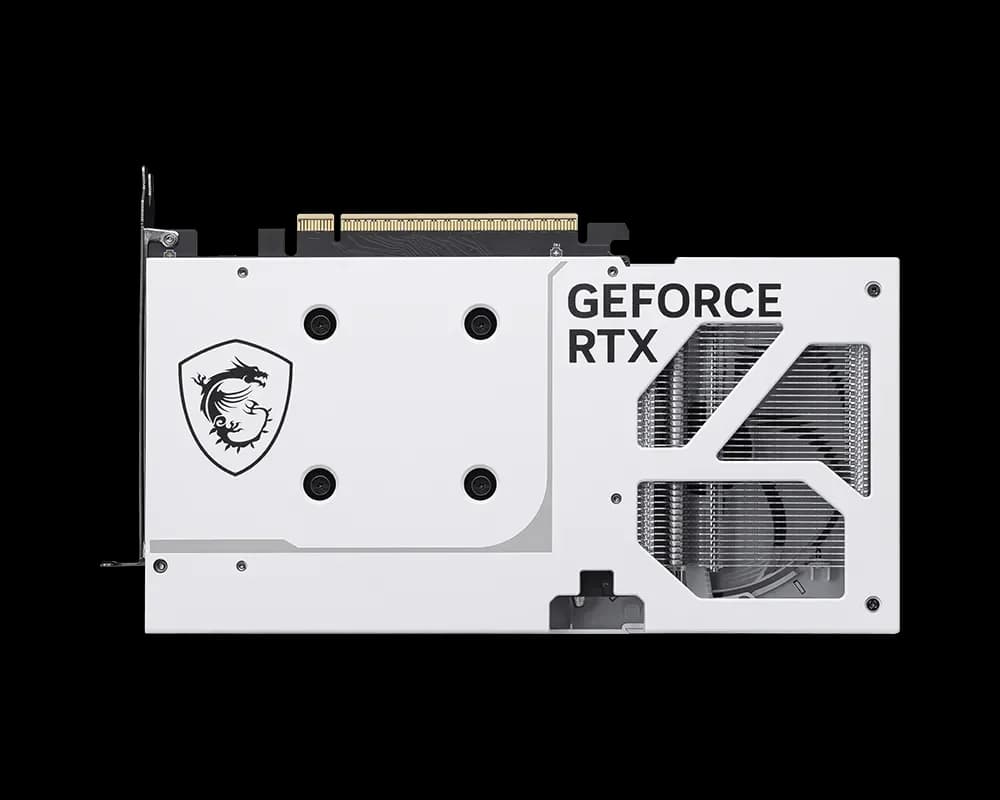

Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
SPECIFICATIONS
Marketing Name | GeForce RTX™ 5060 Ti 8G VENTUS 2X OC WHITE PLUS |
Model Name | G506T8V2CWP |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
Interface | PCI Express® Gen 5 x16 (uses x8) |
Core Clocks | Extreme Performance: 2617 MHz (MSI Center) |
| Boost: 2602 MHz |
CUDA® CORES | 4608 Units |
Memory Speed | 28 Gbps |
Memory | 8GB GDDR7 |
Memory Bus | 128-bit |

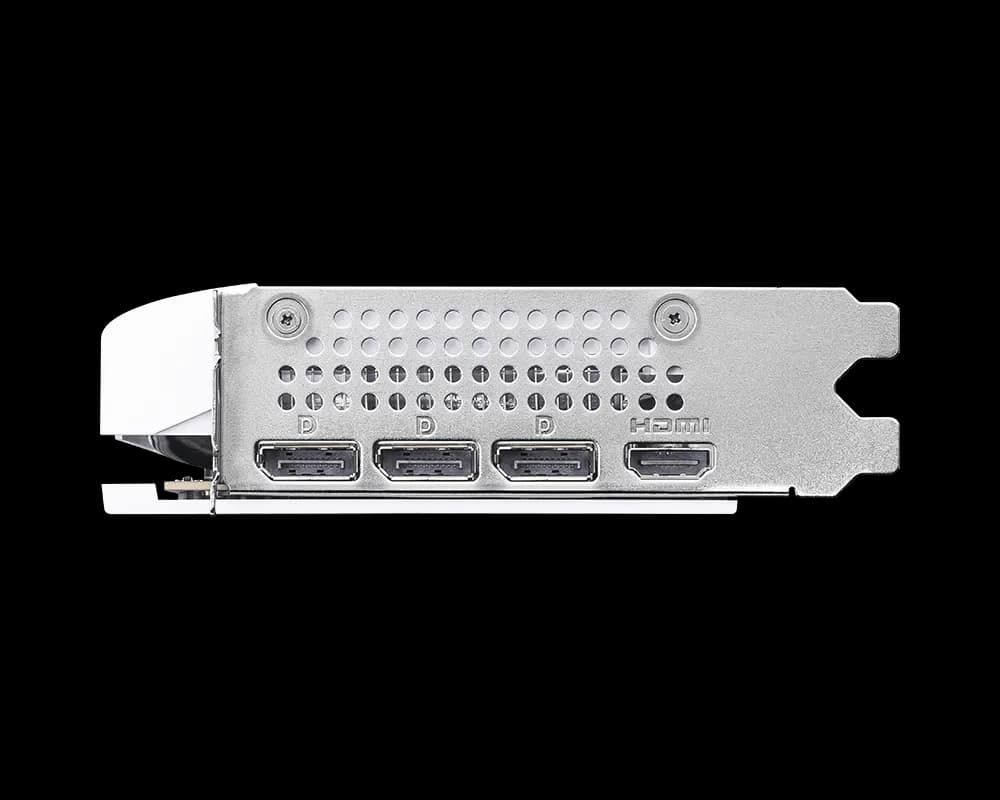

Output | DisplayPort x 3 (v2.1b) |
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
HDCP Support | Y |
Power consumption | 180 W |
Power connectors | 8-pin x1 |
Recommended PSU | 600 W |
Card Dimension (mm) | 227 x 126 x 41 mm |
Weight (Card / Package) | 600 g / 862 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
