Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks: Extreme Performance: 2535 MHz (MSI Center) / Boost: 2527 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

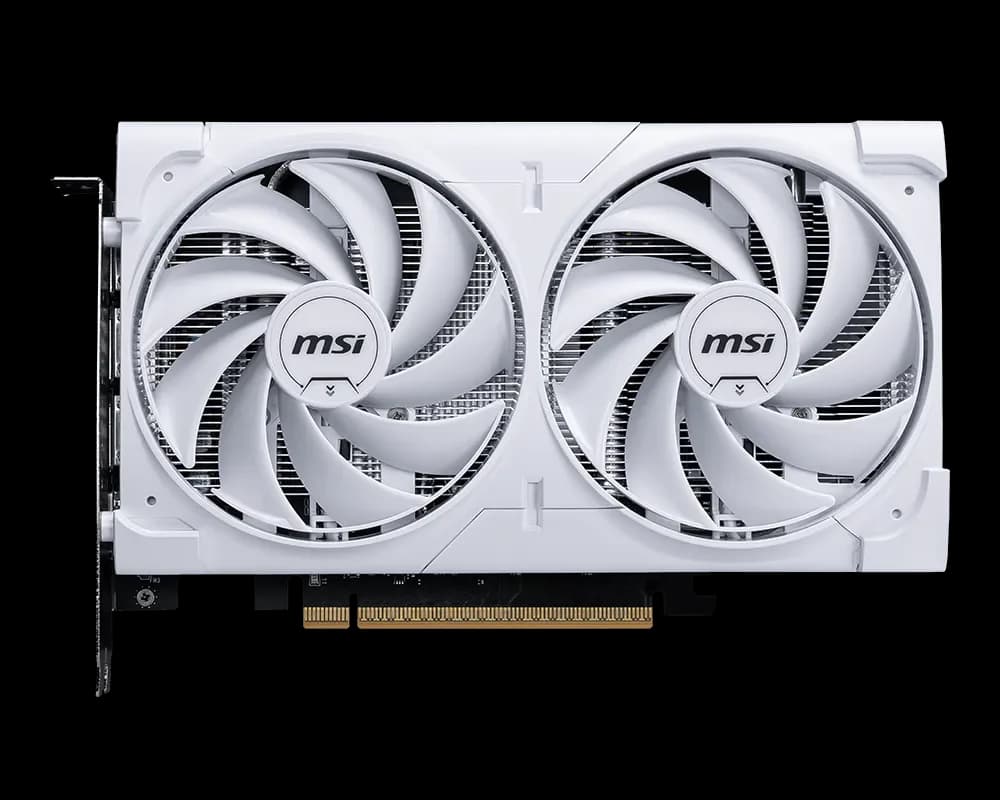

TORX FAN 5.0
TORX FAN 5.0 enhances airflow and pressure through an improved fan design. Ring arcs link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans.
HEAT PIPES
Designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

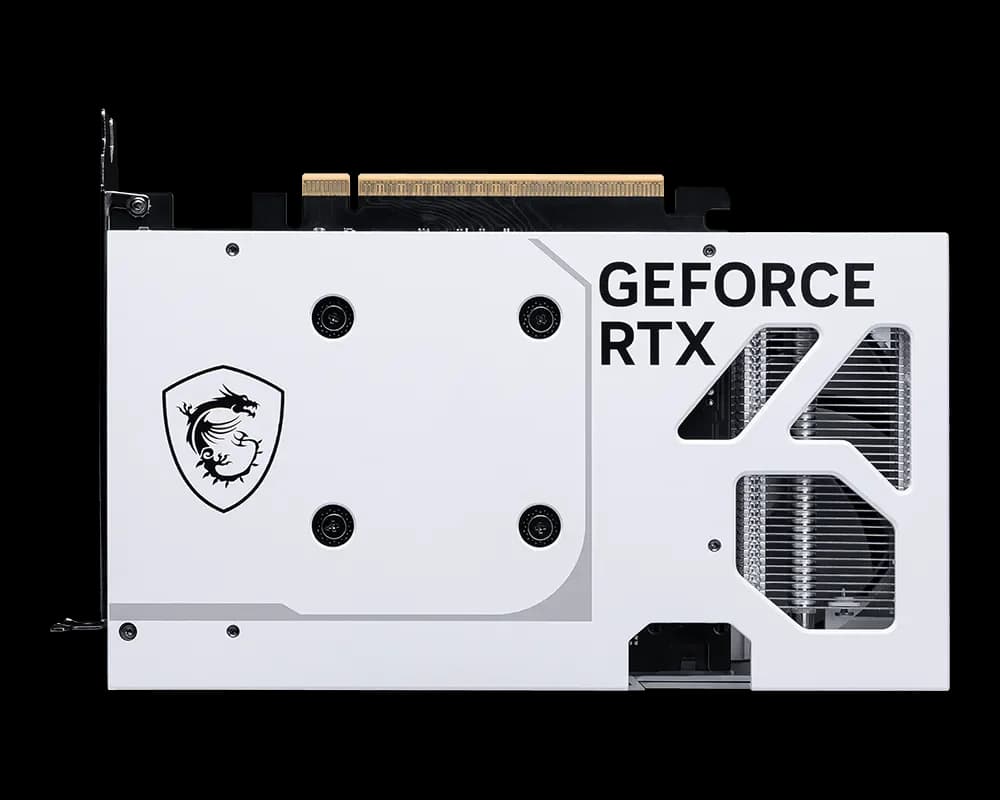

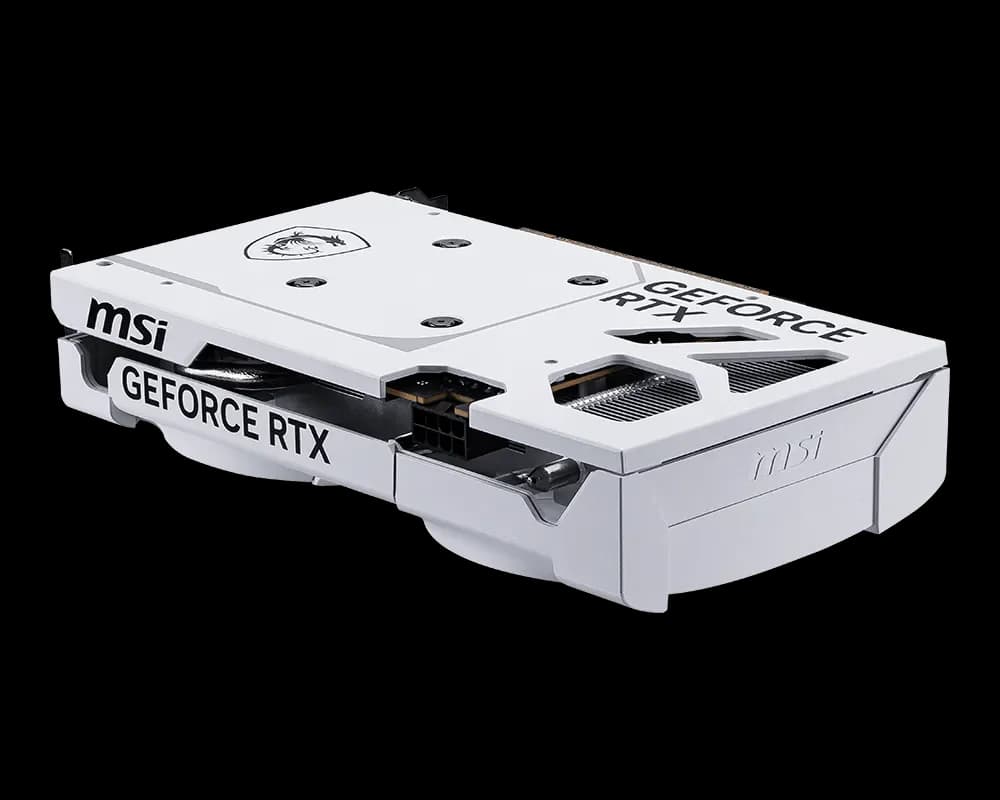

REINFORCING BACKPLATE
The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
Features:
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks: Extreme Performance: 2535 MHz (MSI Center) / Boost: 2527 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
SPECIFICATIONS

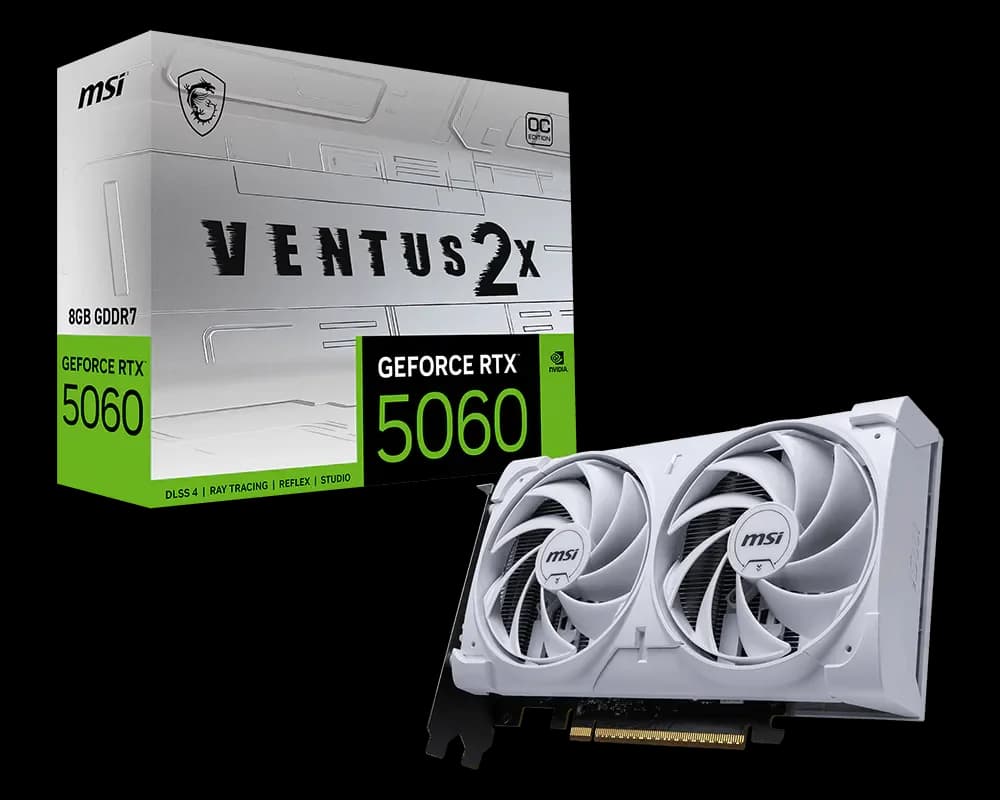

Marketing Name | GeForce RTX™ 5060 8G VENTUS 2X OC WHITE |
Model Name | G5060-8V2CW |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
Interface | PCI Express® Gen 5 x16 (uses x8) |
Core Clocks | Extreme Performance: 2535 MHz (MSI Center) |
| Boost: 2527 MHz |
CUDA® CORES | 3840 Units |
Memory Speed | 28 Gbps |
Memory | 8GB GDDR7 |
Memory Bus | 128-bit |

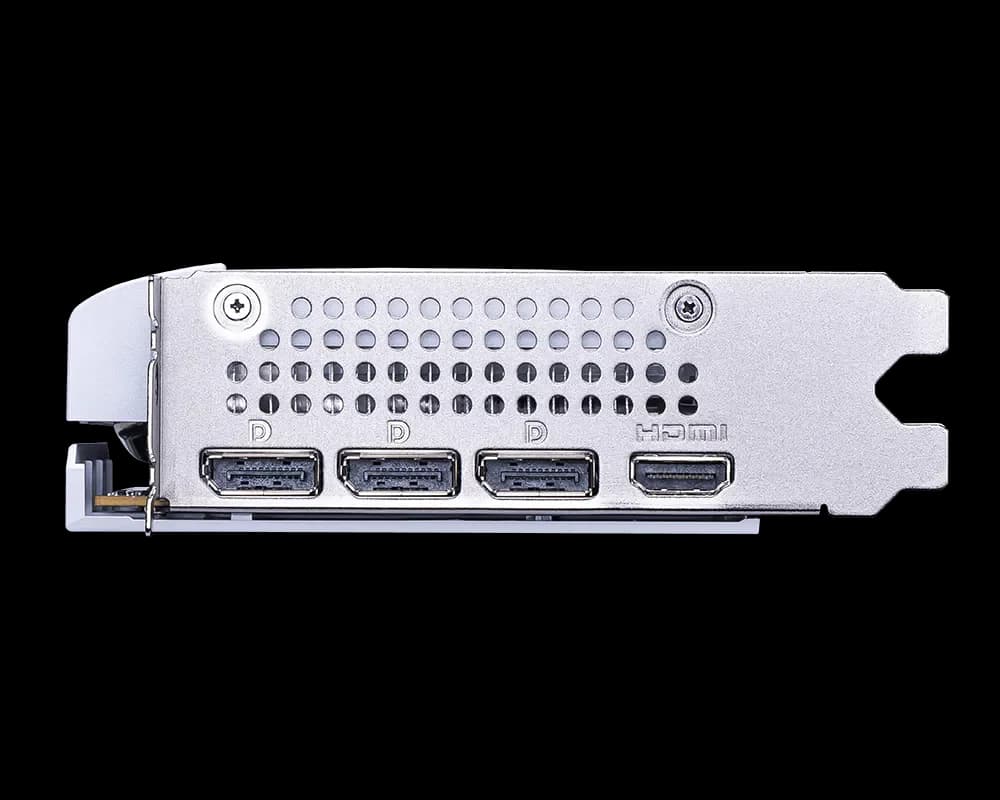

Output | DisplayPort x 3 (v2.1b) |
| HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Y |
Power consumption | 145 W |
Power connectors | 8-pin x1 |
Recommended PSU | 550 W |
Card Dimension (mm) | 197 x 120 x 41 mm |
Weight (Card / Package) | 511 g / 829 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
