Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for LGA 1200 socket
Supports DDR4 Memory 2933 MT/s (MAX)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
SPECIFICATIONS
Chipset | INTEL Z490 |
CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
Memory | 2x DDR4, Maximum Memory Capacity 64GB |
Memory Support 2933/ 2666/ 2400/ 2133 MHz | |
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU | |
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU | |
Supports Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Supports Intel® Extreme Memory Profile (XMP) | |
Onboard Graphics | 1x HDMI™ |
Support HDMI™ 1.4, maximum resolution of 4K 30Hz* | |
1x VGA | |
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz | |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
Storage | 1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |

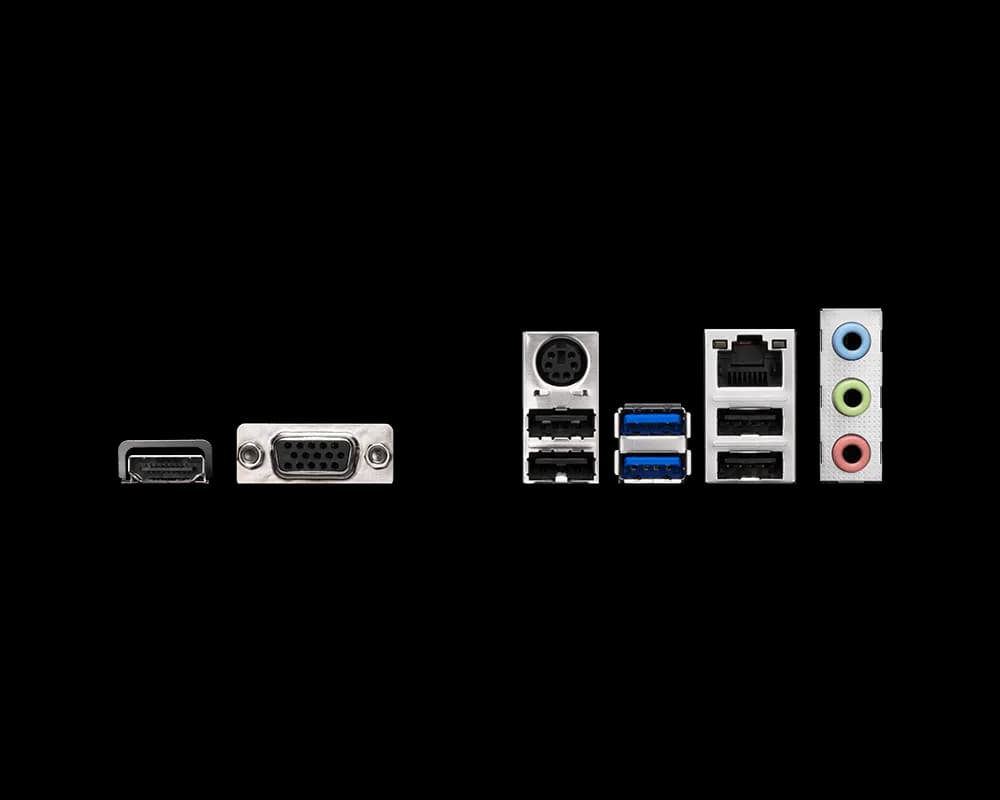

USB | 4x USB 2.0 (Rear) |
4x USB 2.0 (Front) | |
2x USB 5Gbps Type A (Rear) | |
2x USB 5Gbps Type A (Front) | |
LAN | Realtek® 8111H Gigabit LAN |
Internal IO | 1x Power Connector(ATX_PWR) |
1x Power Connector(CPU_PWR) | |
1x CPU Fan | |
2x System Fan | |
2x Front Panel (JFP) | |
1x Chassis Intrusion (JCI) | |
1x Front Audio (JAUD) | |
1x Com Port (JCOM) | |
1x RGB LED connector(JRGB) | |
1x TPM pin header(Support TPM 2.0) | |
4x USB 2.0 ports | |
2x USB 5Gbps Type A ports | |
LED FEATURE | 4x EZ Debug LED |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Info | mATX |
202mmx236mm |
