Supports up to 360 mm AIO liquid cooler and large 40 series GPU.
Supports up to 11 x system fans configuration, providing ventilation and stable performance to the whole system.
Built-in ARGB fans and control board, providing striking lighting and vivid lighting effects.
Tempered Glass Side Panel displays RGB lighting effects.
The Magnetic Dust Filter on the top vents being easily remove for cleaning.
Uni Front Panel Cable makes your DIY process easier.
LED Switch button provides intuitively control & 9 lighting effects.
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.
1-TO-6 ARGB CONTROL BOARD
1-TO-4 FAN CABLE
DIY FRIENDLY CABLES
1-to-6 ARGB CONTROL BOARD
User can intuitively control & switch 9 lighting effects through the LED switch button.
Use the 1-to-4 Fan Cable to create more possibilities for adding more fans to your system.
The uni front panel cable makes it easy for users to connect to MSI motherboards directly.
TEMPERED GLASS WINDOW
INSTA-LIGHT LOOP BUTTON
ARGB SHOWROOM

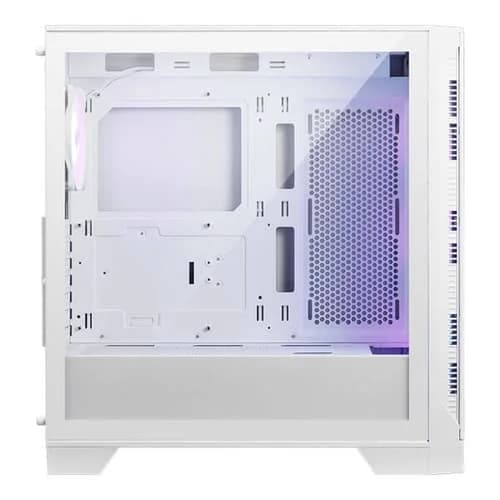

The 4mm tempered glass window offers the best durability and system accessibility.
Quickly control the lighting effects of fans that connected to control board with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.
Create your own ARGB battle station with the MAG FORGE 320R AIRFLOW, fully supported by MSI Mystic Light.
Product Name | MAG FORGE 320R AIRFLOW |
Case Form Factor | Mid Tower |
Motherboard Form Factor Support | ATX / Micro-ATX / Mini-ITX |
I/O Ports | 2 x USB 3.2 Gen 1 Type-A |
1 x Audio-out | |
1 x Mic-in | |
1 x LED Switch | |
Drive Mount Support | 1 x 2.5" |
2 x 2.5"/3.5" | |
Expansion Slots | 7 |
Maximum GPU Length | 390 mm / 15.35 inches |
Maximum GPU Height | 150 mm / 5.91 inches |
Maximum CPU Cooler Height | 160 mm / 6.29 inches |
Power Supply Support | ATX |
Maximum PSU Length | 200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation) |
Fan Size Support | Front: 3 x 120 mm / 2 x 140 mm |
Top: 3 x 120 mm / 2 x 140 mm | |
Rear: 1 x 120 mm | |
Side: 2 x 120 mm | |
PSU Shroud: 2 x 120 mm | |
Pre-installed Fan Size | Front: 3 x 120 mm |
Rear: 1 x 120 mm | |
Pre-installed Fan Type | Front: 3 x ARGB Fan |
Rear: 1 x ARGB Fan | |
Radiator Size Support | Front: 120 / 140 / 240 mm |
Top: 120 / 240 / 280 / 360 mm | |
Rear: 120 mm | |
Dimensions (DxWxH) | 472.5 x 210 x 498 mm |
18.60 x 8.26 x 19.60 inches | |
Net Weight | 7.05 kg / 15.54 lbs |
Gross Weight | 8.35 kg / 18.41 lbs |
Warranty | 1 Year |
