The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications
Chipset | Intel® B760 |
CPU Support | Supports Intel® Core™ 14th / 13th / 12th Gen Processors, Intel® Pentium® Gold & Celeron® Processors (LGA 1700) |
Memory | 2 × DDR4 DIMM, Up to 64GB |
Memory Support | DDR4 4800+(OC) / 4600+(OC) / 4400+(OC) / 4266+(OC) / 4200+(OC) / 4000+(OC) / 3800+(OC) / 3733+(OC) / 3600+(OC) / 3466+(OC) / 3400+(OC) / 3333+(OC) / 3200 / 2933 / 2666 / 2400 / 2133 MHz |
Graphics Outputs | 1 × HDMI 1.4 (4K@30Hz), 1 × VGA |
Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
Storage | 1 × M.2 PCIe 4.0 x4 / SATA (2242/2260/2280), 4 × SATA 6Gb/s |
RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 |

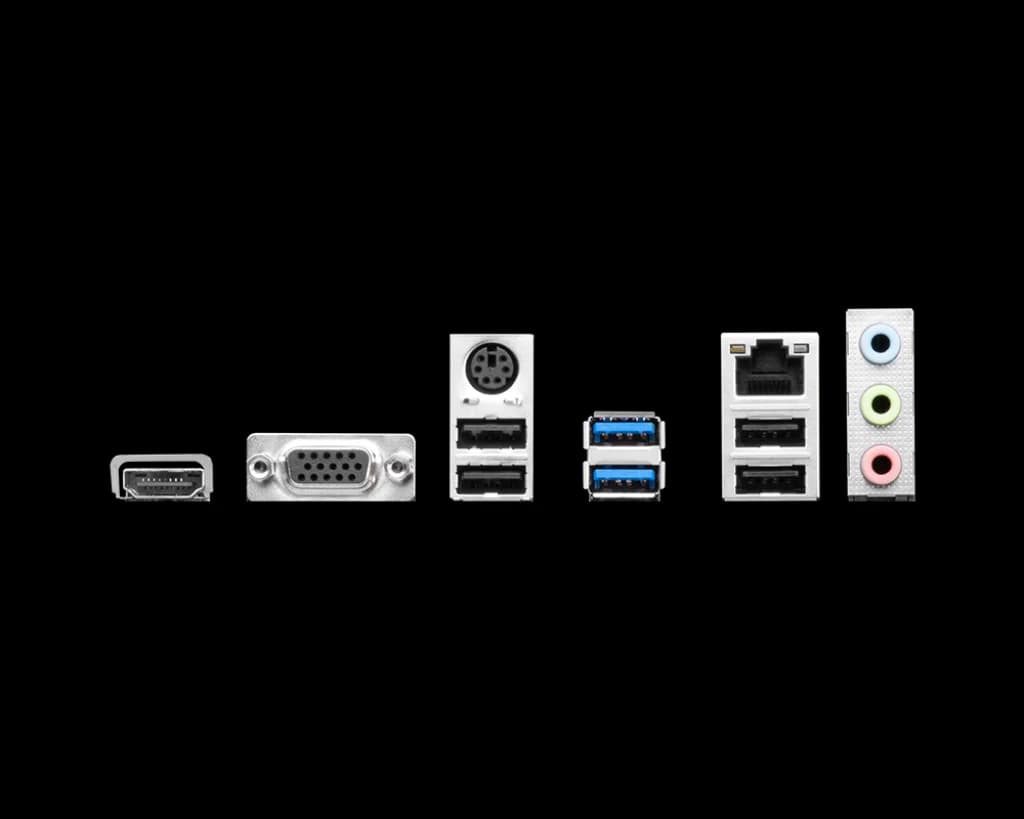

USB Ports | Rear: 4 × USB 2.0, 2 × USB 5Gbps Type-A; Front: 4 × USB 2.0, 2 × USB 5Gbps Type-A |
LAN | Realtek® RTL8111H Gigabit LAN |
Audio | Realtek® ALC897 7.1-Channel HD Audio |
Internal I/O | 24-pin ATX Power, 8-pin CPU Power, CPU Fan, 2 × System Fan, Front Panel, Chassis Intrusion, Front Audio, COM Header, RGB Header, TPM Header, USB Headers |
LED Features | 4 × EZ Debug LEDs |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | Micro-ATX (mATX) |
PCB Dimensions (L × W) | 236.16 × 200 mm (23.62 × 20.00 cm) |
Warranty | 3 Years (Manufacturer Warranty) |
