Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna

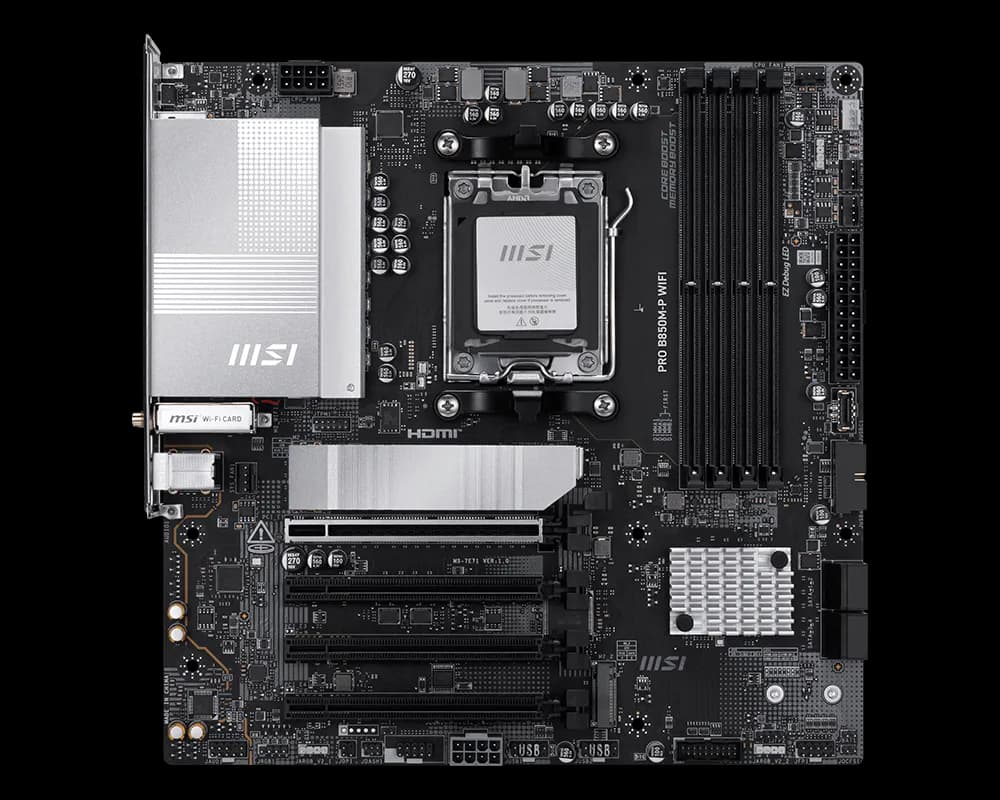

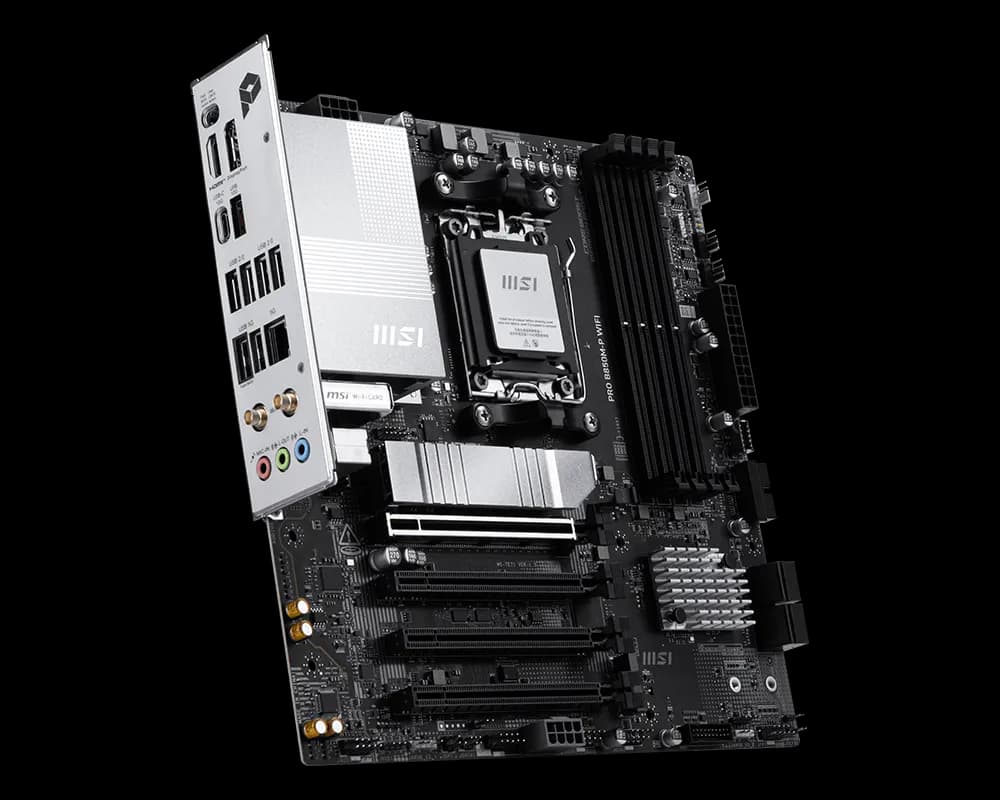

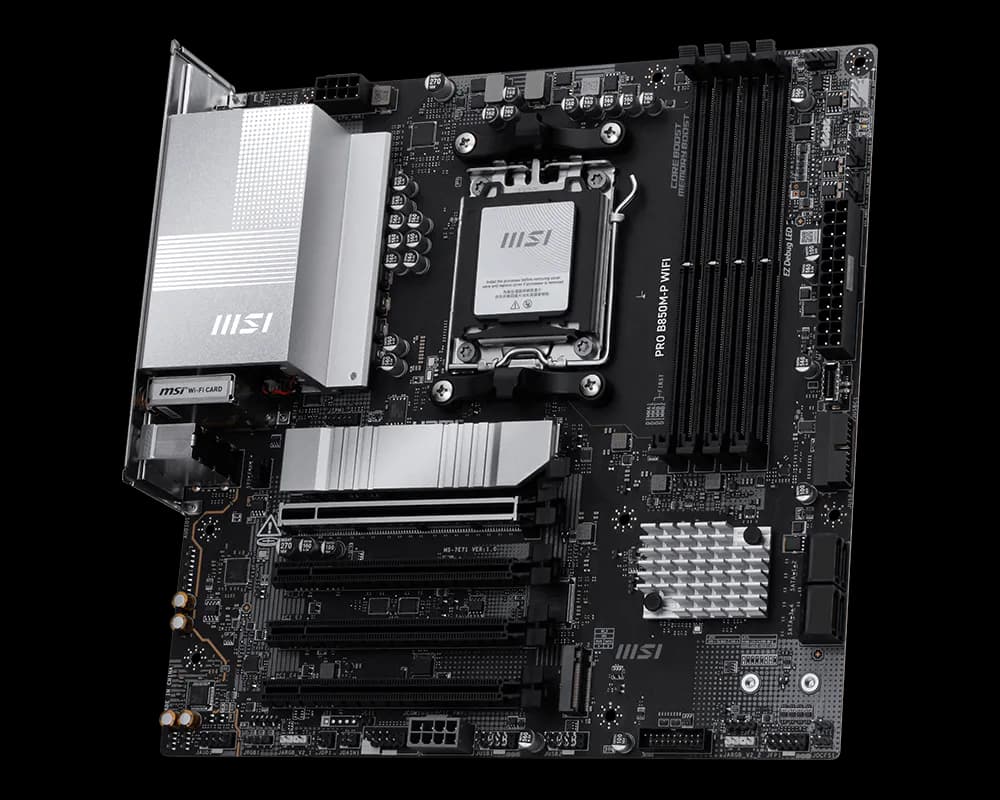

PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B850M-P WIFI is ready for the challenge of heavy-loading tasks.
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MSI's premium network solution provides incredible data transfer speed for demanding users.
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
Chipset | AMD B850 |
CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
Socket AM5 | |
Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
Ryzen™ 9000 Series Processors max. overclocking frequency: | |
• 1DPC 1R Max speed up to 8200+ MT/s | |
• 1DPC 2R Max speed up to 6400+ MT/s | |
• 2DPC 1R Max speed up to 6400+ MT/s | |
• 2DPC 2R Max speed up to 6000+ MT/s | |
Supports AMD POR Speed and JEDEC Speed | |
Supports Memory Overclocking and AMD EXPOTM | |
Supports Dual-Channel mode | |
Supports Non-ECC, Un-buffered memory | |
Supports CUDIMM, Clock Driver bypass mode only* | |
Onboard Graphics | 1x HDMI™ |
Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |
1x DisplayPort | |
Support DisplayPort 1.4, maximum resolution of 4K 60Hz* | |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
Slot | 4x PCI-E x16 slot |
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E1 slot | |
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) | |
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) | |
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) | |
Audio | Realtek® ALC897 |
7.1-Channel High Definition Audio | |
Storage | 3x M.2 |
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | |
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices | |
4x SATA 6G | |
M2_1 slot | |
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) | |
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) | |
M2_2 slot | |
• Supports up to PCIe 4.0 x4 | |
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) | |
*Please refer to the manual for M.2 SSD heatsink restrictions. | |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices | |
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors. | |

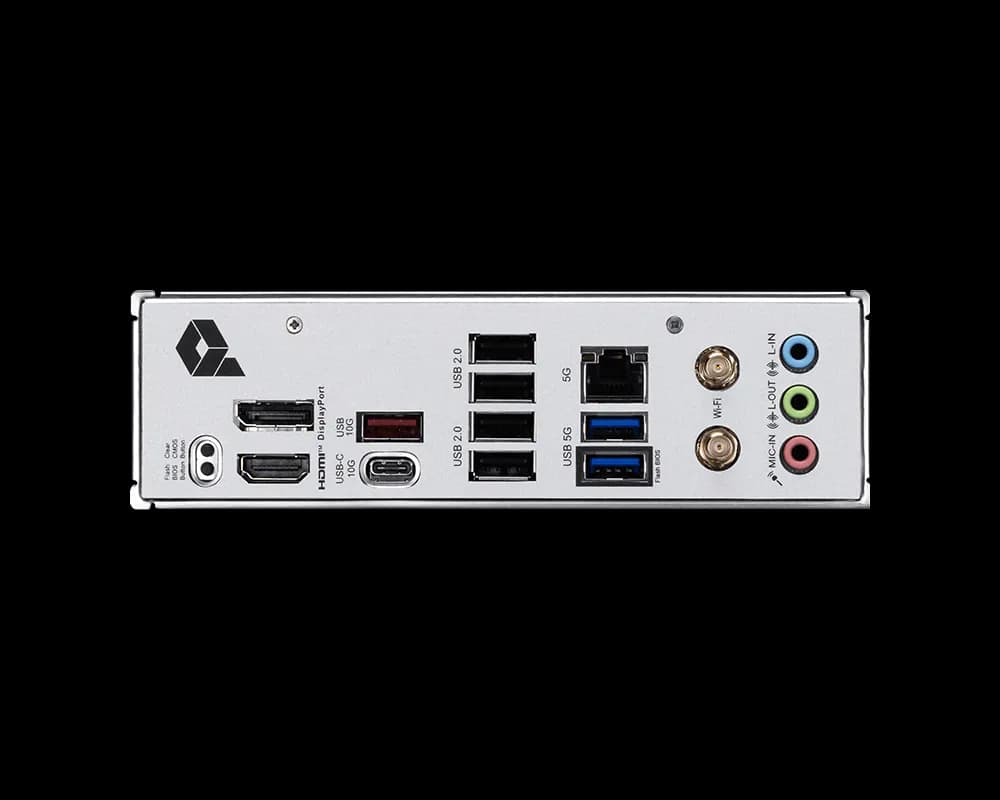

USB | 4x USB 2.0 (Rear) |
4x USB 2.0 (Front) | |
2x USB 5Gbps Type A (Rear) | |
4x USB 5Gbps Type A (Front) | |
1x USB 10Gbps Type A (Rear) | |
1x USB 10Gbps Type C (Rear) | |
1x USB 10Gbps Type C (Front) | |
LAN | Realtek® 8126VB 5G LAN |
Internal IO | 1x Power Connector(ATX_PWR) |
1x Power Connector(CPU_PWR) | |
1x Power Connector(PCIE_PWR 8pin) | |
1x CPU Fan | |
1x Combo Fan (Pump_Sys Fan) | |
3x System Fan | |
2x Front Panel (JFP) | |
1x Chassis Intrusion (JCI) | |
1x Front Audio (JAUD) | |
1x Com Port (JCOM) | |
1x Tuning Controller connector(JDASH) | |
3x Addressable V2 RGB LED connector (JARGB_V2) | |
1x RGB LED connector(JRGB) | |
1x TPM pin header(Support TPM 2.0) | |
4x USB 2.0 ports | |
4x USB 5Gbps Type A ports | |
1x USB 10Gbps Type C ports | |
WIRELESS LAN & BLUETOOTH | Wi-Fi 7 |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps | |
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | |
Supports Bluetooth® 5.4**, MLO, 4KQAM | |
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. | |
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. | |
LED FEATURE | 4x EZ Debug LED |
1x EZ Memory Detection LED | |
OPERATING SYSTEM | Support for Windows® 11 64-bit |
PCB Info | mATX |
