An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
Features
Supports GPUs up to a length of 335 mm

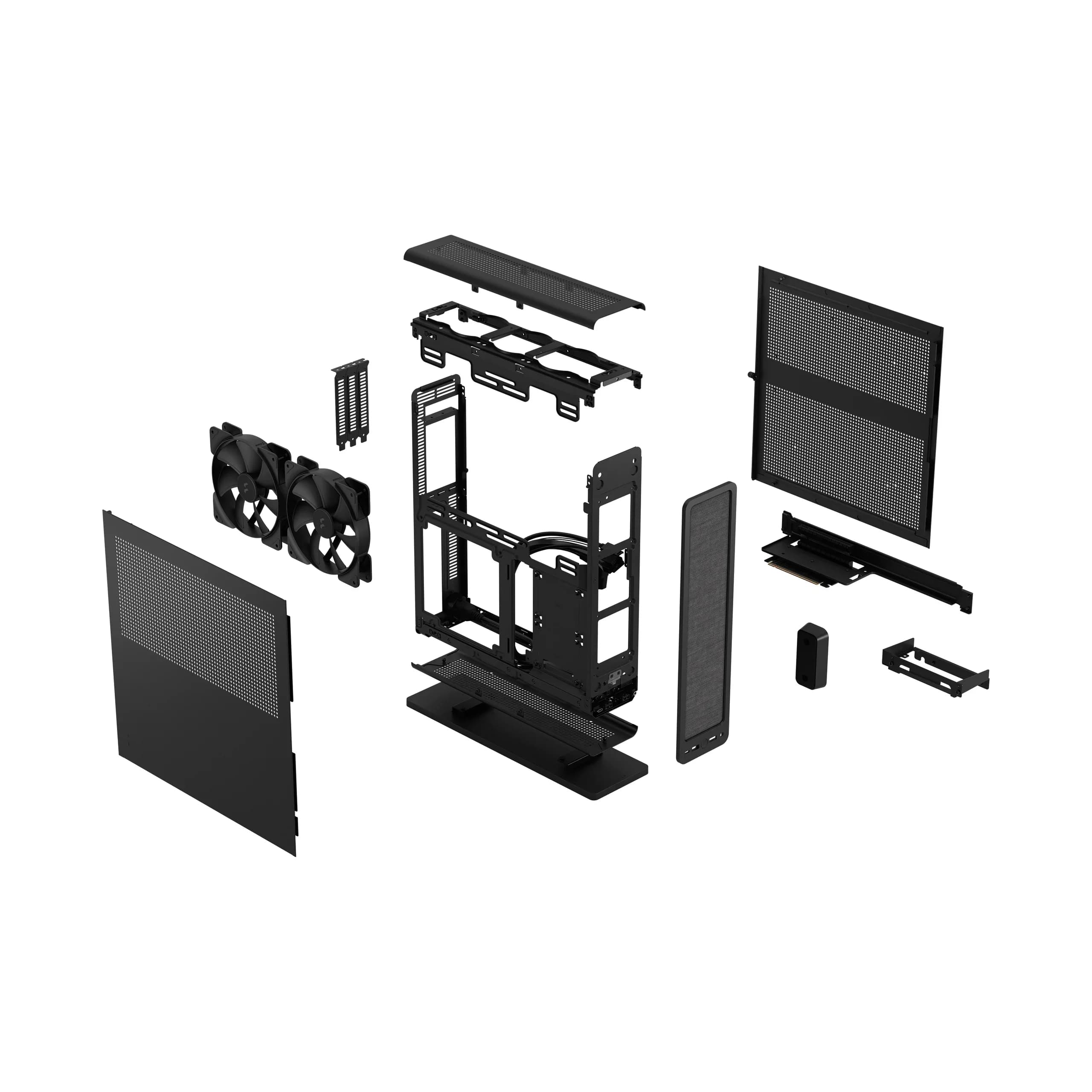

All panels are removable, enabling maximum accessibility
Available with either PCIe 4.0 or PCIe 3.0 riser card
Meticulously engineered to maximize its capability while minimizing its footprint
Small form factor case with a volume of 12.6 liters
Supports GPUs up to a length of 335 mm
Multiple feet configurations allow for both horizontal and vertical orientation
Elevate any gaming desk, workspace or entertainment area
Ventilated on all sides to maximize its cooling potential

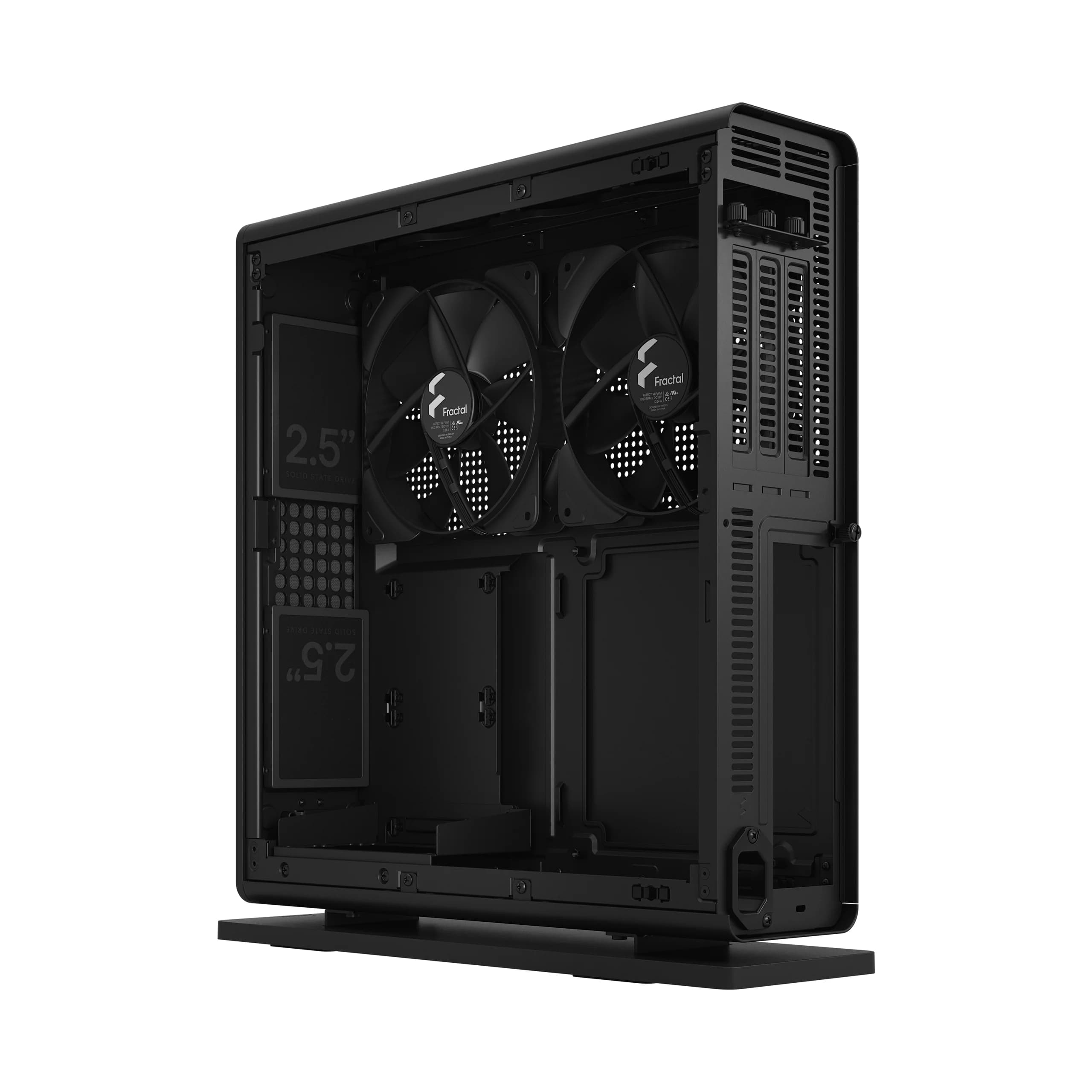

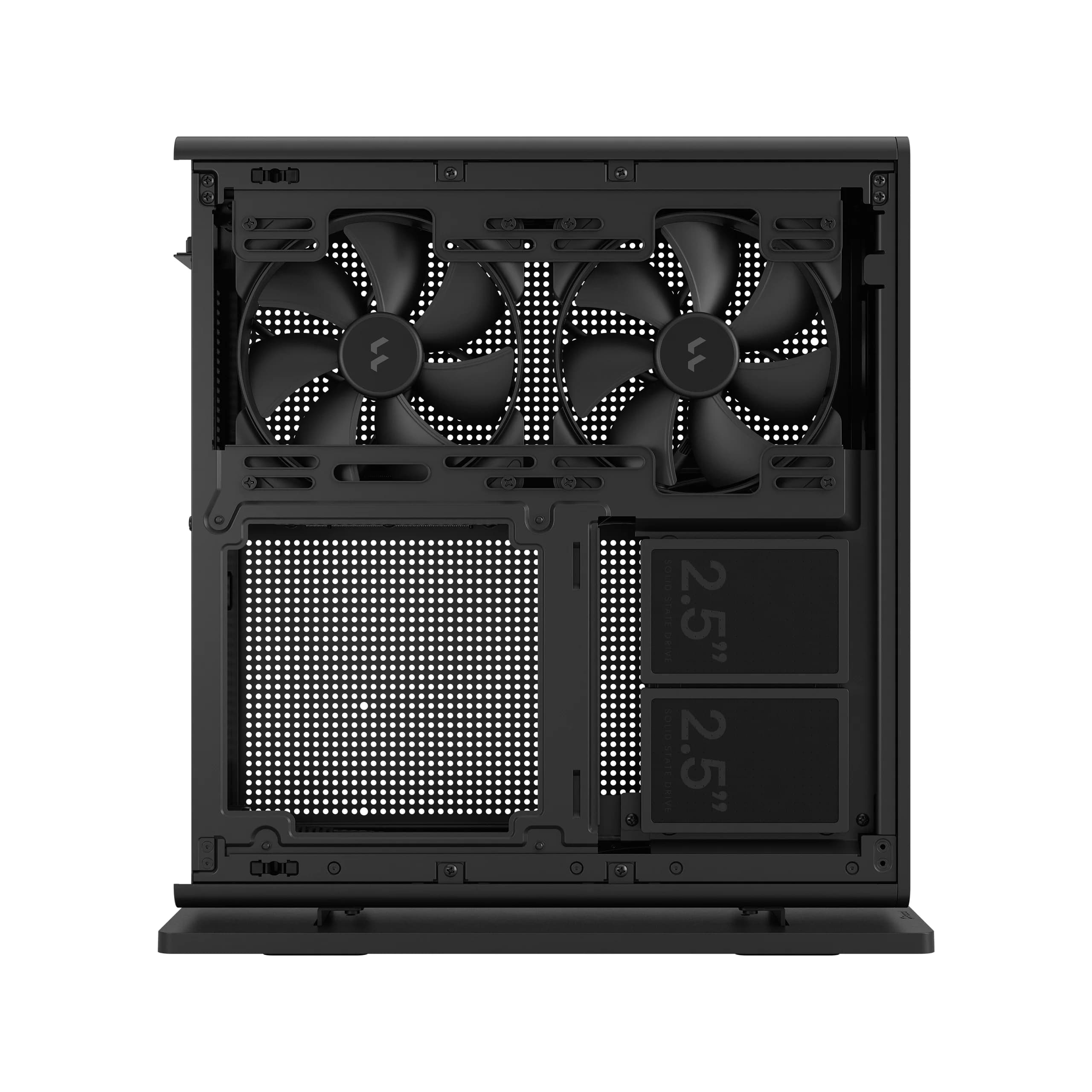

Comes with 2x 140 mm PWM Aspect fans pre-installed
Supports 2x 120/140 mm and 3x 80 mm fans
Stylish fabric front with CNC machined aluminum frame
Features a Power LED bar in front
Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
Four 2.5” drive mounts included
Specifications
Dedicated 2.5" Drive Mounts | 4 included, 4 total positions |
3.5" Drive Mounts | Not supported |
Expansion & Cooling |
Expansion Slots | 3-slot |
Total Fan Mounts | 2x 120/140 mm, 3x 80 mm |
Side Fan | 2x 120/140 mm (2x Aspect 140 mm PWM included) |
Top Fan | 3x 80 mm (not included) |
Radiator Support |
Side Radiator | 120 mm (only if GPU ≤ 175 mm); 280 mm (if no GPU is installed) |
I/O Ports | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 1x Combo Audio Jack, Power button, Power LED |
Build & Design |
Cable Routing Space | 13.8 mm (behind PSU) |
Tool-less Panels | Side panels: slide + thumbscrew lock |
Captive Thumbscrews | Side panels |
Left / Right Side Panel | Steel |
Compatibility |
Motherboard Compatibility | Mini-ITX |
PSU Type | SFX / SFX-L |
PSU Max Length | SFX-L |
GPU Max Length | 325 mm (with SSD), 335 mm (without SSD) |
GPU Max Height | 125 mm (with top fans), 137 mm (without top fans) |
GPU Max Thickness | 57 mm (with side fans), 82 mm (without side fans) |
CPU Cooler Max Height | 70 mm |
SFF-Ready GeForce GPU Support | Yes |
BIOS Note | If using Ridge PCIe 4.0 riser with PCIe 5.0 mobo+GPU, set PCIe slot to Gen4 in BIOS for stability |
Dimensions & Weight |
Vertical Case Dimensions | 374 x 110 x 395 mm |
Horizontal Case Dimensions | 360 x 375 x 115 mm |
Case Dimensions w/o Feet | 355 x 95 x 375 mm |
Net Weight | 4.3 kg |
Gross Weight | 5.5 kg |
Volume | 12.6 liters |
Other |
Warranty | 2 Years |
Package Contents | Case, Accessory Box, Manual |
SKUs |
Ridge (Standard) | Black: FD-C-RID1N-01, White: FD-C-RID1N-02 |
Ridge (PCIe 4.0) | Black: FD-C-RID1N-11, White: FD-C-RID1N-12 |
EAN | Black: 7340172703969 (Std), 7340172706090 (PCIe 4.0) |
UPC | Black: 843276103965 (Std), 843276106096 (PCIe 4.0) |
JAN | Black: 4537694302494 (Std), 4537694323123 (PCIe 4.0) |
