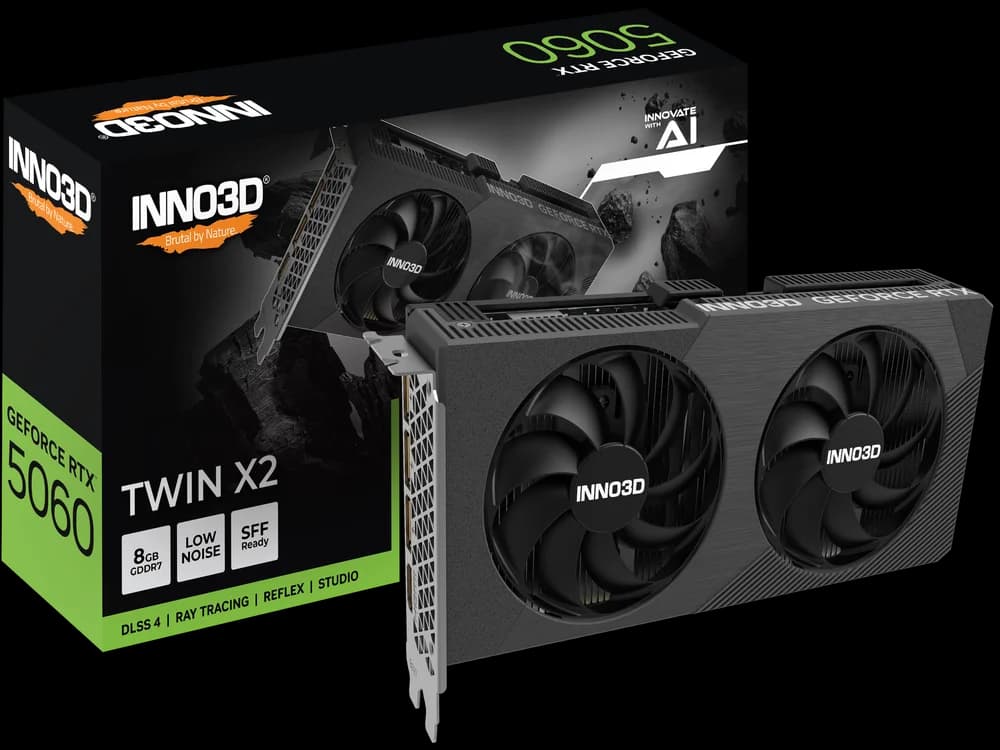

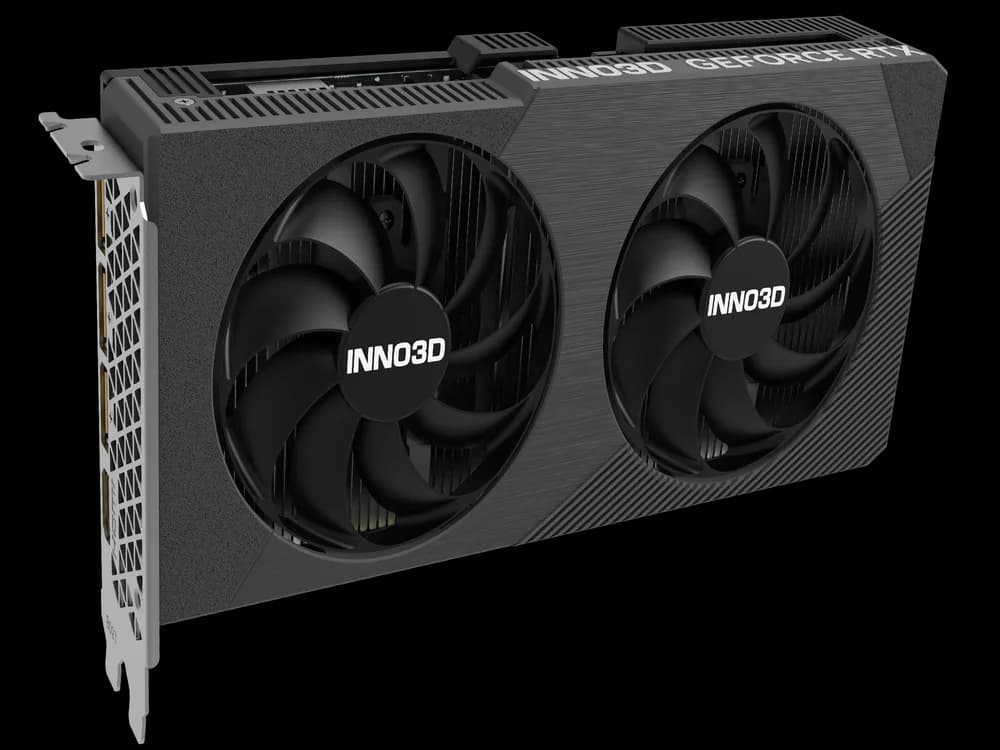

The INNO3D GeForce RTX 5060 TWIN X2 OC is a compact powerhouse designed for space-conscious enthusiasts, featuring a sleek dual-slot design that seamlessly integrates into smaller form factor builds. The TWIN X2 OC doesn't just set new standards in performance; it also captivates with its contemporary aesthetic. This GPU features 3840 CUDA cores and 8GB GDDR7 memory with a 128-bit interface, and a boost clock of 2,527MHz providing ample power for high-resolution gaming and demanding applications. Redefining the balance between style, size, and raw power, this next-generation graphics card establishes itself as the new benchmark, seeking uncompromised visual excellence in a compact package.
The NVIDIA® GeForce RTX™ 5060 Ti and RTX 5060, powered by the NVIDIA Blackwell architecture, enables game-changing AI capabilities in the latest games and apps. Multiply performance with NVIDIA DLSS 4, enjoy realistic graphics with ray tracing, and take your creativity further with NVIDIA Studio.
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
88mm scythe fan blades for optimal cooling with detachable fan blades
Efficient way of delivering the heat to the fins
Efficient way of delivering the heat to the fins
Hot air extraction and release, and PCB protection
SPECIFICATIONS
CUDA Cores | 3840 |
Boost Clock (MHz) | 2497MHz |
Base Clock (MHz) | 2280MHz |
Minimum System Power Requirement (W) | 550W |
Supplementary Power Connectors | 1x PCIe 8-pin cables |
Memory Clock | 28Gbps |
Standard Memory Config | 8GB |
Memory Interface | GDDR7 |
Memory Interface Width | 128-bit |
Memory Bandwidth (GB/sec) | 448 GB/sec |
Real-Time Ray Tracing | Yes |
Ray Tracing Cores | 4th Generation, 58 TFLOPS |
Tensor Cores | 5th Generation, 614 AI TOPS |
NVIDIA Architecture | Blackwell |
Microsoft DirectX | 12 Ultimate |
NVIDIA DLSS | 4 |
NVIDIA Ansel | Yes |
NVIDIA FreeStyle | Yes |
Bus Support | PCI Express Gen 5 |
NVIDIA ShadowPlay | Yes |
OS Certification | Windows 11, Linux, FreeBSDx86 |
NVIDIA Highlights | Yes |
NVIDIA G-SYNC™-Ready | Yes |
Game Ready Drivers | Yes |
NVIDIA Studio Drivers | Yes |
NVIDIA GPU Boost™ | Yes |
Vulkan API | 1.4 |
OpenGL | 4.6 |
NVIDIA Encoder | 1x Ninth Generation |
NVIDIA Decoder | 1x Sixth Generation |
Length | 225mm |
Height | 116mm |
Width | 41mm |
Multi Monitor | up to 4 |
Maxmium Digital Resolution | 4K at 480Hz or 8K at 165Hz with DSC |
HDCP | 2.3 |
Standard Display Connectors | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
