M-ATX sized case with ATX compatibility
Includes 2 x 140mm ARGB fans at the front and 2 x 120mm PWM fans above the PSU shroud for maximum out-of-box cooling
Fully ventilated mesh panels on the front, top, and bottom, ensuring excellent airflow
Front-mounted PSU with side-facing connector ports for easy cable management
Motherboard tray position redesigned to improve top radiator clearance and locate bottom fans directly under the GPU for better cooling
GPU anti-sag bracket with vertical and horizontal adjustment to support different GPUs
The LANCOOL 207 reimagines the traditional ATX layout,
packing powerful compatibility and superior cooling into a sleek, compact M-ATX chassis.
Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.

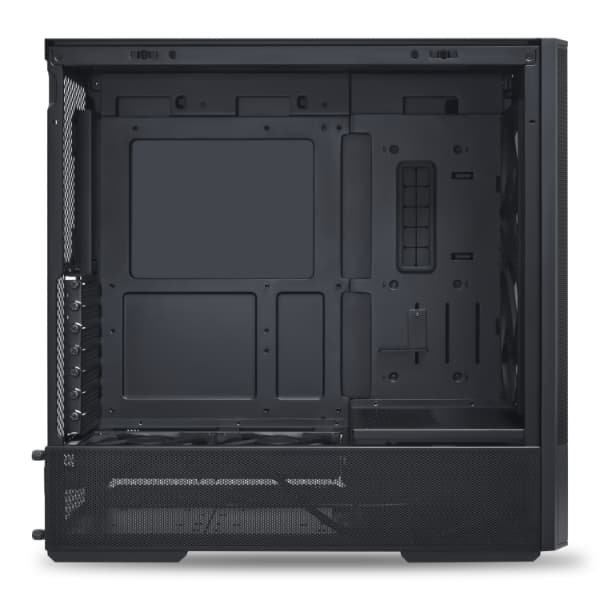

The LANCOOL 207’s unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.
The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.
SUPERIOR COOLING PERFORMANCE

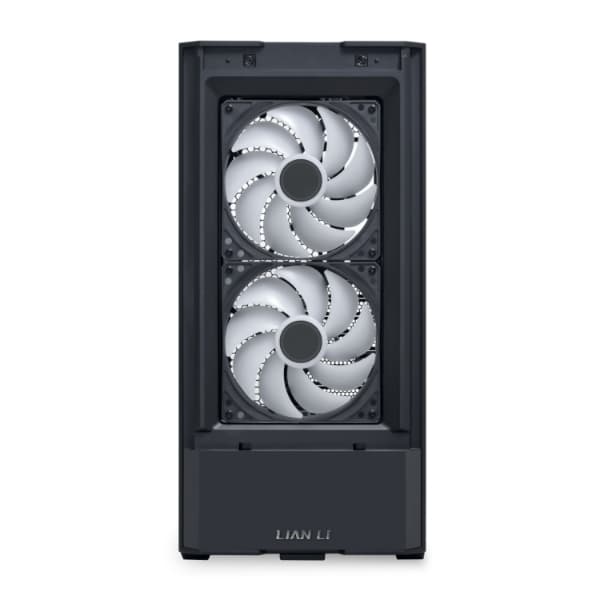

Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.
The top of the case supports a 360mm push-pull radiator configuration thanks to the offset motherboard tray design.

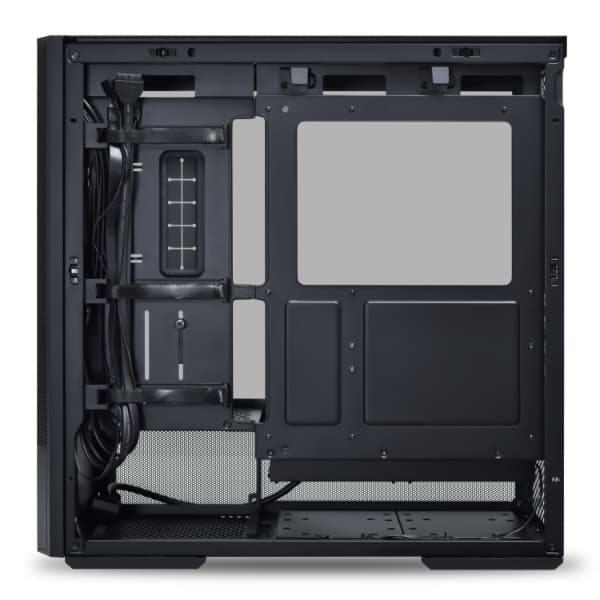

With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.
Specifications
MODEL NAME | LANCOOL 207 |
|---|
MODEL No. | LAN207RX Black |
COLOR | Black |
DIMENSION | (D) 455.6mm x (W) 219mm x (H) 456mm |
MATERIAL | Steel / 4.0mm Tempered Glass |
MOTHERBOARD SUPPORT | Standard ATX (Width Max 244mm) / Micro-ATX / Mini-ITX |
PSU SUPPORT | ATX (Under 160mm) |
INCLUDED FAN | Front: 2 x 140mm ARGB fan (450~1900 RPM / DC 12V, 0.4A / LED 5V, 0.7A / 109.3 CMF / 3.3 mm-H2O / 34.86 dB-A) |
FAN SUPPORT | Front: 140mm x 2 |
RADIATOR SUPPORT | Top: 360 / 280 / 240mm |
DRIVE SUPPORT | 2 × 3.5″ HDD or 2.5″ SSD |
GPU LENGTH CLEARANCE | 375mm (Max.) |
CPU HEIGHT CLEARANCE | 180mm (Max.) |
EXPANSION SLOTS | 7 |
I/O PORTS | USB 3.0 × 2 |
DUST FILTER | 1 × Bottom |
WARRANTY | 1 year |
