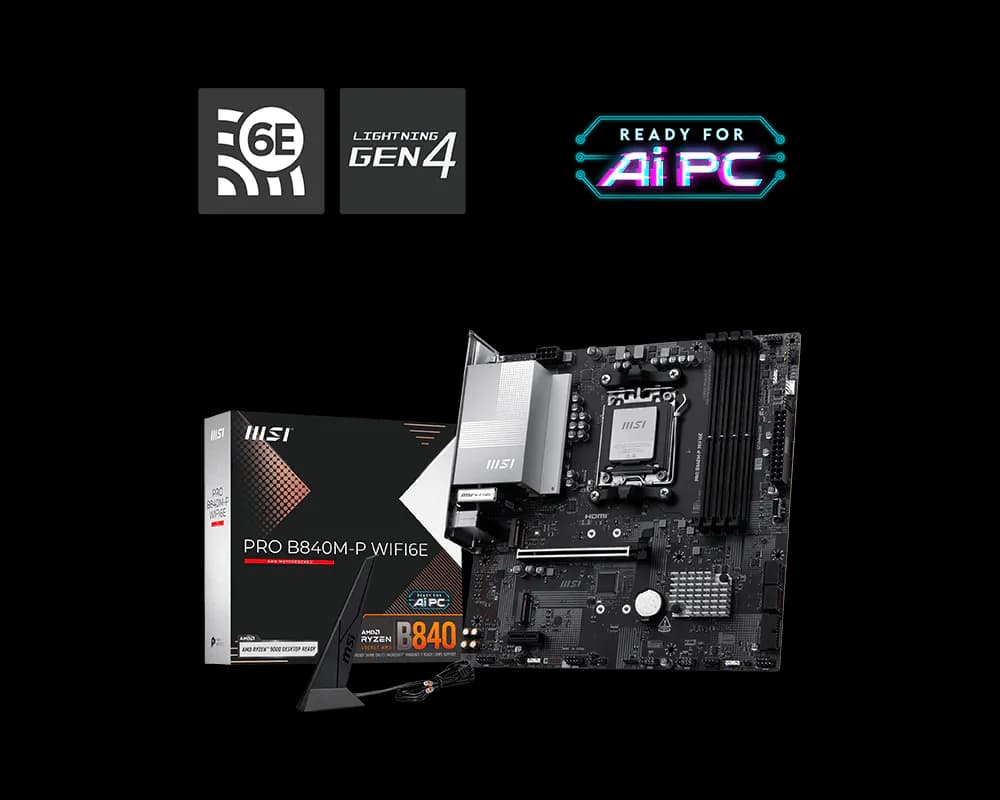

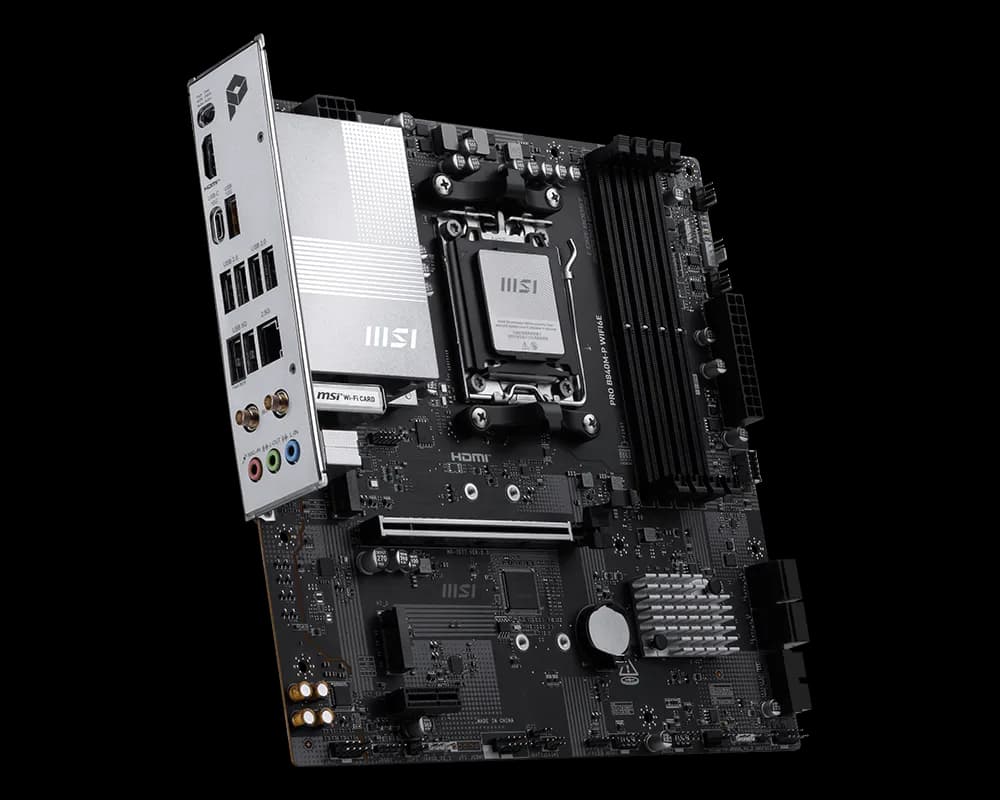

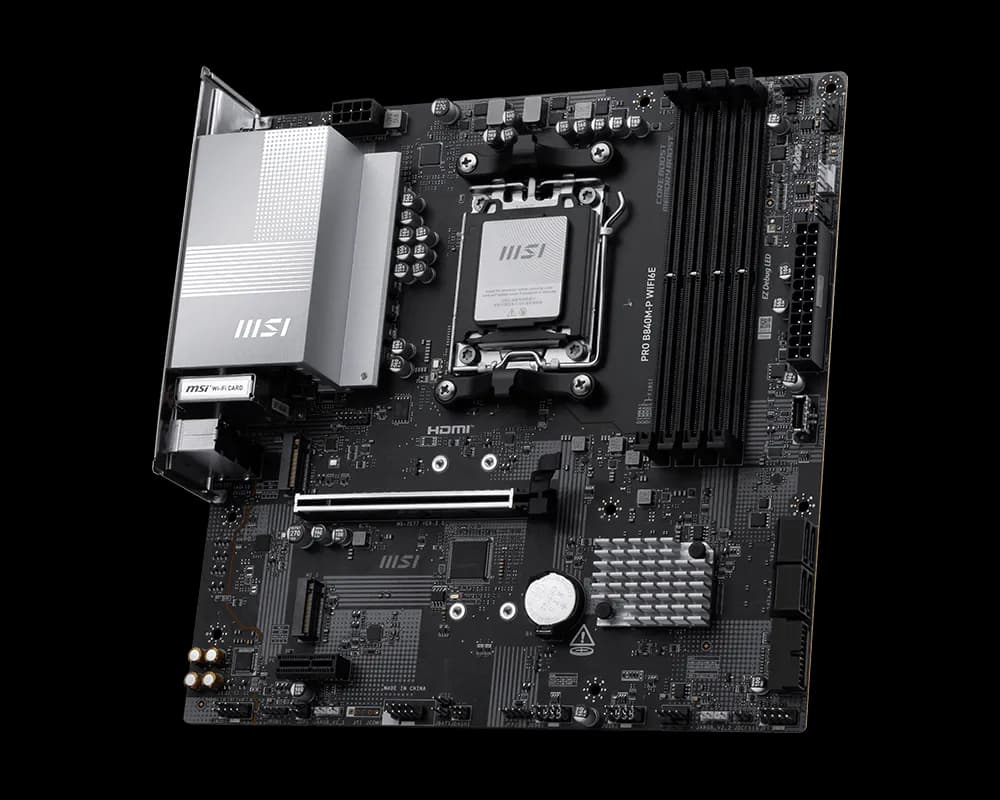

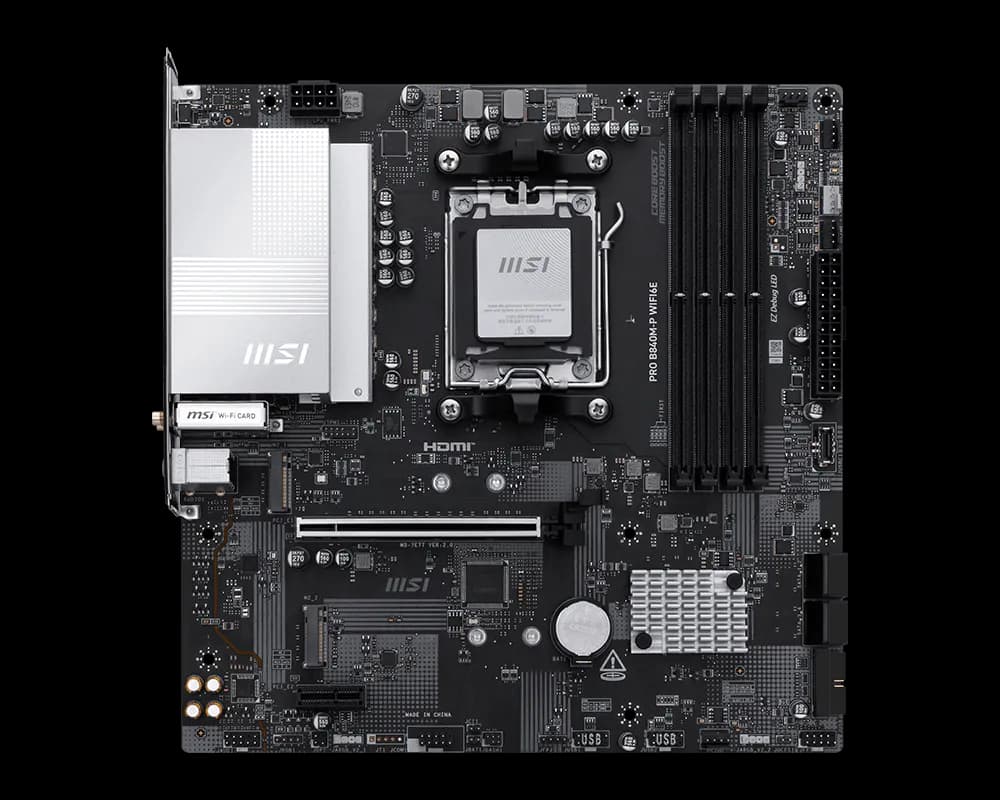

MSI Pro B840M-P WIFI6E DDR5 M-ATX Motherboard

PRO B840M-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 4.0 M.2, ready for the AMD Ryzen™ 9000 series processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

DIRECT 7+2+1 POWER DESIGN

Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B840M-P WIFI6E is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B840M-P WIFI6E is ready to deliver the world-class memory performance.

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

PRO B840M-P WIFI6E

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

• Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)

• Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper

• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads are built for high performance system and non-stop experience

• EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna

• Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2

• 2.5G LAN with Wi-Fi 6E Solution: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

  Specifications

  Chipset	AMD B840
  CPU Support	Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  Socket	AM5
  Memory	4× DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support	DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Max. Overclocking Frequency	• 1DPC 1R: Up to 8000+ MT/s
  	• 1DPC 2R: Up to 6400+ MT/s
  	• 2DPC 1R: Up to 6400+ MT/s
  	• 2DPC 2R: Up to 5600+ MT/s
  Memory Features	Supports AMD POR Speed and JEDEC Speed
  	Supports Memory Overclocking and AMD EXPO™
  	Supports Dual-Channel Mode
  	Supports Non-ECC, Un-buffered Memory
  	Supports CUDIMM (Clock Driver Bypass Mode Only)
  Onboard Graphics	1× HDMI™ (HDMI™ 2.1, up to 4K@60Hz*)
  Expansion Slots	1× PCIe 4.0 x16 (CPU)
  	1× PCIe 3.0 x1 (Chipset)
  PCIe x16 Support	PCIe 4.0 x16 (Ryzen™ 9000/7000)
  	PCIe 4.0 x8 (Ryzen™ 8700/8600/8400)
  	PCIe 4.0 x4 (Ryzen™ 8500/8300)
  Audio	Realtek® ALC897, 7.1-Channel High Definition Audio
  Storage	2× M.2 (PCIe 4.0 x4)
  	4× SATA 6Gb/s
  RAID Support	RAID 0, 1 & 10 (SATA)
  	RAID 0 & 1 (M.2 NVMe)

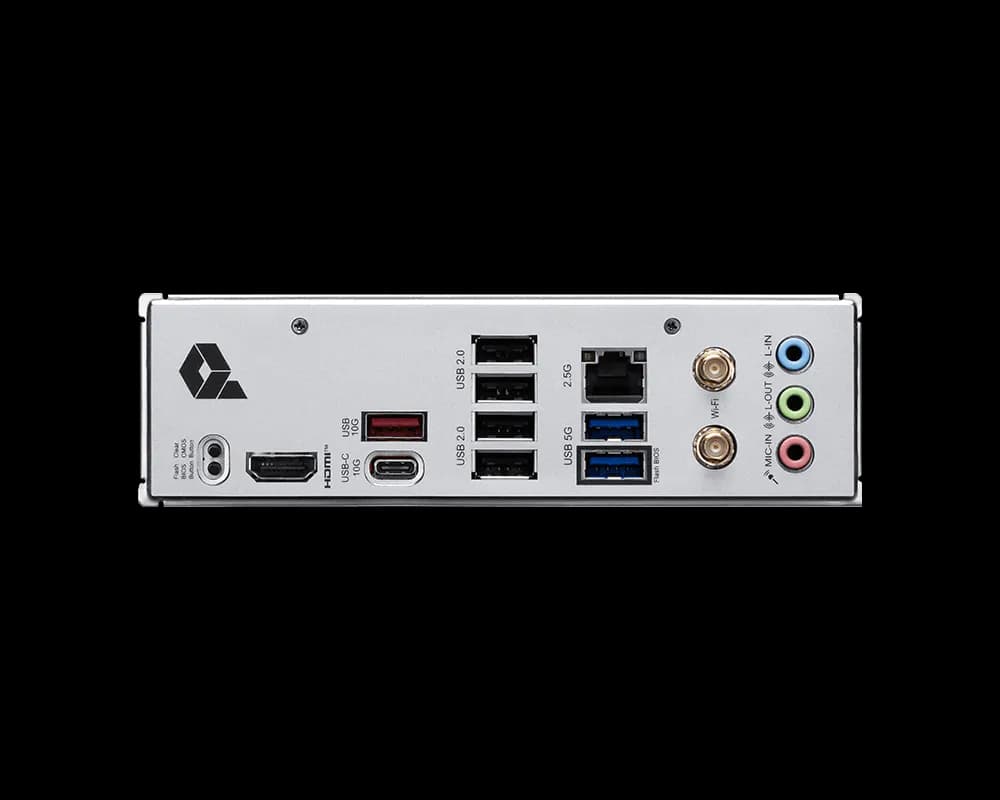

  USB Ports	Rear: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-A, 1× USB 10Gbps Type-C
  	Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C
  LAN	Realtek® 8125D 2.5Gbps LAN
  Wireless & Bluetooth	Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  	Bluetooth® 5.3
  Internal I/O	1× 24-pin ATX Power
  	1× 8-pin CPU Power
  	1× CPU Fan
  	1× Pump/System Fan
  	3× System Fan
  	2× Front Panel
  	1× Chassis Intrusion
  	1× Front Audio
  	1× COM Port
  	1× JDASH
  	3× ARGB Gen2 Headers
  	1× RGB Header
  	1× TPM Header
  	4× USB 2.0 Ports
  	2× USB 5Gbps Type-A Ports
  	1× USB 5Gbps Type-C Port
  LED Features	4× EZ Debug LED
  	1× EZ Memory Detection LED
  Operating System	Windows® 11 64-bit
  Form Factor	Micro-ATX (mATX)
  PCB Dimensions	243.84 × 243.84 mm
  Estimated Motherboard Weight	Approx. 0.75–0.90 kg*
  Estimated Package Weight	Approx. 1.20–1.40 kg*
